GSA.8859 4dBi 5.9GHz Adhesive Mount DSRC Miniature Antenna


High Efficiency and High Peak Gain DSRC Antenna
5850MHz to 5925MHz
IP67 Rated for External Use
Adhesive Mount on Plastic or Glass
1M Low Loss CFD200 Cable with SMA(M) Connector
Dimensions: 36*30*10mm
RoHS & REACH Compliant

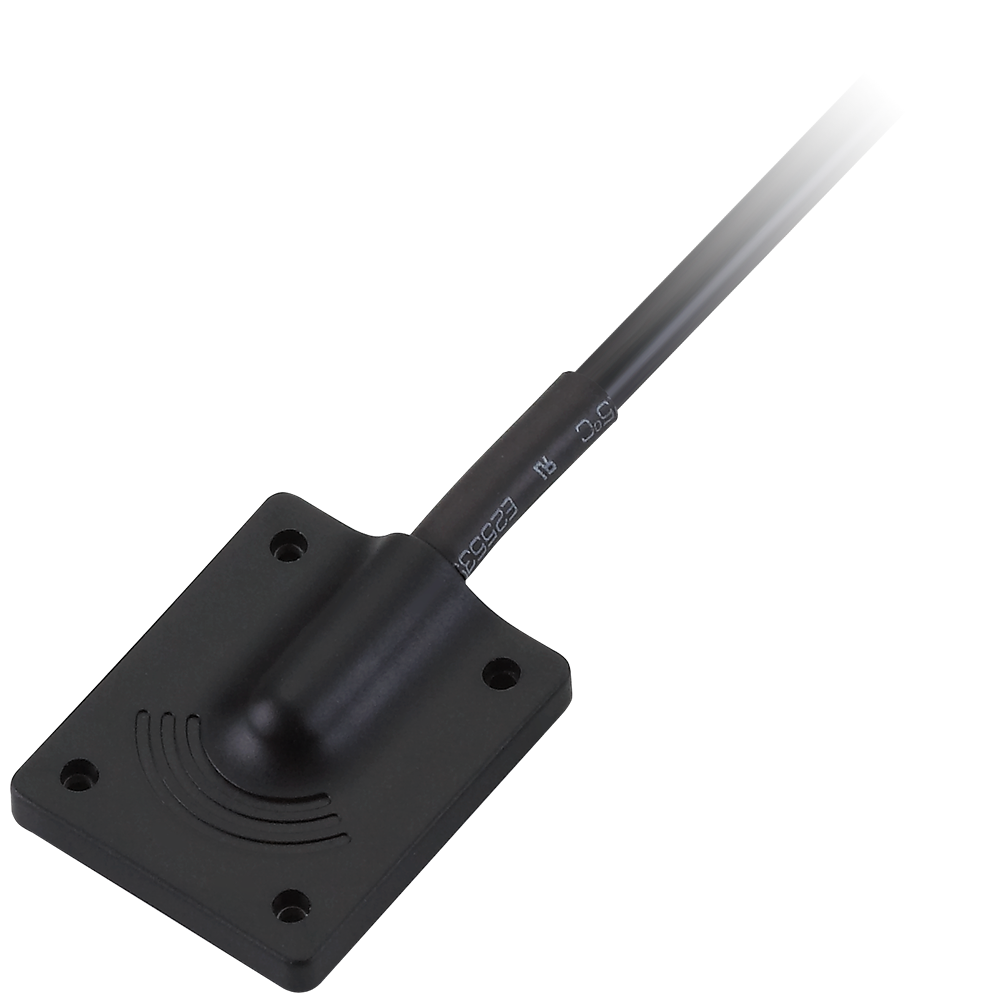

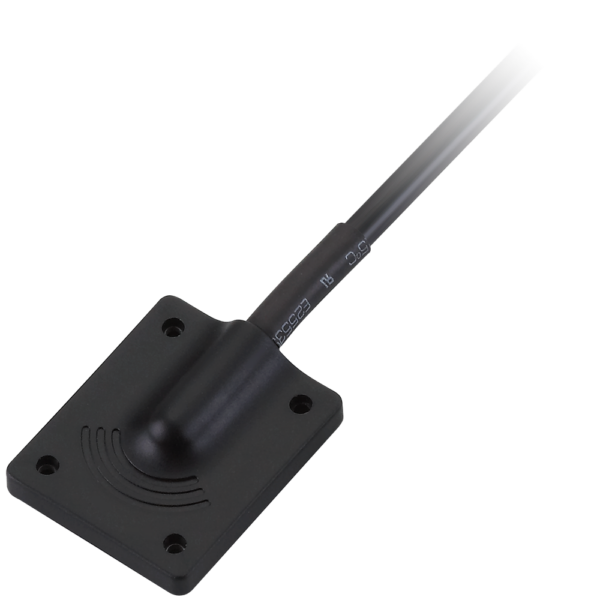

Image GSA.8859.A.105111


GSA.8859 4dBi 5.9GHz Adhesive Mount DSRC Miniature Antenna

5.9GHz Adhesive Mount DSRC Miniature Antenna

The GSA.8859 is an external adhesive mount DSRC antenna for 5850-5925MHz. Primarily designated for vehicle safety applications, DSRC offers high-speed, low-latency wireless communication over short distances.

The GSA.8859 at only 10mm in height and 30 x 36mm is a very compact size enabling flexibility of integration. It can be mounted on or plastic surfaces easily with the double-sided adhesive. The antenna features peak gain at 4.14 dBi on glass and 3.24 dBi on 2mm plastic. The compact PP enclosure, at just 36*30*10mm, makes it suitable for use where larger antennas cannot be installed. The GSA.8859 is also IP67 rated making suitable for use in harsh outdoor environments. Provided with 1m low loss CFD200 cable and SMA(M) connector as standard, which can be customized upon request.

For support on how to integrate and test this antenna within your application, or for sample requests, contact your regional Taoglas Customer Services Team.

Technical Specification
Name Value
Antenna Type External Antennas, C-V2X
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 5900MHz
Connector Polarity None
Cable Length (mm) 1000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 2.64
Length (mm) 36
Width (mm) 30
Height (mm) 10
Weight (g) 42
