Hercules MA106 2in1 GPS/GLONASS/Galileo & 3G/2G Permanent Mount Antenna Ø48*29mm

MA106.C.LB.001

Hercules Permanent Mount GPS/GLONASS/Galileo and Cellular Antenna
GPS 1575MHz/GLONASS/GALILEO 1602MHz – Total Gain 28dB typ at 3.0V
GSM-CDMA-Cellular – Peak Gain 1dBi
GPS/GLONASS/GALILEO – 3m RG174 – SMA(M)
GSM-CDMA-Cellular – 3m CFD-200 – SMA(M)
No Ground Plane Required
IP65 Rated Enclosure
Dimensions: 48*48*29mm
RoHS & REACH Compliant

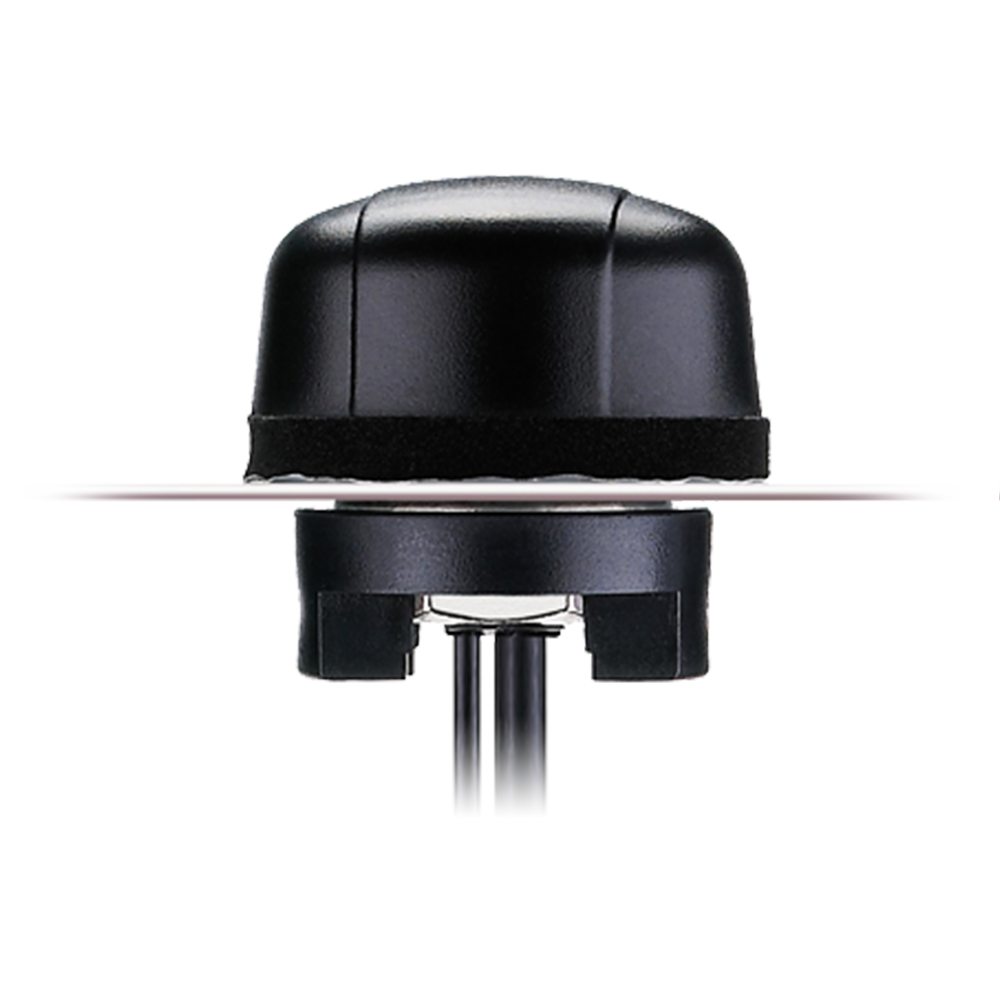

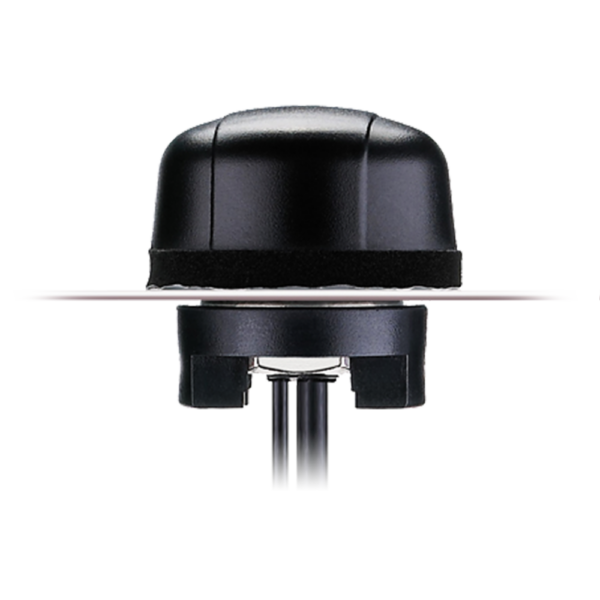

Image MA106.C.LB.001

MA106.C.LB.001

Hercules MA106 2in1 GPS/GLONASS/Galileo & 3G/2G Permanent Mount Antenna Ø48*29mm

Overview

The MA106.C GPS/GLONASS/Galileo and Cellular Combination Hercules Antenna is the newest upgraded model of Taoglas’ popular Hercules series. It is a combination 2in1 high performance GPS/GLONASS/GALILEO and penta-band cellular antenna solution for the most reliable asset tracking and remote monitoring. The GPS/GLONASS/GALILEO antenna and LNA have been optimized to provide excellent performance. The penta-band cellular antenna delivers high efficiency at all common 3G/2G bands worldwide, making it ideal for use on GSM, GPRS, and CDMA systems. Durable UV and robust PC housing is IP65 rated, resistant to vandalism and direct attack. At only 29 mm in height, it complies with the latest EU height restriction directives for roof-mounted objects, with a diameter of 49 mm. It is designed to be covert and not catch on tree branches. The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside. A waterproof closed cell foam seal under the base adheres to the surface it is mounted on and can stretch to fit curved surfaces typical on vehicles, preventing water from penetrating any mounting hole.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 824 - 2170MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 3.4
Length (mm) 49.2
Width (mm) 49.2
Height (mm) 28.5
Weight (g) 267
