White Hercules MA510 2-in-1 2.4/5.8 Dual Band Wi-Fi MIMO Permanent Mount Antenna

MA510.C.W.CG.002

Hercules Screw Mount MIMO Dual-Band 2.4/5.8GHz
2.4-2.5GHz –Peak Gain Gain 3.9dBi, Efficiency 60%
4.8-5.8GHz –Peak Gain Gain 3dBi, Efficiency 40%
UV and vandal-resistant PC housing
Cables: 1m RG-316
Connectors: RP-SMA(M)
No Ground Plane Required
High Isolation Between Antenna Elements
Dimensions: 49 * 49 * 28.5mm
IP65 Rated Enclosure
(Also available in Black)

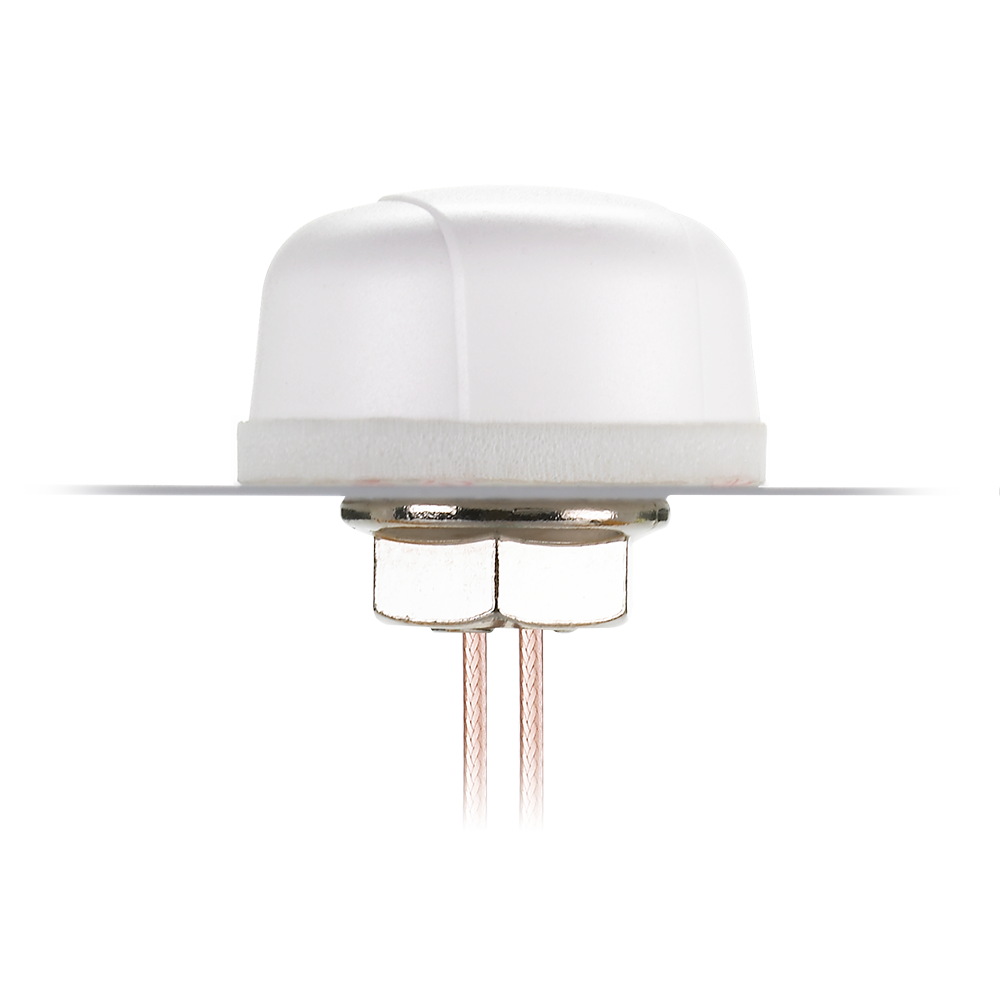

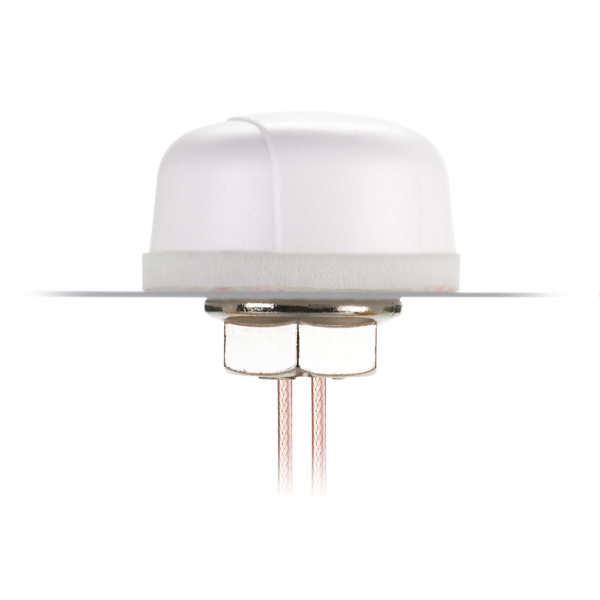

Image MA510.C.W.CG.002

MA510.C.W.CG.002

White Hercules MA510 2-in-1 2.4/5.8 Dual Band Wi-Fi MIMO Permanent Mount Antenna

Overview

The MIMO communication system has been one of the most promising technologies, well suited for high data rate communication. A MIMO (Multiple-Input-Multiple-Output) system use at least two antenna structures and is more advantageous than single-input single-output (SISO) in an aspect of increasing channel capacity and reducing transmitting power. MIMO antennas should have a compact structure, high radiation efficiency, low envelope correlation, and high isolation between the signal ports. In small structures (antennas spaced closely), the application of MIMO technology has been restricted by a high degree of coupling and spatial correlation between antenna elements due to the limited available space. The isolation between antennas become critical as it can deteriorate the system performance and decreases channel capacity.

The Hercules MA510 MIMO antenna is low profile, heavy-duty, external M2M antenna for use, transportation and remote monitoring applications. This unique omnidirectional antenna provides high efficiency and high isolation between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi 6. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. The two antenna elements are vertically polarized.

For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 29mm high, the Hercules MA510 MIMO antenna provides an unobtrusive, robust, rugged, IP65 rated antenna that is durable even in extreme environments. Also available in black.

Technical Specification
Name Value
Antenna Type External Antennas, Combination, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type RP-SMA
Cable Type RG-316
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4 / 5.8GHz
Connector Polarity Reverse
Cable Length (mm) 1000
Packaging Box, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2.9
Length (mm) 47.7
Width (mm) 47.8
Height (mm) 28.5
Weight (g) 134
