ISMP.868.35.6.A.02 ISM 868MHz Patch Antenna (35*35*6mm)

ISMP.868.35.6.A.02

ISM 868MHz band
2.17 peak gain on 70x70mm ground plane
35x35x6mm Ceramic patch
Pin Mount
RoHS Compliant

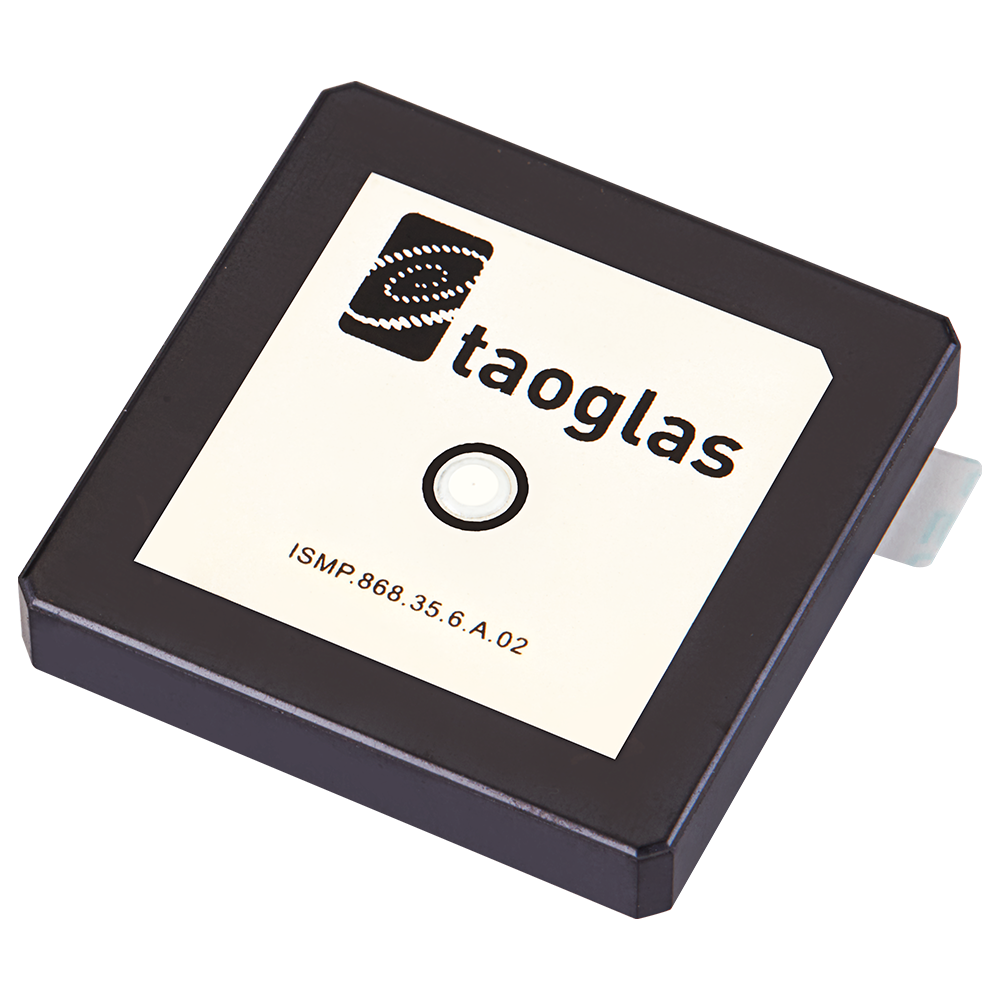

Image ISMP.868.35.6.A.02

ISMP.868.35.6.A.02

ISMP.868.35.6.A.02 ISM 868MHz Patch Antenna (35*35*6mm)

Overview
868 ISM Antenna for Remote Instrumentation and RFID Applications

ISMP.868 is an 868 ISM Antenna for remote instrumentation and RFID applications. It is a low-profile pin-mount ceramic patch antenna operating at 868MHz. At just 35x35mm, it provides a high-performing antenna solution using minimum board space.

When mounted on a 70x70mm ground plane, ISMP.868 provides an efficiency of over 65% and a peak gain of 2.17 dBi. It is also right-hand circularly polarized, with an excellent axial ratio of less than 3 dB, providing maximum link reliability. These characteristics make it a perfect choice for compact fixed wireless applications operating on the 868 MHz ISM band, including remote instrumentation and RFID applications. It also provides excellent performance on Low-Power Wide-Area Networks (LPWAN) operating at 868 MHz, such as LoRa and Sigfox, allowing users to take advantage of the low-power, long-range communications offered by these networks.

ISMP.868 can be custom-tuned for specific device environments, subject to NRE and MOQ. Contact your regional Taoglas sales office for these services as well as additional support with device integration.

Technical Specification
Name Value
RoHS Yes
Antenna Type mmWave
Mechanical Style Patch
Gain 2.17
Impedance 50
Minimum Operating Temperature -10°C
Maximum Operating Temperature 60°C
Mounting Style Pin/adhesive
Termination Style Pin
Antenna Connector Type None
Cable Type None
Connector Body Style Straight
Polarity RHCP
Frequency Range 868MHz
Connector Polarity Normal
Packaging PE Bag, Carton
VSWR 2:1
Length (mm) 35
Width (mm) 35
Height (mm) 6
Weight (g) 34.3

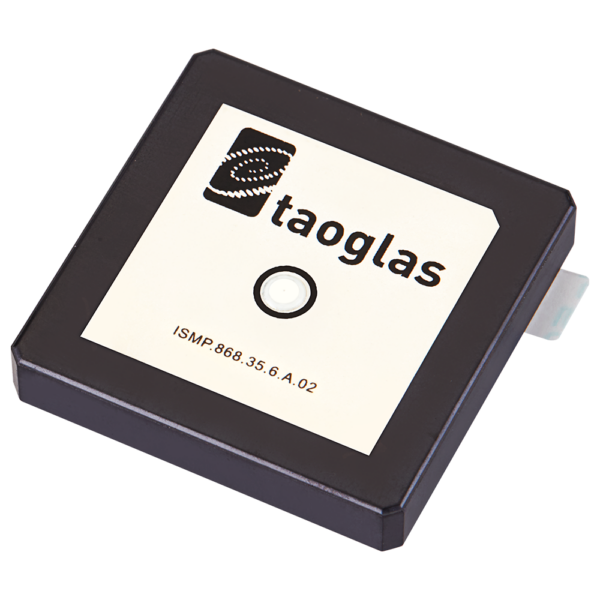

Image ISMP.868.35.6.A.02
