LBP.2450.X.A.30 LTCC Band Pass Filter for 2450MHz 1.6×0.8×0.6mm, Bandwidth 100MHz

LBP.2450.X.A.30

Center Frequency 2450 MHz
Low Insertion Loss
High Attenuation
Ultra-Compact, Low Profile SMT Package

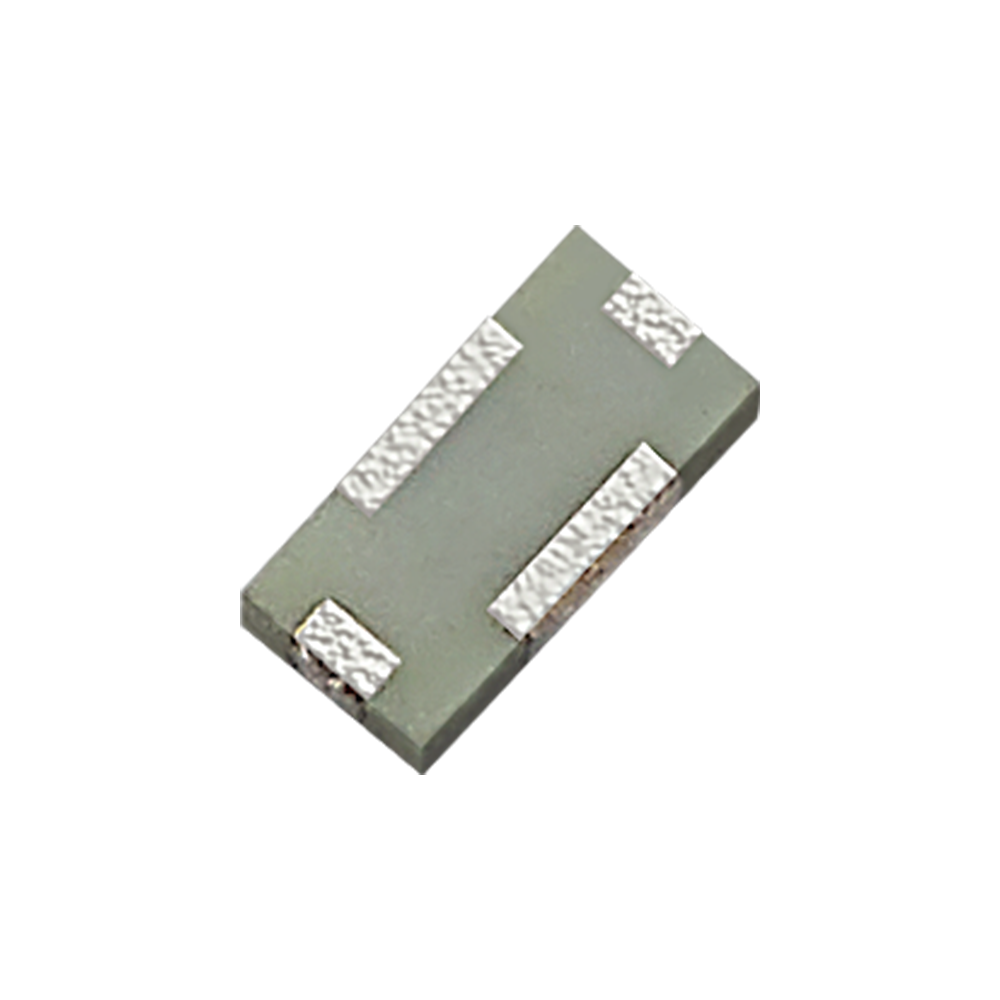

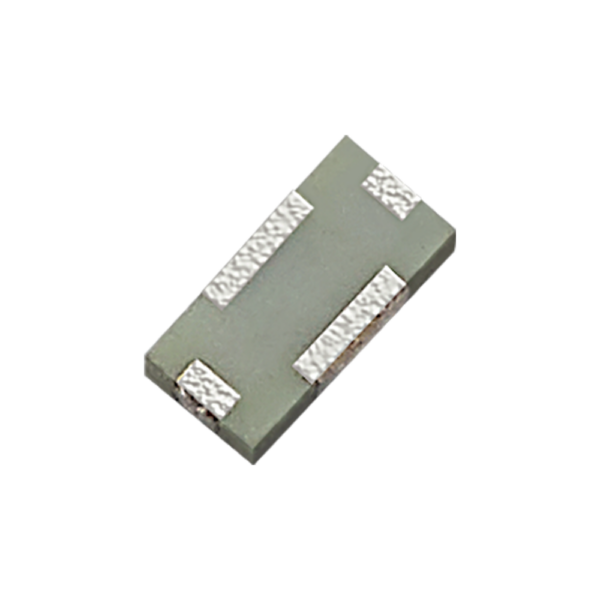

Image LBP.2450.X.A.30

LBP.2450.X.A.30

LBP.2450.X.A.30 LTCC Band Pass Filter for 2450MHz 1.6×0.8×0.6mm, Bandwidth 100MHz

Overview

Taoglas are utilizing their deep understanding of the RF component design and manufacturing process to provide high-quality, small-form-factor, cost-effective and easy to implement RF filters. The Taoglas Filters Division will feature a range of off-the-shelf filters for a variety of applications, including filters for emerging license-free bands used for IoT and for GPS L1/L2 and L1/L5 applications. We can also work with customers to develop bespoke filter solutions. Taoglas LTCC filters are designed to be used in wireless transmitters or receivers.

They feature low insertion loss and provide good rejection of unwanted signals at harmonic frequencies for improved system performance. The product is manufactured as a multi-layer monolithic ceramic structure that provides high reliability in a lightweight, low-profile, industrial standard SMT package. These small part sizes allow for high-density PCB layout, provide excellent solderability, and allow for easy visual inspection capability. The LBP.2450.X.A.30 is a standard Taoglas product but can be customized for specific customer needs. For more information please contact your regional sales office

Technical Specification
Name Value
Series LBP
Frequency 2400-2500MHz
Bandwidth 100MHz
Filter Type Band Pass
Impedance 50
Insertion Loss 2.2
Mounting Type SMD
Length (mm) 1.6
Width (mm) 0.8
Height (mm) 0.6
Weight (g) n/a
