LWB02.A.505111 External 4G LTE Wide Band 790-960/1710-2700MHz External Wall and Pole Mount Antenna Dipole with 5m CFD200 SMA(M)

LWB02.A.505111

Worldwide 4G LTE including 3G and 2G
Product Dimensions: 335.5*45*157mm
External Bracket Mount Antenna
Robust design for all weather operation
Cable: 5m CFD-200
Connector: SMA(M)
IP67 Compliant
RoHS & REACH Compliant

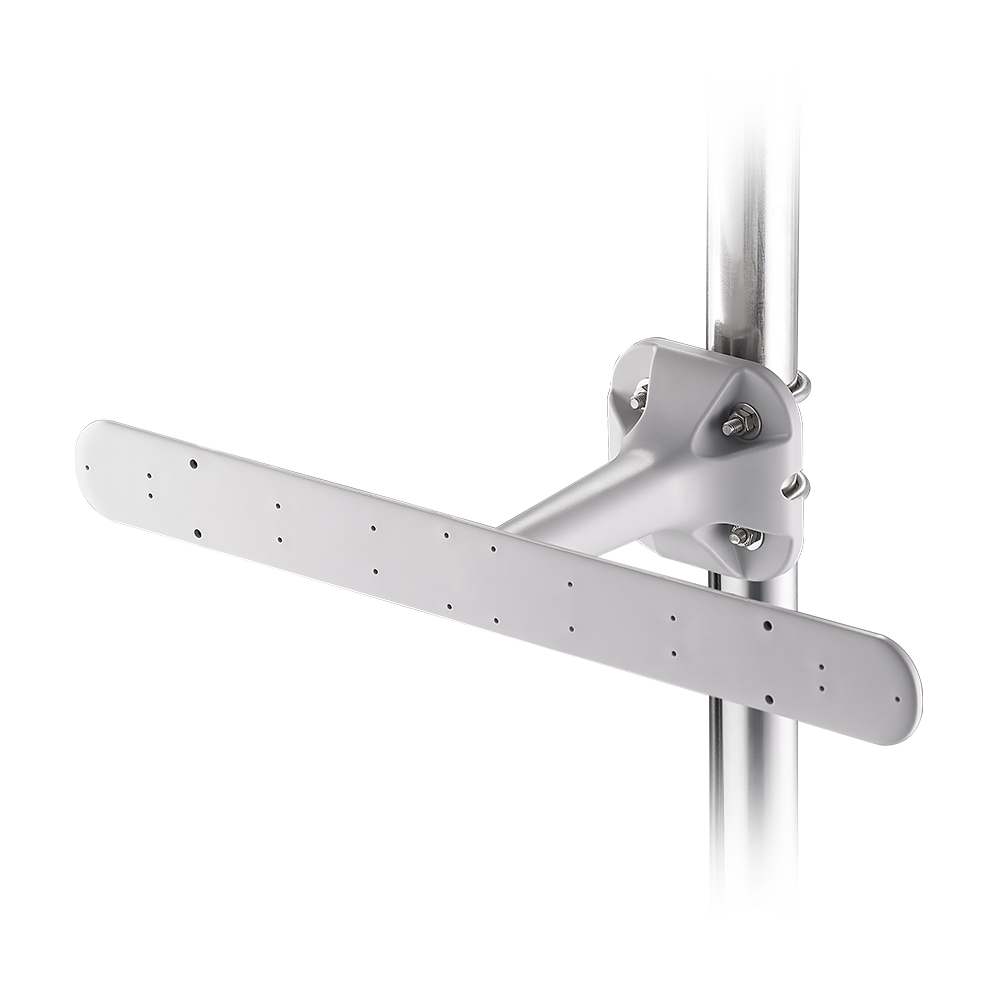

Image LWB02.A.505111

LWB02.A.505111

LWB02.A.505111 External 4G LTE Wide Band 790-960/1710-2700MHz External Wall and Pole Mount Antenna Dipole with 5m CFD200 SMA(M)

Overview
External, Omnidirectional, 4G LTE antenna

The LWB02 is an external, omnidirectional, 4G LTE antenna for use in worldwide telematics and cellular communication. Its flat and compact blade design, with a wide frequency range and high gain across all bands, can be used in global telematics, transportation, and remote monitoring applications.

4G LTE applications demand high-speed data uplink and downlink. The LWB02, utilizing low loss cables, provides high efficiency and high gain to achieve these requirements over long cable lengths.

High efficiency and high gain 4G LTE Antenna

The heavy-duty, fully IP67, waterproof housing can be used for either outdoor or indoor environments and with the mounting shaft, it can be easily fixed to walls or poles. The antenna casing and the mounting shaft use heat resistant, high impact, UV stabilized ASA resin, making it extremely robust.

Lower loss LMR400 or CFD400 cable can be used to directly connect to the on-board connector to extend the cable length. Options to use lower loss LMR400 or CFD400 cable are accommodated through the onboard connector in the bracket.

Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pole/Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP, LHCP,
Frequency Range 698-4000MHz
Connector Polarity None
Cable Length (mm) 5000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.7
Length (mm) 335.5
Width (mm) 157
Height (mm) 45
Weight (g) 220
