MA1280 – Raptor III 7-in-1 Public Safety Antenna with LMR Whip


1* Active GPS/GLONASS/BeiDou/Galileo L1/B1/E1
2* Worldwide 5G/4G MIMO 600-6000MHz
2* 2.4/5.8GHz Dual-Band Wi-Fi MIMO
1* Active AM/FM
1* LMR 700-900MHz Short Whip
Housing Dimensions: 190 x 95 x 92mm, Whip Dimensions: 65 x Ø13mm
GNSS, LMR & AM/FM: 5m RG-174 Cable
5G/4G MIMO, Wi-Fi MIMO: 5m braided TGC-200 Cable
GNSS, AM/FM, 5G/4G MIMO: SMA(M) Connector
Wi-Fi MIMO: RP-SMA(M) Connector
LMR (700-900MHz): Mini UHF (M) Connector
RoHS & REACH Compliant

Image MA1280.K.LBICGRT.001

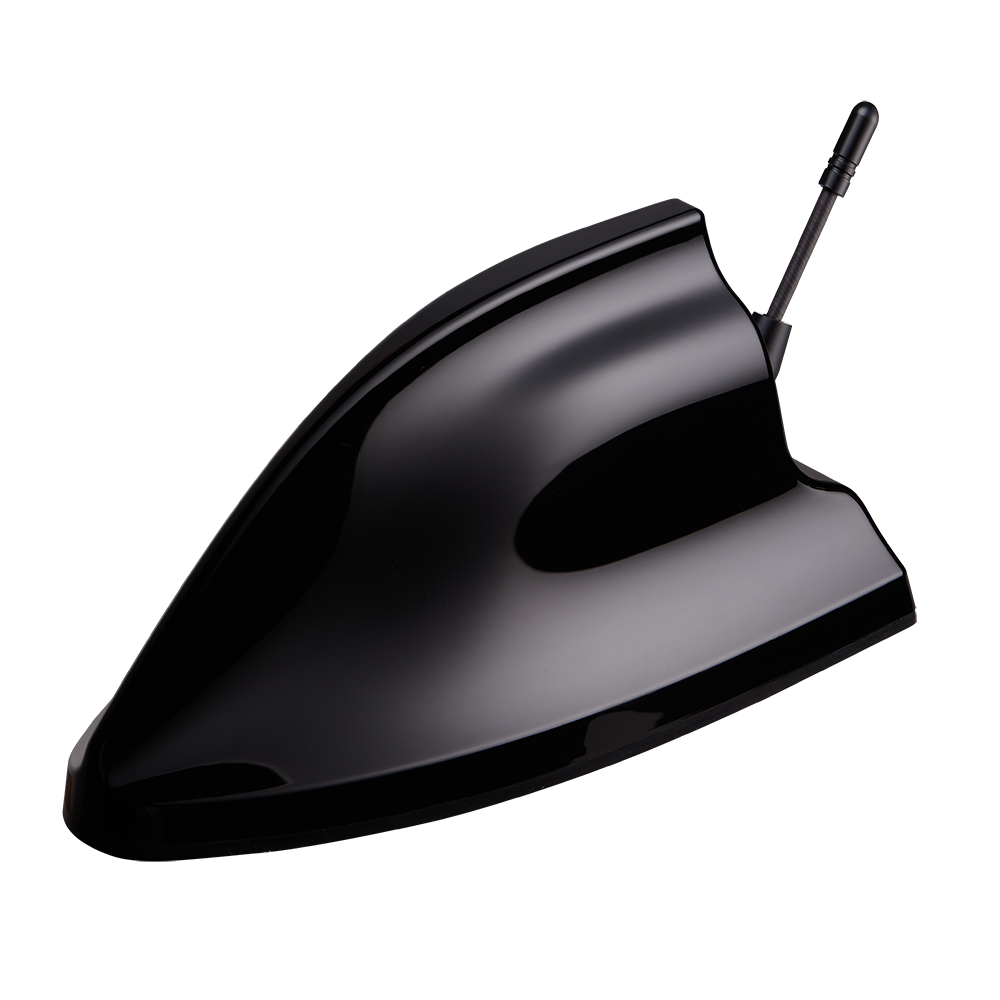

MA1280 – Raptor III 7-in-1 Public Safety Antenna with LMR Whip


High performance 7-in-1 “Shark Fin” style, Public Safety combination antenna

The Taoglas Raptor III MA1280 is a high performance 7-in-1 “Shark Fin” style combination antenna. It provides multiple antenna connections in a sleek, covert enclosure and is suitable for all automotive and commercial trucking applications. The Raptor III has been engineered to be mounted directly on the vehicle roof and is supplied with 5m cables and SMA connectors as standard.

The Raptor III is designed to combine and active multiband GNSS (GPS/GLONASS/BeiDou/Galileo), 2*5G/4G Cellular MIMO, 2*Dual-Band Wi-Fi, Active AM/FM and LMR (700-900MHz) antennas in a small, robust, IP67 rated enclosure. The whip antenna attached to the rear of the enclosure covers the LMR bands used for specialist communication systems such as public safety and first responders, and can be modified for use at a different frequency.

The cellular antennas in the Raptor III cover all 4G, and the new Sub 6GHz 5G cellular bands offering efficiencies of up to 80%. Fallback to 3G and 2G bands are possible where 5G and 4G is not accessible. The high performing Wi-Fi antennas cover both the 2.4GHz and 5.8GHz Wi-Fi bands. The whip antenna covers the Terrestrial Trunked Radio (TETRA) bands between 380 – 470MHz as standard and can be customized for other communication frequency bands. It is connected via a threaded M6 Female connector to the M6 male connector on the enclosure. Low loss 1.5DS cables are used that can allow for longer cable installations if required.

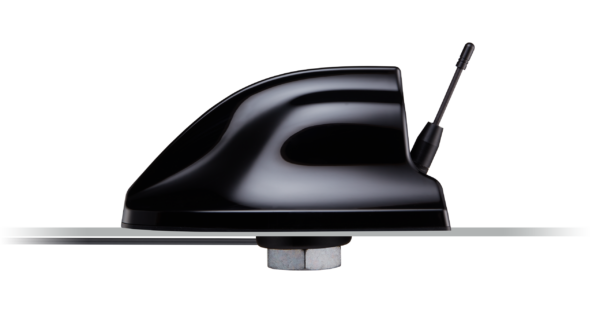

The Raptor III has a robust, impact resistant, UV resistant, PC enclosure and is easy to install. It requires just one single M20 hole, unlike many other vehicle mount solutions currently on the market that require multiple mounting holes. This single hole mounting substantially reduces installation time & cost and reduces damage to the vehicle.

Typical Applications Include:
– Transportation and Fleet Management
– Autonomous Driving and Robotics
– FirstNet, First Responders and Emergency Services

The cables, connectors and whip are fully customizable. For further information or installation instructions contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 5000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 2.7
Length (mm) 191
Width (mm) 95.7
Height (mm) 98.3
Weight (g) 972
