MGA1.101111 3dBi Mini Magnetic Mount NB-IoT /CAT M1 Antenna

MGA1.101111

698M~960MHz, 1710~2700MHz
1M RG174 Cable, SMA(M) Connector
Typical 30%+ Efficiency and 3dBi Peak Gain
Robust High Strength Super Magnet Mount
Custom cables and connectors available

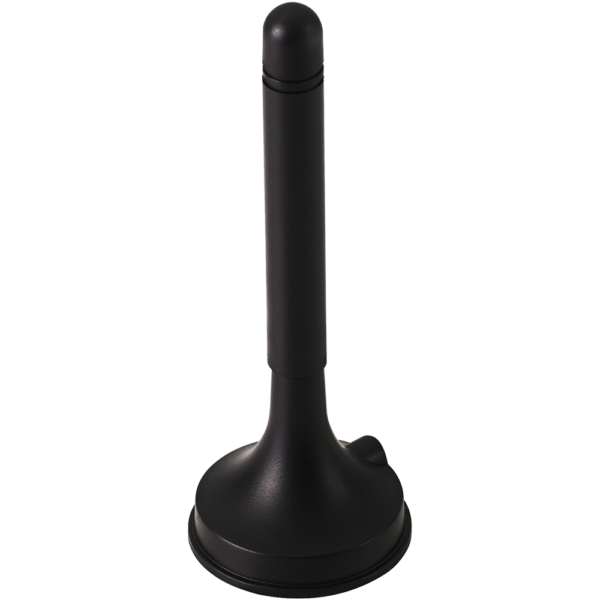

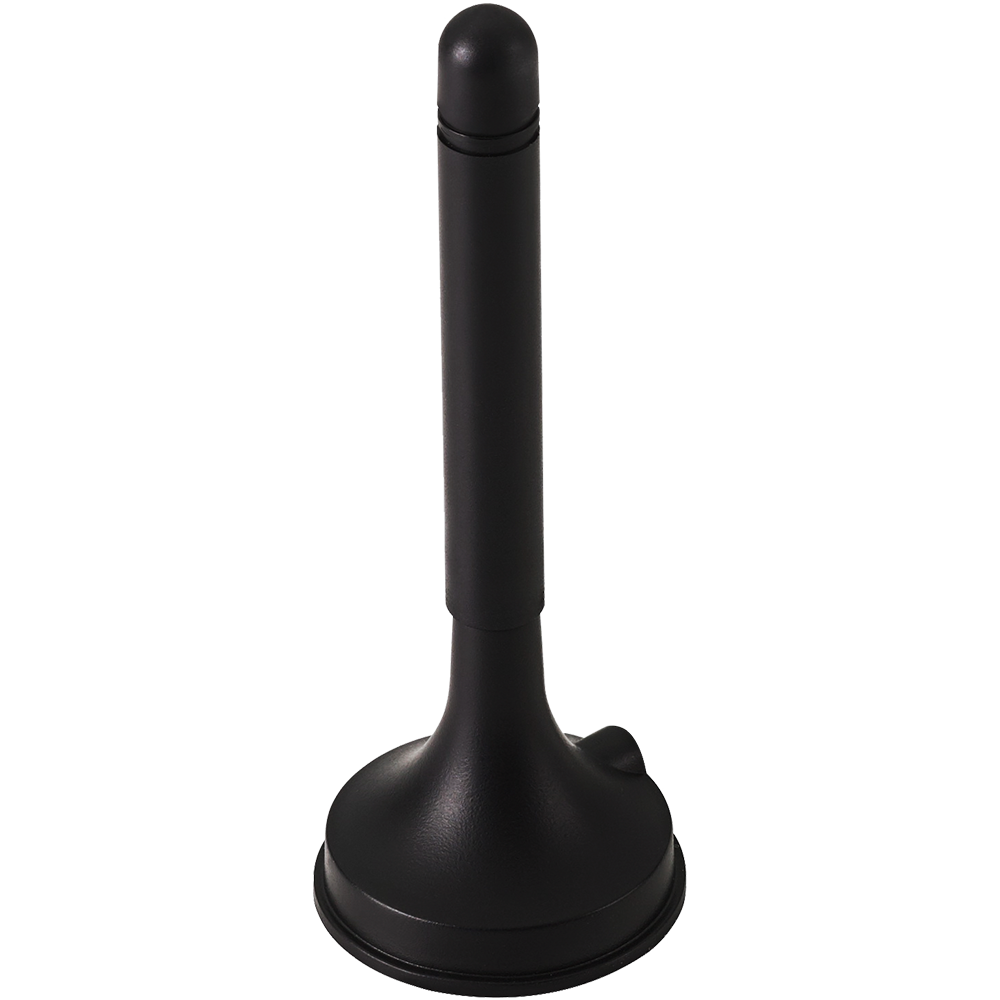

Image MGA1.101111

MGA1.101111

MGA1.101111 3dBi Mini Magnetic Mount NB-IoT /CAT M1 Antenna

Overview
Mini Magnetic Mount NB-IoT /CAT M1 Antenna

The MGA1.101111 Mini Magnetic Mount NB-IoT /CAT M1 Antenna delivers stable high omnidirectional gain and efficiencies to support NB-IoT / CAT M1 application bands and all common 4G/3G/2G global cellular bands from 698 MHz to 2.7 GHz.

NB-IoT / CAT M1 is a low power wide area (LPWA) technology specifically designed for IoT and M2M. CAT M1 technology offers lower maintenance cost, with greater efficiency and reliability by reducing power consumption and providing deeper penetration compared to standard cellular technologies. It operates on secure mobile networks making it suited to automotive, smart meter, medical and smart city applications.

This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM. Being magnetic mount it is designed to be mounted on a ground plane for optimal performance. A reliable return loss of < 5dB when mounted on a metal plate ensures it complies with the industry standards set by module makers and networks worldwide. Taoglas recommends using the antenna with 1m cable length or less and can provide customized connectors and cable lengths upon customer requirements.

The strong magnet base is extremely stable and robust, using only high-quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 700-2200MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Small Anti Static Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3
Length (mm) 30
Width (mm) 30
Height (mm) 82.8
Weight (g) 32
