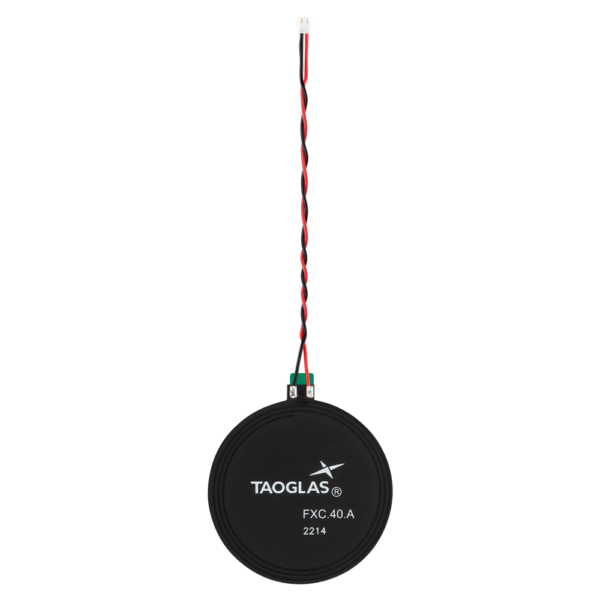

NFC Flex Antenna (⌀40*0.3 mm) with 75mm Twisted Pair 28AWG Cable and ACH(F) ConnectorFXC.40.52.0075X.A.dg
Flexible Near Field Communications Antenna
Flexible Polymer Adhesive
Layered with Ferrite Flux Director
75mm Twisted Pair 28AWG Cable with Teflon
Dimensions: ⌀40*0.3 mm
NFC Flex Antenna (⌀40*0.3 mm) with 75mm Twisted Pair 28AWG Cable and ACH(F) Connector
The FXC.40.52.0075X.A.dg from the Taoglas FXR / FXC series is an NFC (Near Field Communications) antenna designed for high-performance two-way read/write operations at 13.56MHz. The compact, flexible antenna is supplied with a ferrite flux director and adhesive backing for ease of installation inside a plastic device enclosure. The ferrite flux directors to provides isolation from the battery or other electronic components within the device. The 75mm twisted pair 28AWG cable and ACH(F) connector allows for flexible installation.
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access Control and Electronic Keys
Customized antennas for specific applications, shape, and impedance match can also be provided for an NRE and subject to MOQ. Contact your regional Taoglas sales office for more information and support on our NFC antenna range.
