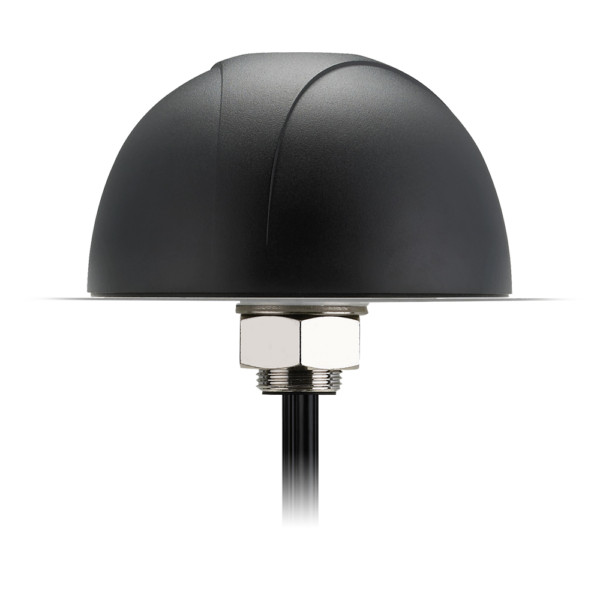

The Pantheon MA752.B antenna is an omnidirectional, heavy-duty, fully IP67 waterproof external multi-antenna for use in telematics, transportation and remote monitoring applications. The MA752.B is an upgrade of the MA75x series to include the LTE 450MHz band, an emerging technology used primarily for smart metering and smart city projects. New fleet management and video location technology demand real-time video uplink and downlink. High efficiency, high gain MIMO antennas are necessary to achieve the high signal to noise ratio and throughput required to solve these challenges. This unique antenna delivers powerful MIMO antenna technology for worldwide LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS for nextgeneration, high-bandwidth telematics systems. Taoglas has packed 5 high-efficiency and high-gain antennas in an extremely robust IP67 direct mount antenna package with good isolation (>10dB). The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 5 meters (16′ 4.8″), critical for buses, trains and other commercial transport applications. Customized cable and connector are versions available. Contact your regional customer support team for further information.
Pantheon MA752.B 5in1 LTE MIMO, Wi-Fi MIMO and GPS/GLONASS AntennaMA752.B.ABICG.001
Addition of LTE 450MHz band!
2*4G/3G/2G MIMO Antenna
(450~470MHz, 698~960MHz, 1710~2170MHz,2300~2700MHz)
– 3m CFD200 with SMA(M) Connector
1*GPS/GLONASS (L1) Antenna
– 3m RG174 with SMA(M) Connector
2*2.4GHz/5.8GHz Wi-Fi MIMO Antenna
– 3m CFD200 with RP-SMA(M) Connectors
Front End SAW Filter on GNSS Antenna
High Efficiency / Peak Gain Outdoor Antenna
