Roadmarker RI.08.A.0121 – Vandal-Resistant Robust Adhesive Mount Antenna for 868MHz

RI.08.A.0121

Adhesive Road Marker Antenna
862-870MHz Band
IK10 Rated Housing
Vandal-resistant PP housing
SMA(F) Direct Mount
RoHS and REACH Compliant

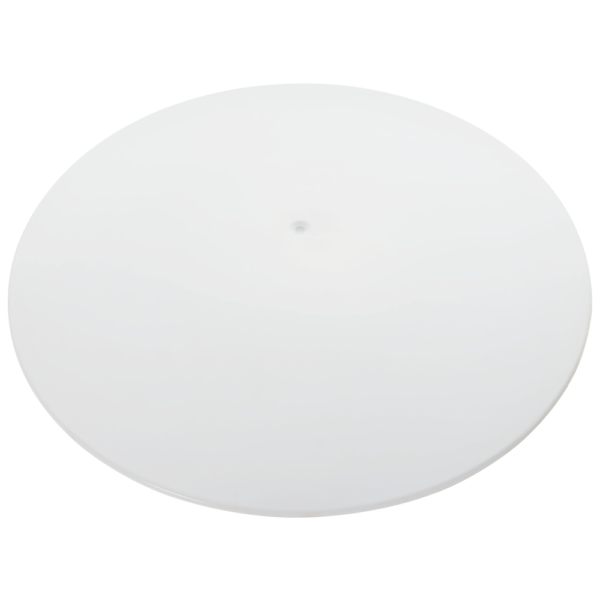

Image RI.08.A.0121

RI.08.A.0121

Roadmarker RI.08.A.0121 – Vandal-Resistant Robust Adhesive Mount Antenna for 868MHz

Overview
Vandal-Resistent 868MHz Adhesive Roadmarker Antenna

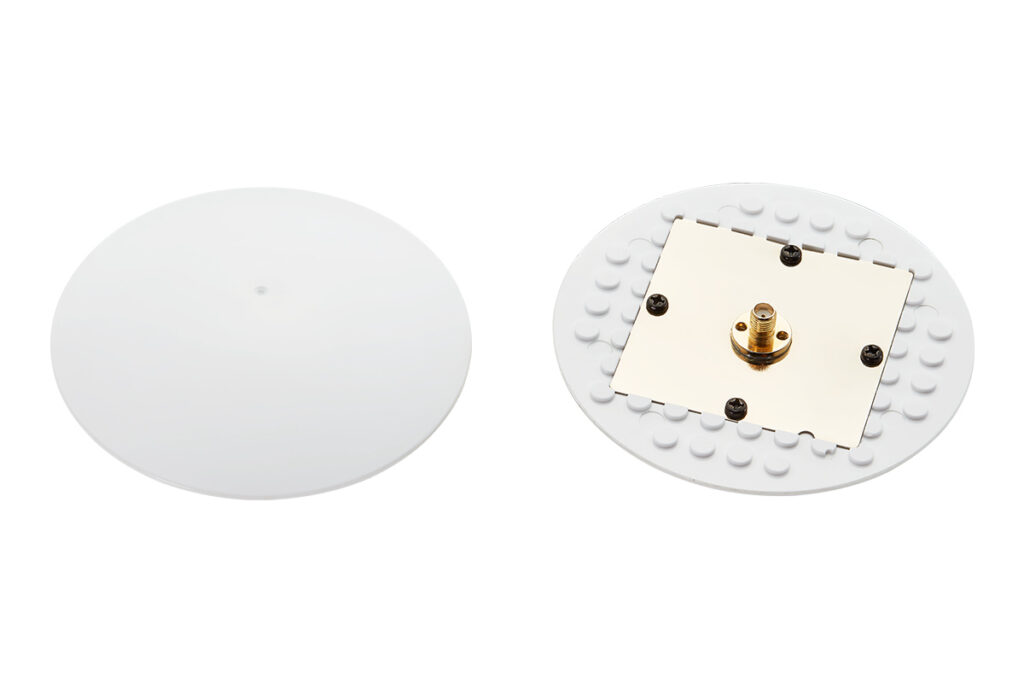

The Taoglas RI.08.A.0121 is an adhesive mount 868MHz roadmarker/manhole antenna designed for use in conjunction with “Bott’s dots”. The vandal-resistant, non-reflective, low-profile housing allows it to be directly mounted onto the pavement, road or manhole. The RI.08has been designed for the 862-870MHz ISM band and uses the existing road marker style housing created by Taoglas and include a direct mount SMA female connector.

This antenna can be used in many different applications, such as:
  • Remote Monitoring
  • Smart Metering
  • Security

When installing this antenna, the SMA female direct mount can be used to directly mount onto a surface, Taoglas can also supply a customized cable with connector to suit a customer’s needs. It is recommended that 3M VHB 4955 Adhesive is used to mount this antenna onto the required surface.

Technical Specification
Name Value
Antenna Type ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 80°C
Mounting Style Road/Pavement
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Straight
Polarity Linear
Frequency Range 860-880MHz
Connector Polarity Normal
Packaging Reel
VSWR 0.084027778
RoHS Yes
Gain 4.9
Length (mm) 101.6
Width (mm) 101.6
Height (mm) 19.05
Weight (g) 150

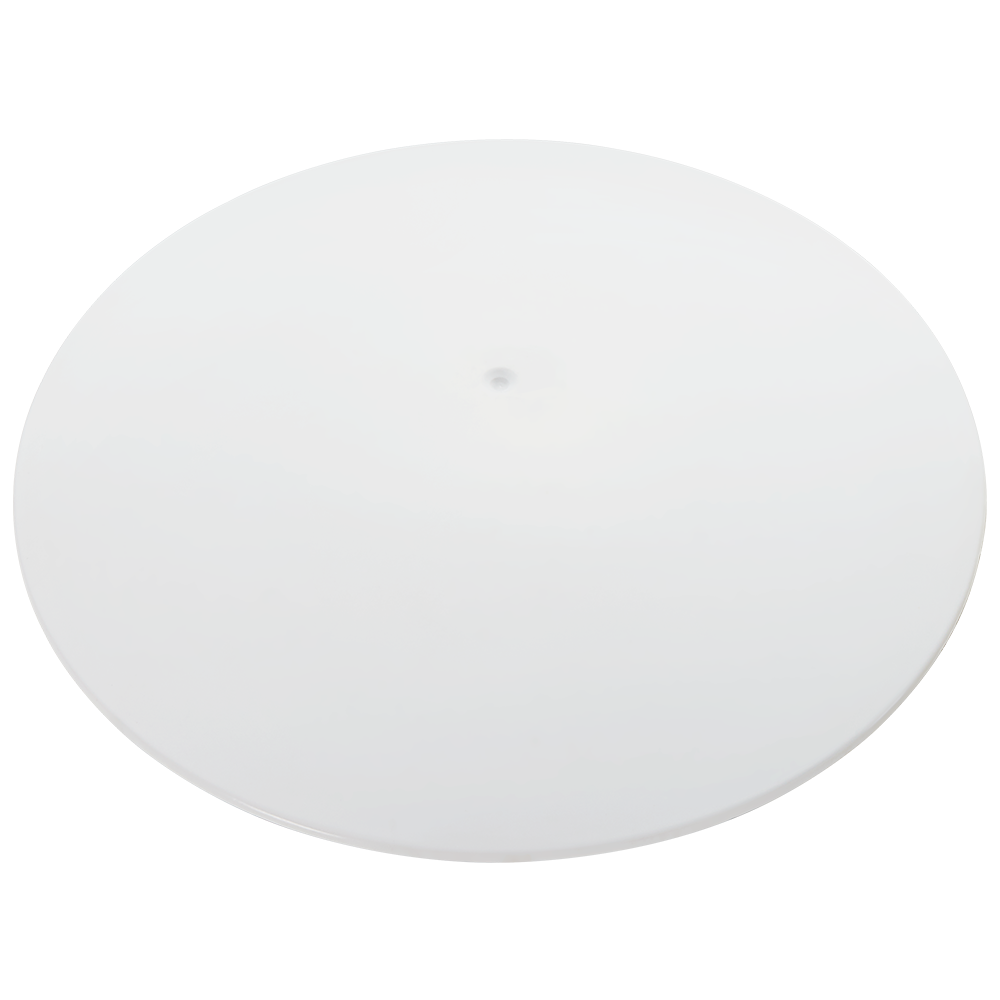

Image RI.08.A.0121
