SGGP.12.4.A.02 GPS/GLONASS/GALILEO 12*12*4mm SMD Mount Patch

SGGP.12.4.A.02

SGGP.12A Series
SMT Mount Passive GPS-GLONASS-GALILEO Patch Antenna
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMT
Delivered on Tape and Reel and mounted during standard reflow process
Automotive TS16949 Production and Quality Approved
12mm*12mm*4mm

Image SGGP.12.4.A.02

SGGP.12.4.A.02

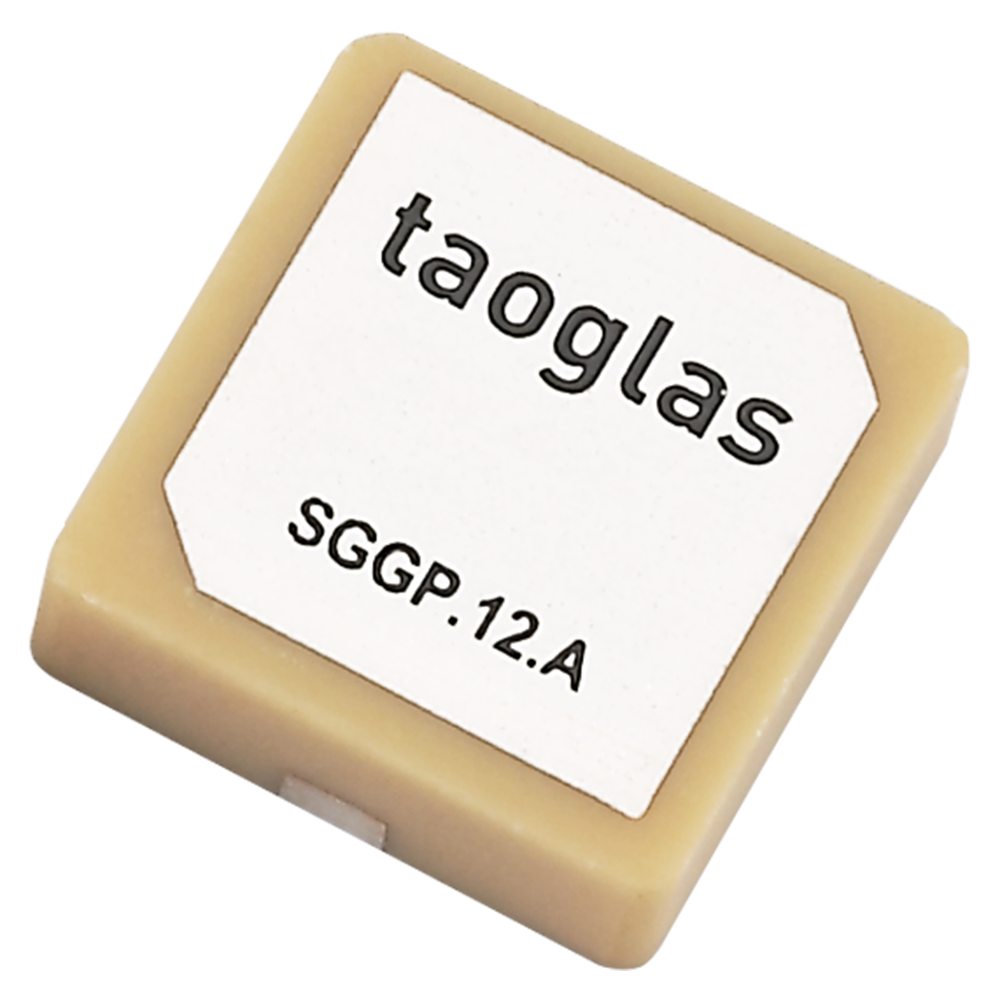

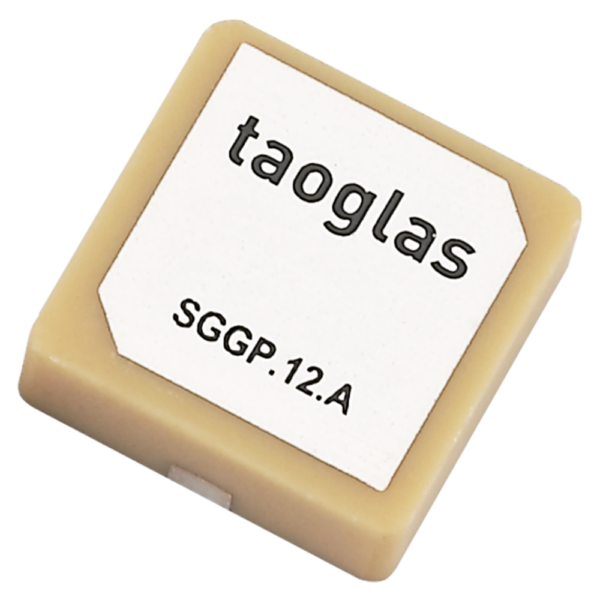

SGGP.12.4.A.02 GPS/GLONASS/GALILEO 12*12*4mm SMD Mount Patch

Overview

The SGGP.12.4.A.02 is a ceramic GPS/GLONASS/GALILEO passive patch antenna with low-profile thickness of 4mm. It is designed for applications in navigation devices, vehicle tracking/fleet management systems, and telematics devices. Typical applicable industries are transportation, defense, marine, agriculture, and navigation. The antenna has been tuned on a 50 x 50 mm ground plane, working at 1575.42MHz and 1602MHz, with a 2.67 dBi gain and 2.94 dBi gain, respectively. The ceramic patch is mounted via SMT process. It is manufactured and tested in a TS16949 first tier automotive approved facility. For customer specific device environments, custom tuned patch antennas are highly recommended, subject to potential NRE and MOQ. Contact your regional Taoglas sales office for details.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 2.94
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz To 1610MHz
Connector Polarity Normal
Cable Length (mm) N/A
Packaging Reel
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 12
Width (mm) 12
Height (mm) 4
Weight (g) 3.3
