SGGP.18.4.A.08 GPS/GLONASS/Galileo SMD 18*18*4mm Mount Patch

SGGP.18.4.A.08

SGGP.18A Series
SMD Mount Passive GPS-GLONASS-GALILEO Patch Antenna
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMD
Delivered on Tape and Reel and mounted during standard reflow process
Dimensions: 18*18*4mm
RoHS and REACH Compliant

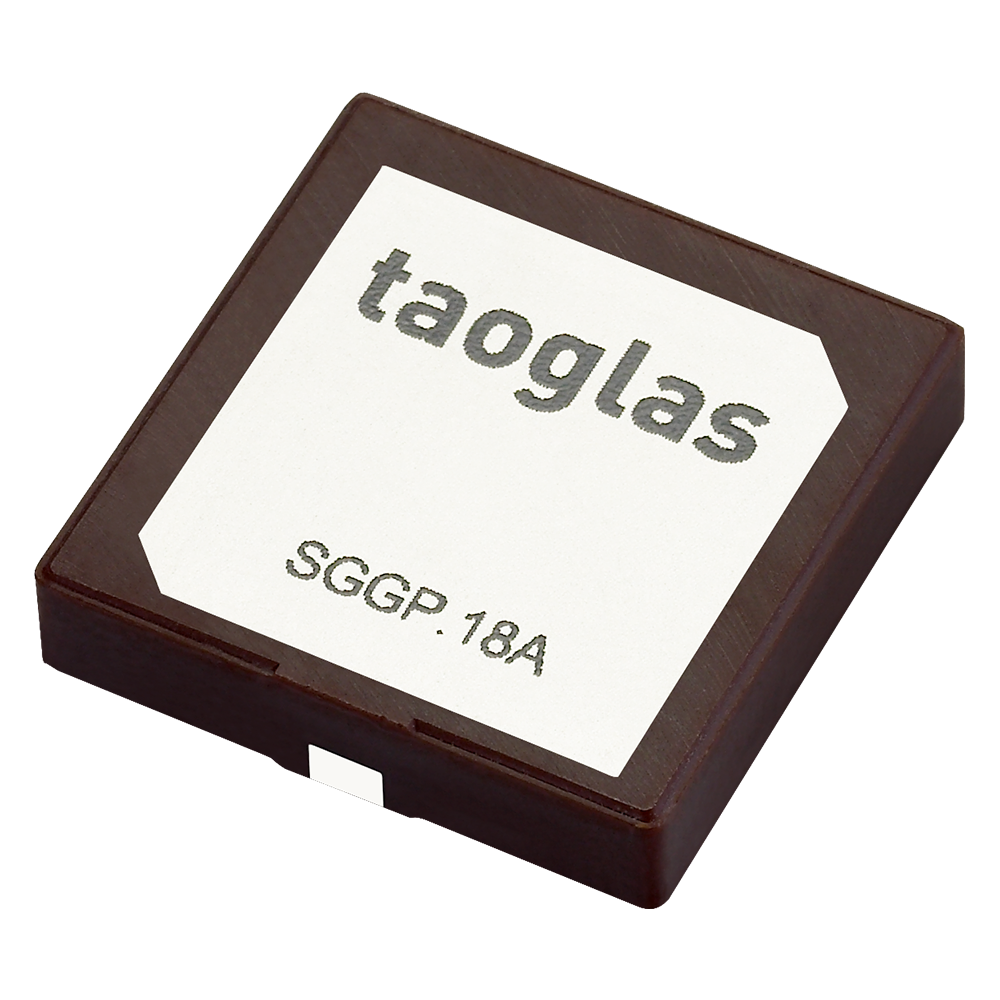

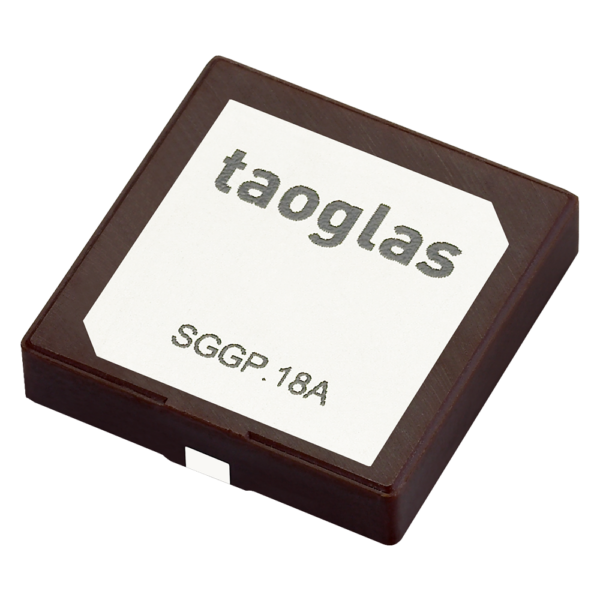

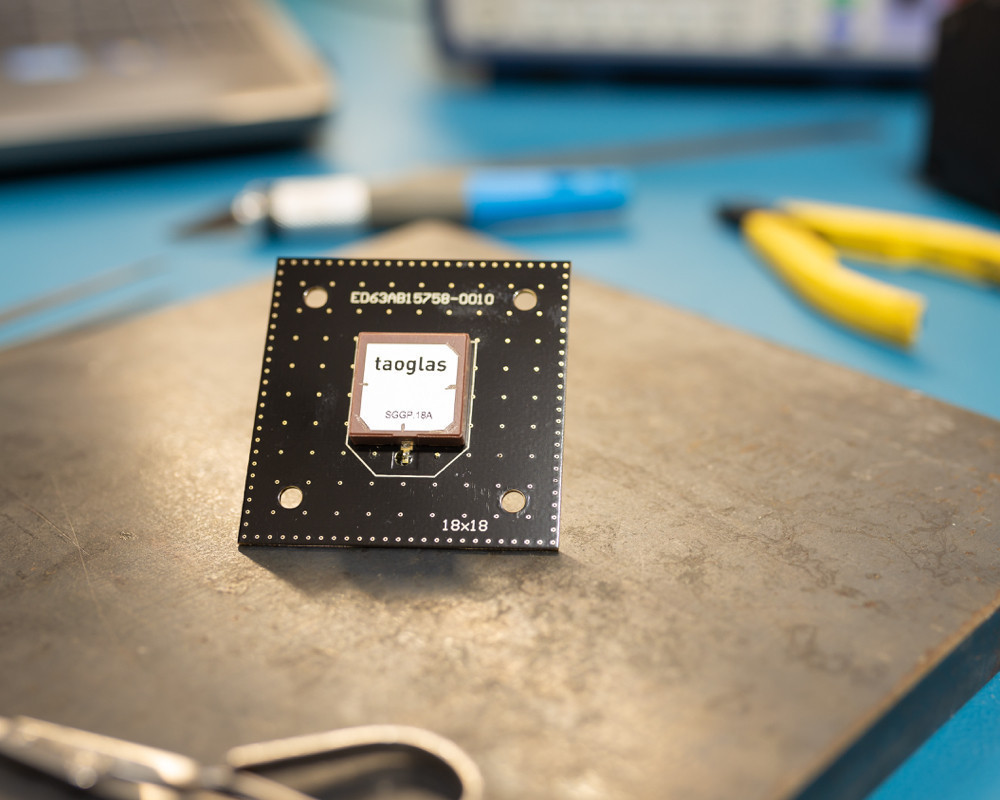

Image SGGP.18.4.A.08

SGGP.18.4.A.08

SGGP.18.4.A.08 GPS/GLONASS/Galileo SMD 18*18*4mm Mount Patch

Overview

The Taoglas SGGP.18.4.A.08 is a ceramic GPS/GLONASS/GALILEO passive patch antenna designed for optimal performance on GPS L1 band (1575.42 MHz) and GLONASS L1 band (1602 MHz). With a low-profile thickness of just 4mm and convenient mounting via standard SMD process, it is ideal for high-volume, low-cost assembly applications. SGGP.18 is designed for applications in navigation devices, vehicle tracking/fleet management systems, and telematics devices. It is an excellent choice for applications in transportation, defense, marine, agriculture, and navigation industries.

This antenna has been tuned for use on a 50mm*50mm ground plane to achieve 2.86 dBi gain at 1575.42 MHz and 3.04 dBi gain at 1602 MHz. In addition to excellent efficiency, it also offers a broadly hemispherical radiation pattern with stable gain across elevations. SGGP.18 is manufactured and tested in an IATF16949 first tier automotive approved facility. For further optimization to customer-specific device environments, custom-tuned patch antennas can be supplied, subject to NRE and MOQ. For more information or support with integrating this antenna into your device, please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 3.04
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz To 1602MHz
Connector Polarity Normal
Cable Length (mm) N/A
Packaging Reel
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 18
Width (mm) 18
Height (mm) 4
Weight (g) 5.8
