Shockwave TLS.30 ISM 433MHz -0.54dBi Permanent Mount Antenna, 1m CFD/TGC-200 with SMA(M)

TLS.30.105111

Shockwave Permanent Mount Antenna
433MHz unlicensed band
Highest Efficiency over 56%
IP67 Waterproof
1m CFD/TGC-200 SMA(M)
Height 79mm Diameter 42mm

Image TLS.30.105111

TLS.30.105111

Shockwave TLS.30 ISM 433MHz -0.54dBi Permanent Mount Antenna, 1m CFD/TGC-200 with SMA(M)

Overview

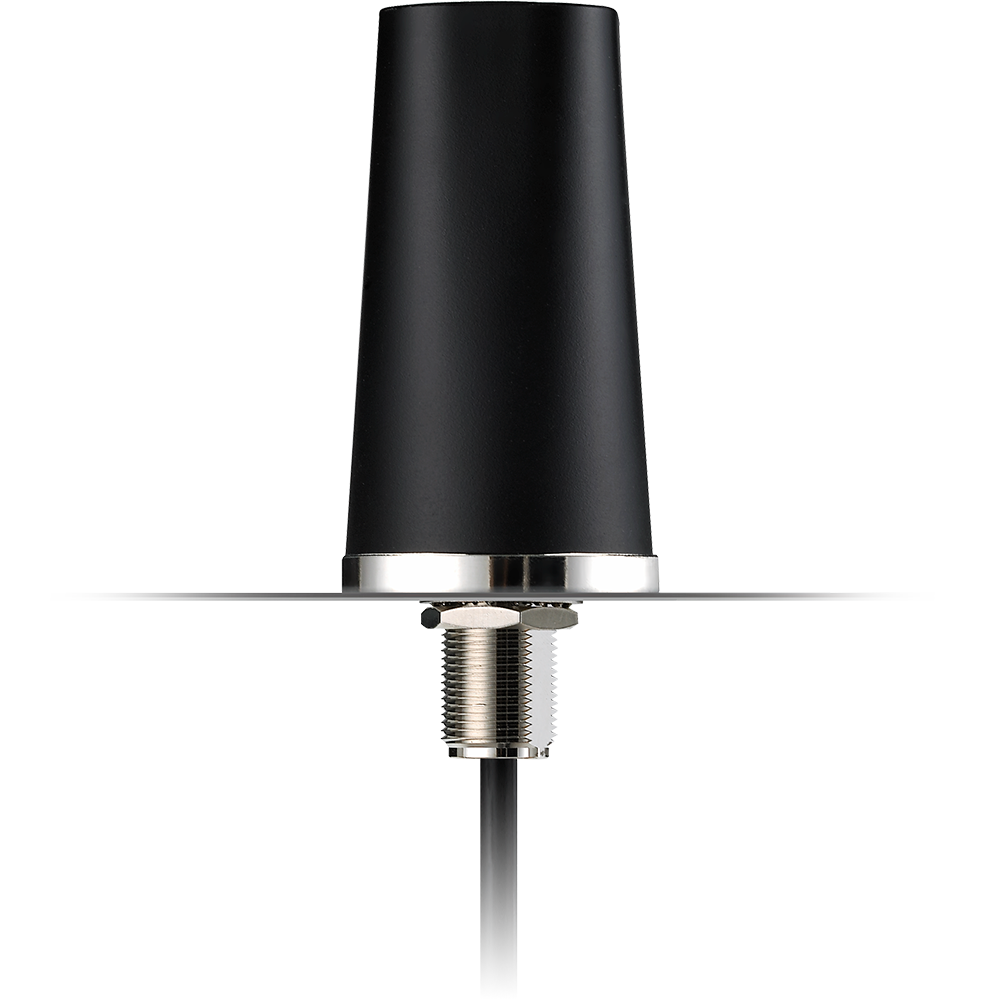

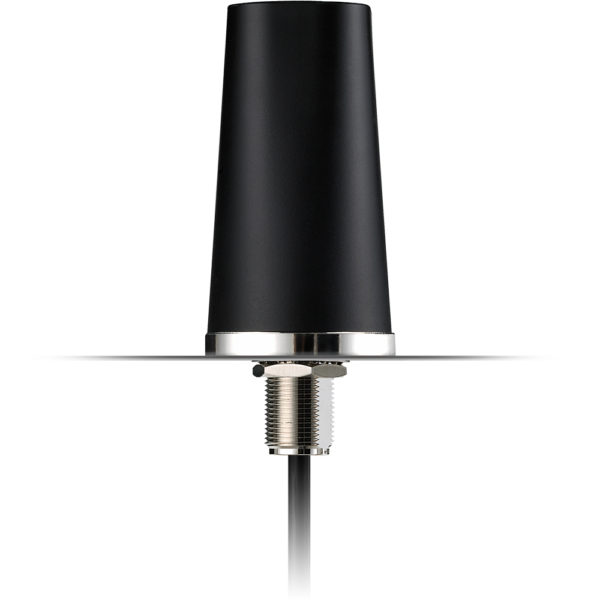

The Shockwave TLS.30.105111 is a mechanically robust, waterproof, external antenna operating at the 433MHz ISM band with 1 meter low loss CFD/TGC-200 cable and SMA(M) connector. It has been designed to be used on a Ground Plane.

Common applications are, for example:
  • Mesh networks
  • Indoor/outdoor asset monitoring
  • Security systems
  • Remote control systems
  • Heavy-duty equipment/vehicle communication in harsh environments

The antenna has 56% efficiency and -0.54dBi peak gain at ISM 433MHz on a 30×30 cm ground plane. Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots. A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.30 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for ISM 433MHz applications in harsh outdoor environments.

Technical Specification
Name Value
Antenna Type ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Solder
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 433MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging Box, Carton
VSWR 1.5:1
IP Rating IP67
RoHS Yes
Gain 1.57
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 205
Image TLS.30.105111

TLS.30.105111
