Shockwave TLS.30 ISM 433MHz -1.16dBi Permanent Mount Antenna, N Type(F)

TLS.30.1F21

Shockwave ISM Permanent Mount Antenna
433MHz
Efficiency 55%
N type(F) connector
IP67 Waterproof
Height: 79.45mm; Diameter: 42mm
FirstNet Ready

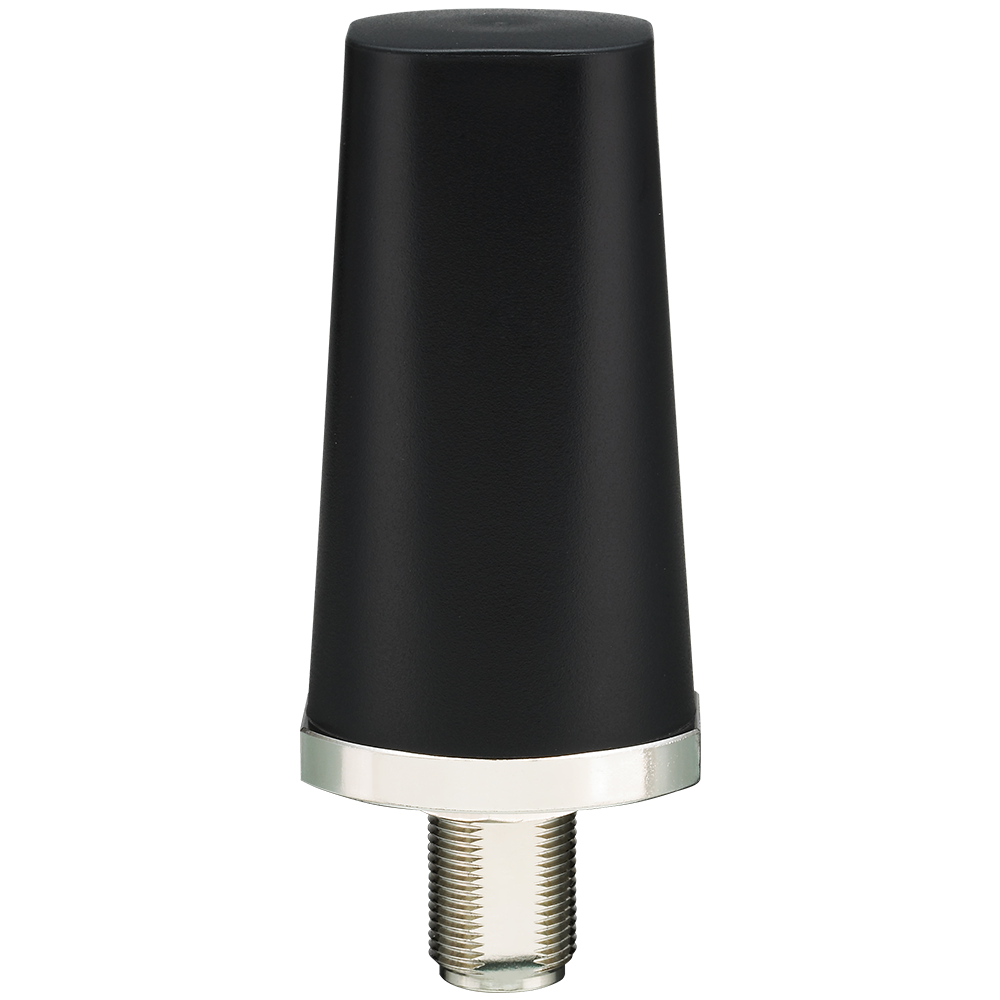

Image TLS.30.1F21

TLS.30.1F21

Shockwave TLS.30 ISM 433MHz -1.16dBi Permanent Mount Antenna, N Type(F)

Overview
Shockwave Wideband Permanent Mount Antenna

The Shockwave TLS.30.1F21 is a mechanically robust, waterproof, external antenna operating at the 433MHz band with an N type female connector. It has been designed to be used on a Ground Plane.

Common applications are, for example:
  • Mesh networks
  • Indoor/outdoor asset monitoring
  • Security systems
  • Remote control systems
  • Heavy-duty equipment/vehicle communication in harsh environments

The antenna has 55% efficiency and -1.1 dBi peak gain at ISM 433MHz on a 30×30 cm ground plane. Stable radiation patterns over low angles provides consistent gain in the horizontal plane, meaning that it is especially suitable for mesh networks or hot spots. A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.30 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for ISM 433MHz applications in harsh outdoor environments.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 70°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Straight
Polarity Linear
Frequency Range 433MHz
Connector Polarity Normal
Cable Length (mm) None
Packaging Reel
VSWR 0
IP Rating IP67
RoHS Yes
Gain 0
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 169
