Globalstar SP.1615.25.4.A.02 1615MHz Patch Antenna 25*25*4mm

SP.1615.25.4.A.02

Passive 4dBi Globalstar Ceramic Patch
1615MHz +/- 3MHz
Mounted with pin and adhesive tape
Globalstar approved
Dims: 25*25*4mm

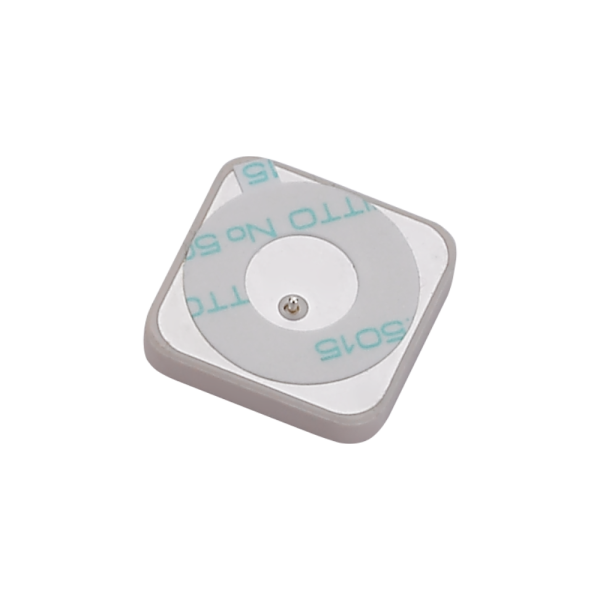

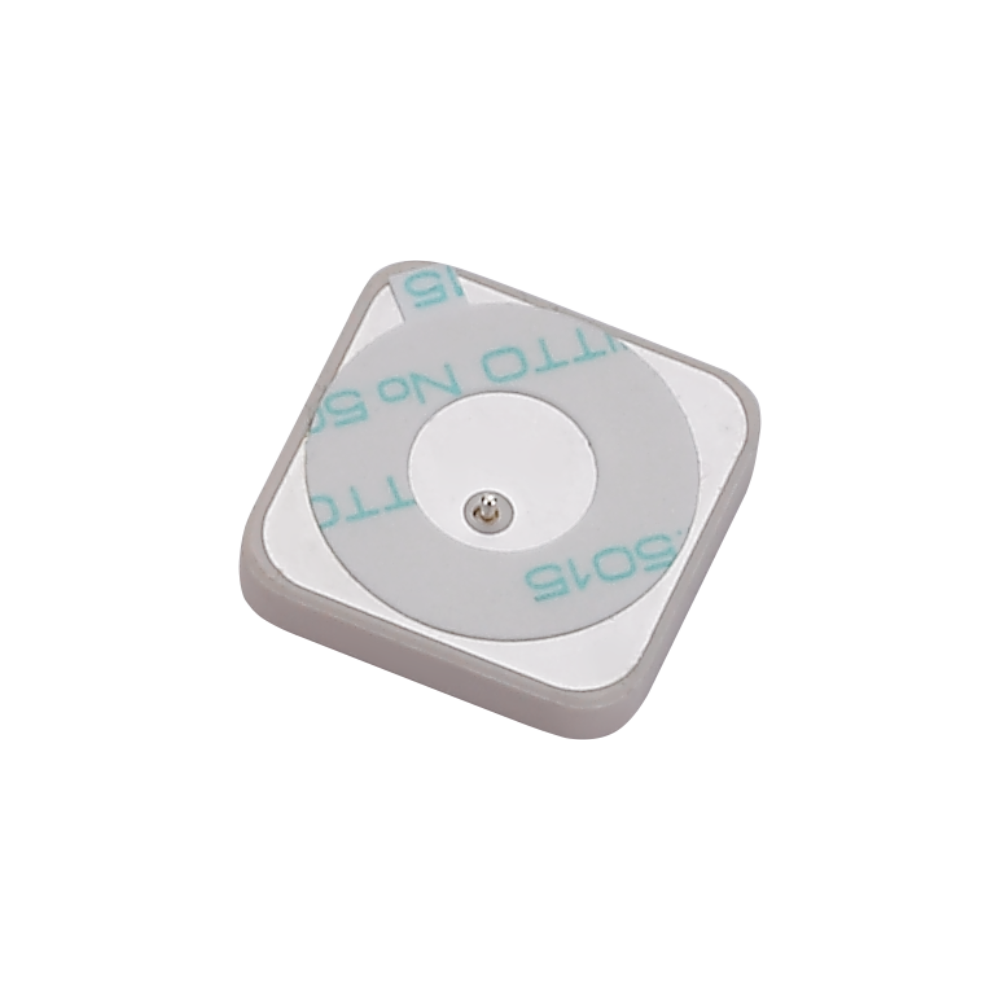

Image SP.1615.25.4.A.02

SP.1615.25.4.A.02

Globalstar SP.1615.25.4.A.02 1615MHz Patch Antenna 25*25*4mm

Overview

Antenna for Globalstar Applications

This miniaturized 25mm square ceramic patch antenna is mounted via pin and double-sided adhesive and is the optimal embedded antenna for Globalstar applications.

The antenna is tuned to a reference 60mm square ground-plane. With an efficiency of nearly 80% at 1615 MHz, the antenna exhibits excellent upper hemisphere radiation pattern stability. Axial ratio is less than 3 on antenna operational angles, with a minimum axial ratio of 0.54 at zenith. The SP.1615.25.4.A.02 gain and directivity characteristics have been analyzed and approved by Globalstar.

Different device ground-planes and housing environments may require a custom tuned antenna. Taoglas provides testing and support services to characterize this antenna in your device and determine whether a custom tuned solution is necessary. There is a minimum order quantity and possible NRE for a custom solution. Contact your regional Taoglas office for support.

Technical Specification
Name Value
RoHS Yes
Antenna Type Satcom
Mechanical Style Patch
Gain 5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Antenna Connector Type None
Cable Type None
Connector Body Style None
Polarity LHCP
Frequency Range 1615MHz
Connector Polarity Normal
Packaging Blister
VSWR 2:1
Length (mm) 25
Width (mm) 25
Height (mm) 4
Weight (g) 5

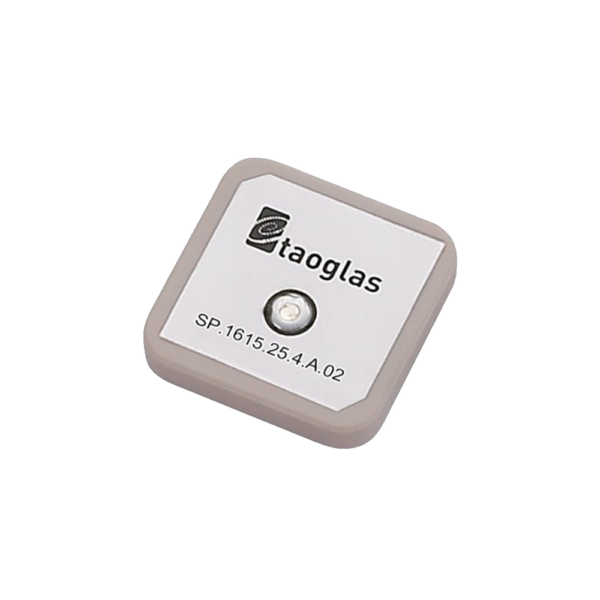

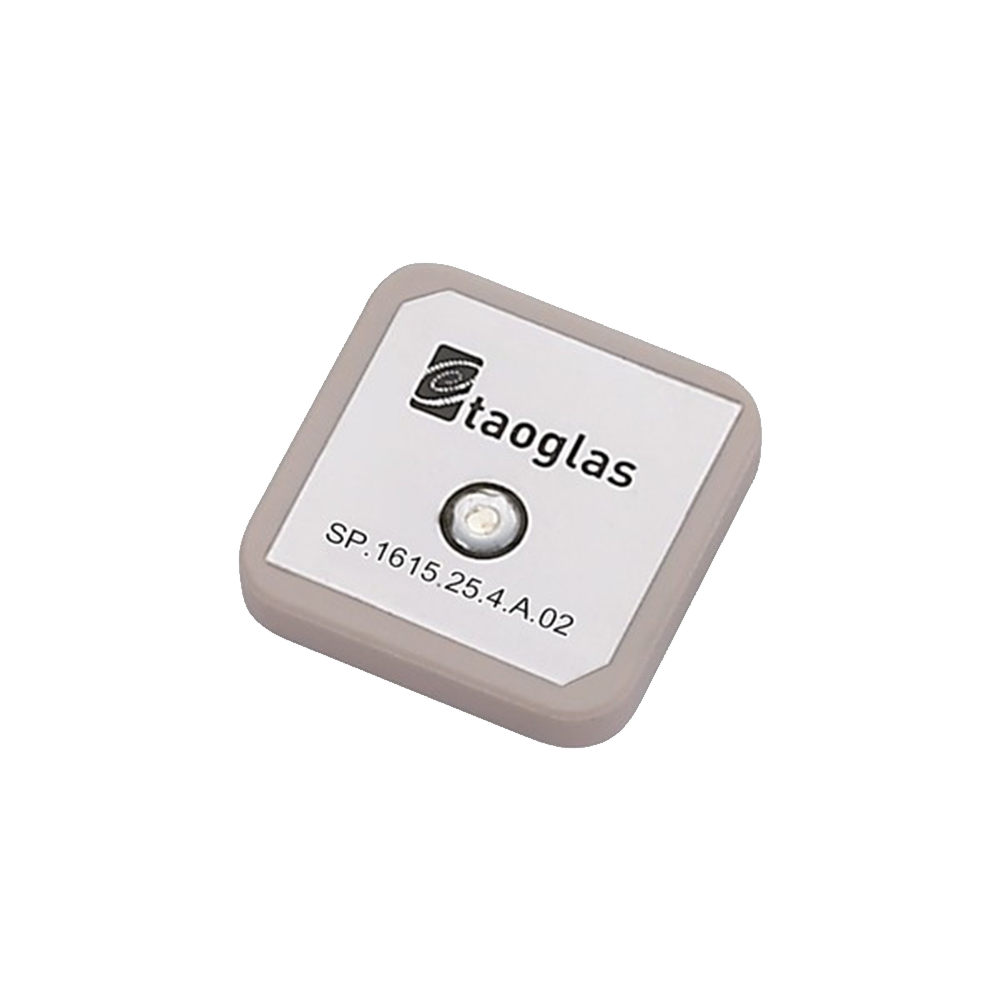

Image SP.1615.25.4.A.02
