Stingray MA206 2in1 GPS/GALILEO & Wi-Fi Adhesive Mount Antenna

MA206.A.AB.004

Stingray Adhesive Glass Mount
GPS/GALILEO 1575MHz – 2.4-2.5GHz Combination
High Grade 3M Double Sided Tape
3M RG-174 – GPS/GALILEO-SMA(M):Wi-Fi-RP-SMA(M)
Dims: 55*55*10.8mm

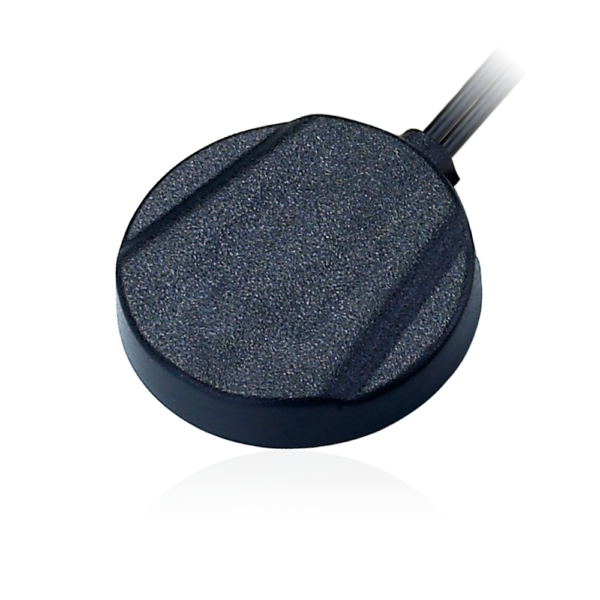

Image MA206.A.AB.004

MA206.A.AB.004

Stingray MA206 2in1 GPS/GALILEO & Wi-Fi Adhesive Mount Antenna

Overview

This is a combination high-performance GPS/GALILEO and 2.4~2.5GHz antenna to simplify AVL or Fleet management antenna systems worldwide. Its high-quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination is ideal for those applications that require durability, small size, and covert installation.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 1575.42 - 2500MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 0.72
Length (mm) 55
Width (mm) 55
Height (mm) 10.8
Weight (g) 113
