Stingray WA.500w Glassmount 2.4/5.8GHz, 3M RG-174

WA.500w.301151

Stingray Adhesive Mount
Dual Band 2.4/5.8GHz
2.4GHz~2.5GHz Band – 2dBi/40% Efficiency
4.9GHz~6GHz Band – 3dBi/50% Efficiency
Rated IP-65
RG-174 3M, RP-SMA(M) Plug Connector
Cable and Connector Customizible

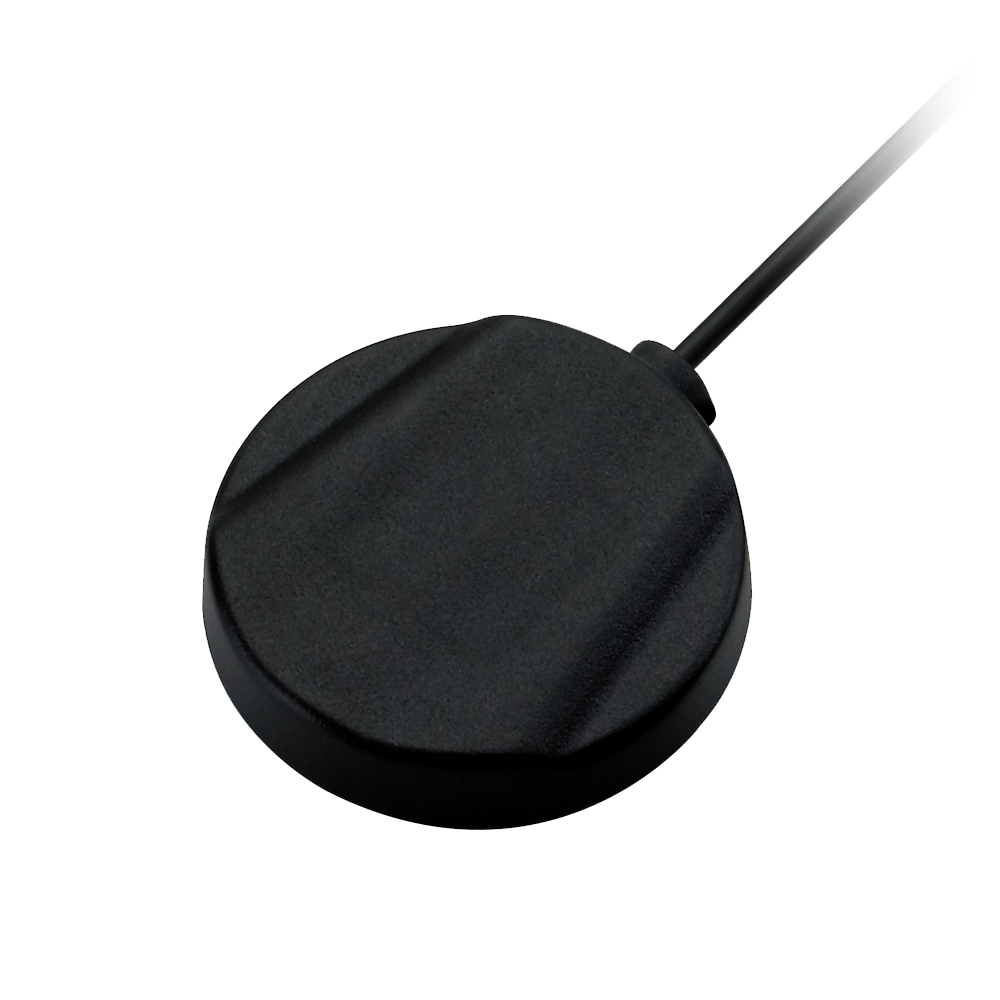

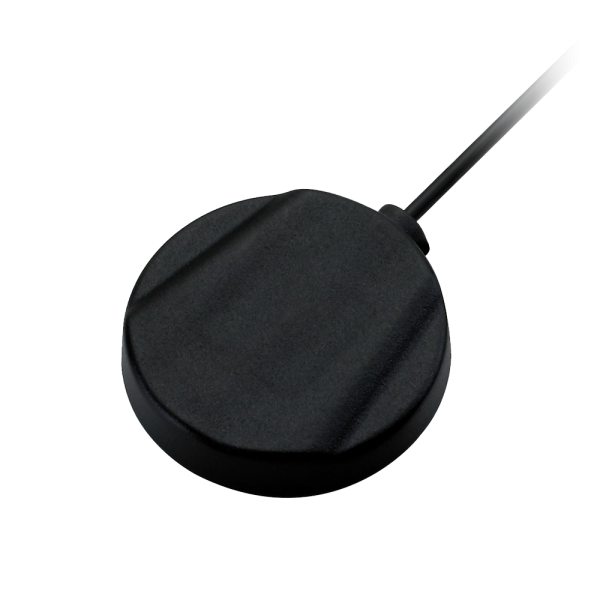

Image WA.500w.301151

WA.500w.301151

Stingray WA.500w Glassmount 2.4/5.8GHz, 3M RG-174

Overview

Low Profile Wi-Fi IoT Antenna for Drones, Vending Machines, Digital Signage, Vehicles and More

The Stingray WA.500w is a powerful low profile Wi-Fi IoT antenna for drones, vending machines, digital signage, vehicles and more. It is adhesive mount so very easy to install on plastic and glass surfaces. The result is a reliable omnidirectional gain across a wide area, giving constant reception and transmission for smart city applications.

Download the datasheet for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 2400-2500/4900-6000MHz
Connector Polarity Normal
Cable Length (mm) 50
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain 1.18
Length (mm) 51.4
Width (mm) 55
Height (mm) 11.7
Weight (g) 62
