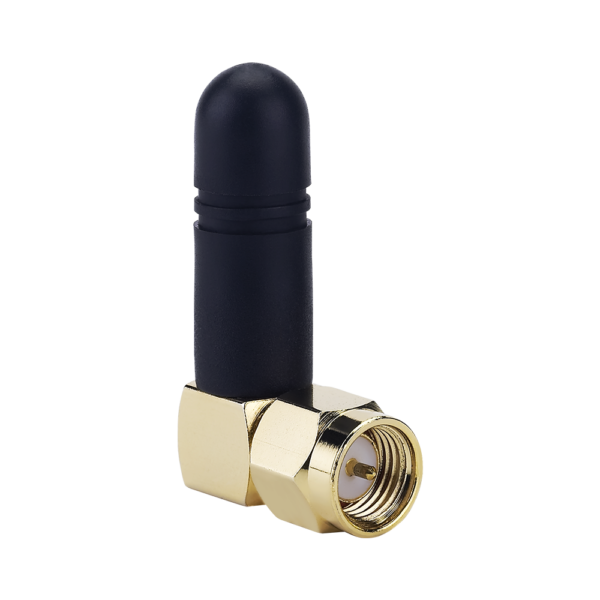

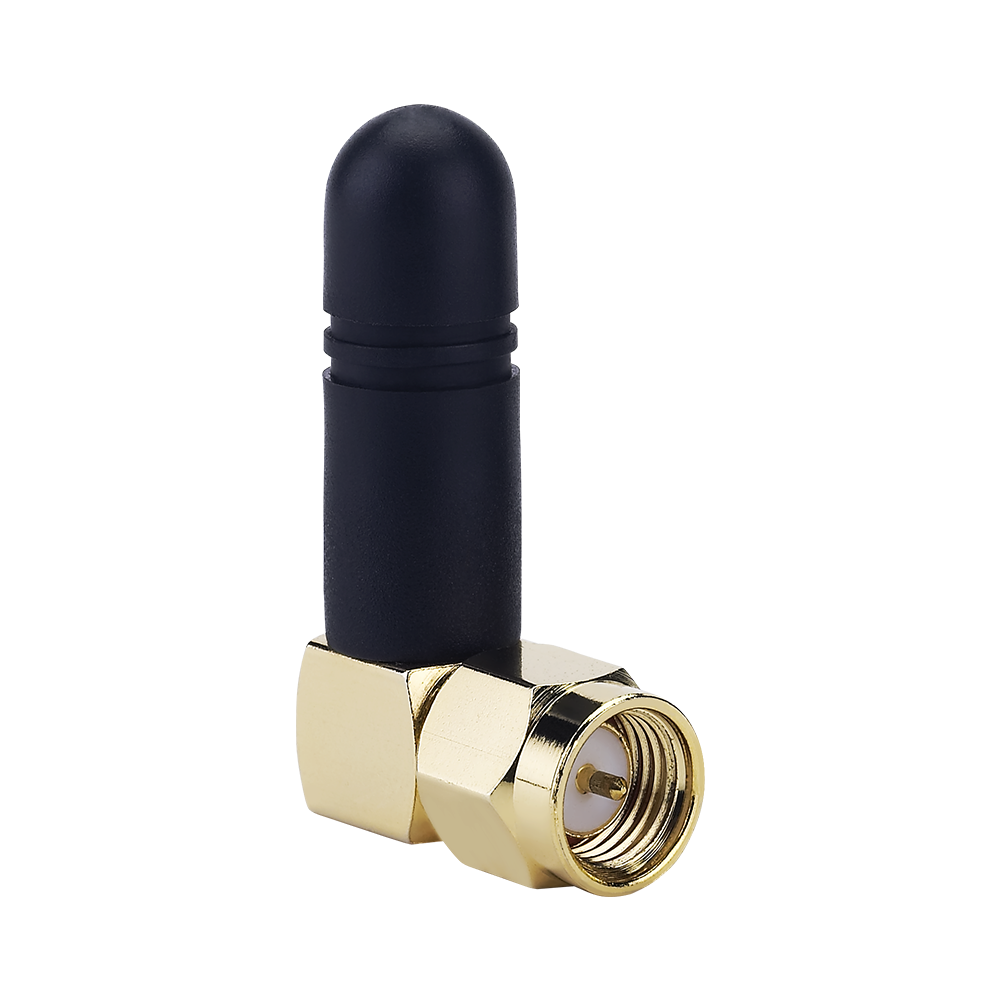

TG.19 3G/2G Connector Mount Monopole Antenna

TG.19.0112

0dBi Quad-Band Monopole Helical Antenna
GSM-DCS-PCS -CDMA-GPRS-EDGE
824~896/880~960/1710~1880/1850~1990MHz
SMA(M)RA Fixed
Dims: 29*17mm Ø:8mm

Image TG.19.0112

TG.19.0112

TG.19 3G/2G Connector Mount Monopole Antenna

Overview

The TG.19 Quad-band GSM-DCS-PCS-CDMA-GPRS-EDGE 824MHz to 1990MHz monopole helical antenna is a quality robust antenna with high gain in a small form factor. Its tiny size allows it to be used inside as well as outside product housings. The connection is made via fixed right angle SMA(M) connector with a hardened waterproof PU casing. Care should be taken that the antenna is connected to the device main-board ground, through the mating connector grounding on the device main-board. For smaller ground-plane devices or for devices where a ground-connection to the antenna is not possible we recommend the TG.10 or TG.30 dipole antennas which do not need to couple to ground.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Right Angle
Polarity Linear
Frequency Range 824-896/880-960/1710-1880/1850-1990MHz
Connector Polarity Normal
Cable Length (mm) None
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain 0.1
Length (mm) 17
Width (mm) 7.8
Height (mm) 28.5
Weight (g) 7
