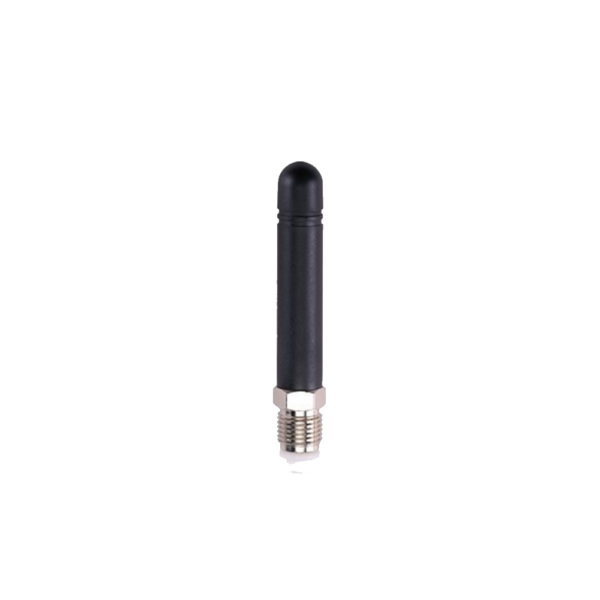

TG.22 3G/2G Cellular Connector Mount Monopole, FME(F)

TG.22.0221

3G/2G Monopole Helical Antenna
824~896/880~960/1710~1880/1850~1990/1710~2170MHz
0dBi Gain; Efficiency >37%
FME(F) Straight connector
Dims: L:52mm, Ø:8mm

Buy Now Get Quote

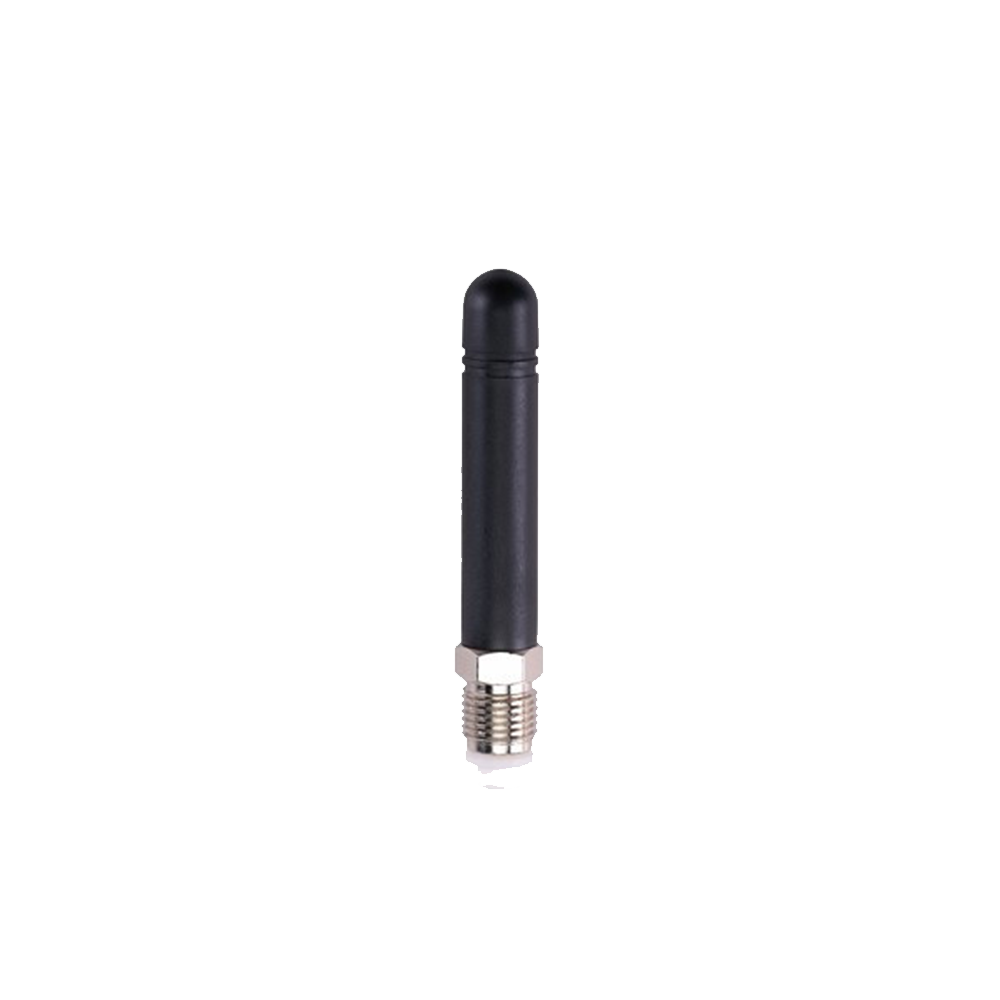

Image TG.22.0221

TG.22.0221

TG.22 3G/2G Cellular Connector Mount Monopole, FME(F)

Datasheet
Image CE Certification
Overview

About the TG.22 Cellular Monopole Antenna

The TG.22 Cellular Monopole Antenna with 2G/3G Penta-band from 824MHz to 2170MHz monopole antenna is a quality robust antenna with high gain in small form factor.

Connection is made via straight FME(F) connector with a hardened TPEE casing, this antenna is a good compact 2G/3G antenna for remote monitoring devices or telematics applications. The TG.22.0221 antenna has been tuned specifically for optimum efficiency when connected directly to the Sierra Wireless Airlink GL series programmable module.

Technical Specification
Name Value
Antenna Type Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMB
Cable Type None
Connector Body Style Straight
Polarity Linear
Frequency Range 824-896/880-960/1710-1880/1850-1990MHz
Connector Polarity Normal
Packaging PE Bag, Carton
VSWR 3
RoHS Yes
Gain 3
Length (mm) 7.8
Width (mm) 7.8
Height (mm) 52
Weight (g) 8
