Penta-Band Cellular Connector Mount Monopole Helical
Dupont® Hytrel® High Temperature Resistant TPEE Housing (up to 150°C)
824~896/880~960/1710~1880/1850~1990/1710~2170MHz
0dBi Gain
SMA(M)RA Fixed connector
Dims: 45*17mm Ø: 8mm
Suitable for Non-Terrestrial Network applications

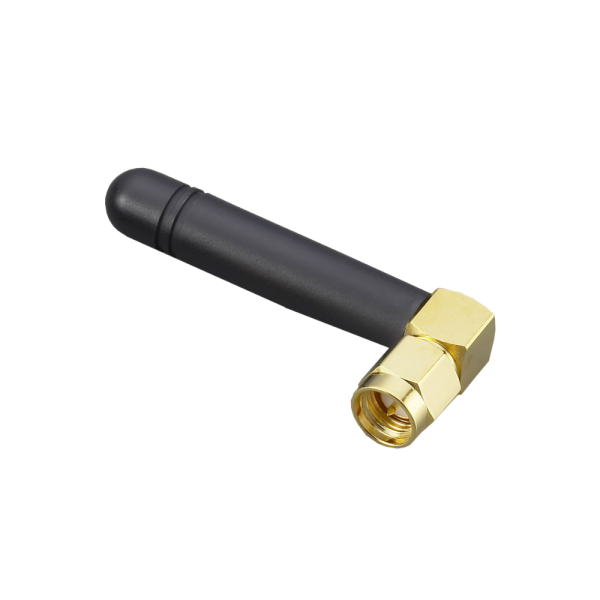

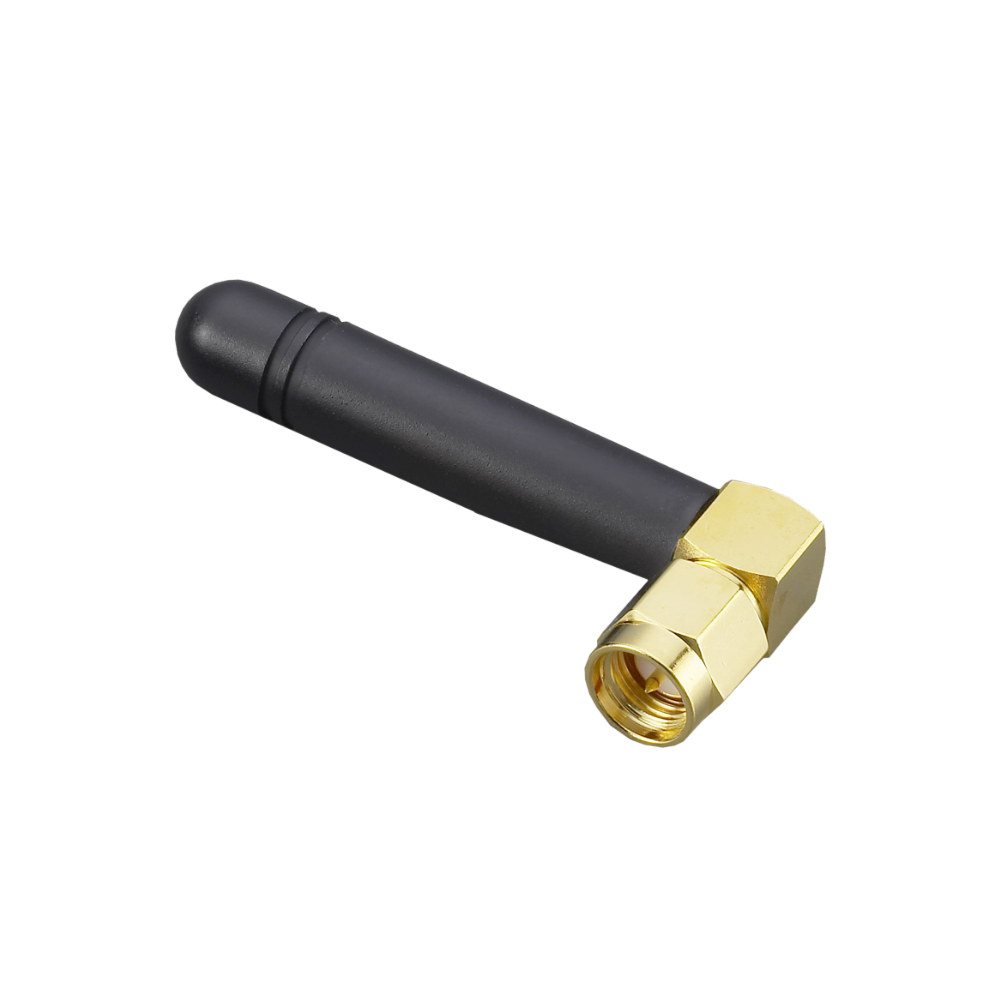

TG.22 3G/2G Cellular Connector Mount Monopole SMA(M)RA – High Temperature
TG.22.0112.HT
TG.22.0112.HT
TG.22 3G/2G Cellular Connector Mount Monopole SMA(M)RA – High Temperature
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 8 |
| Width (mm) | 17 |
| Height (mm) | 44.8 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 6 |
| RoHS | Yes |
| Gain (Max) | 4.61 |
