SMA Straight PCB Edge Mount/End Launch, Jack, Gold, 50Ω, Connector Solder Attachment

EMPCB.SMAFSTJ.B.HT

SMA(F) Jack Straight
Edge Mount/End Launch PCB Jack Connector Solder Attachment
Finish: Gold
Leg Length: 3.8mm
Total Length: 13.3mm

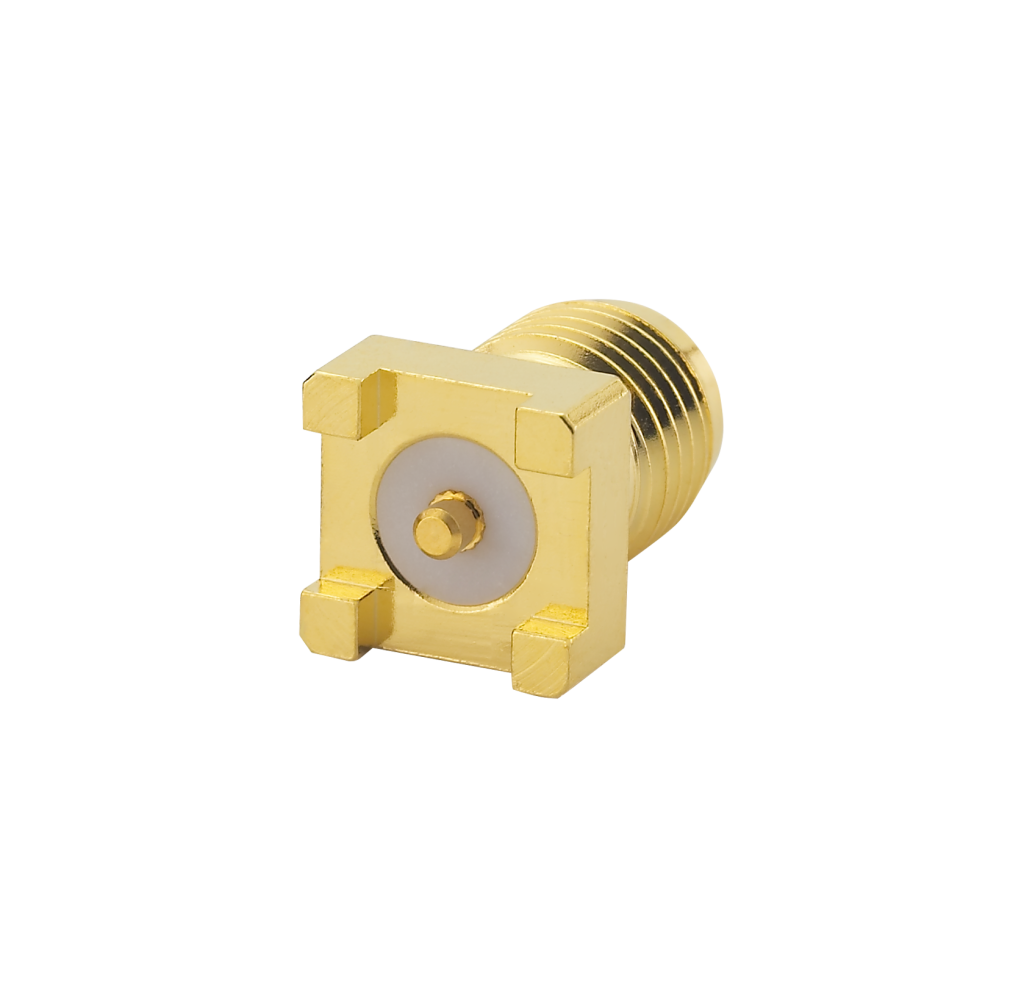

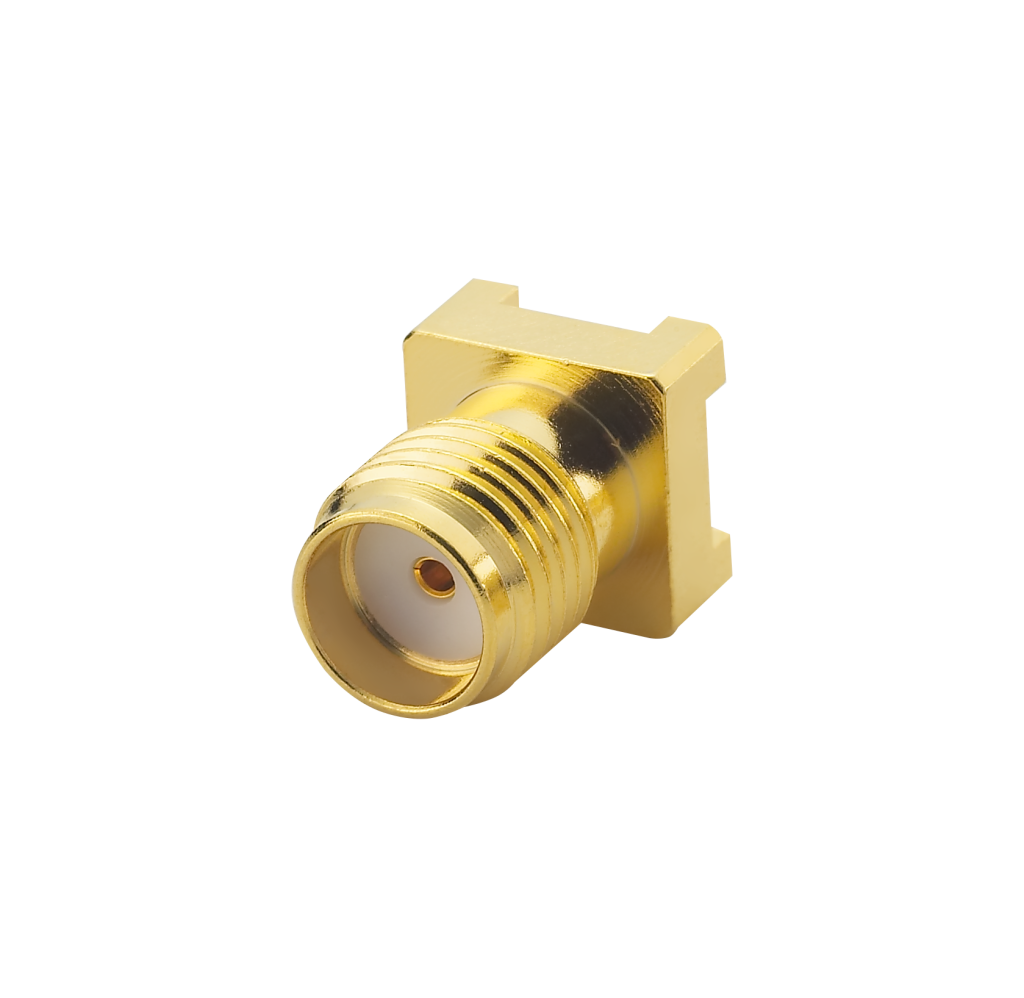

Image EMPCB.SMAFSTJ.B.HT

EMPCB.SMAFSTJ.B.HT

SMA Straight PCB Edge Mount/End Launch, Jack, Gold, 50Ω, Connector Solder Attachment

Overview

The EMPCB.SMAFSTJ.B.HT connector was designed to be mounted on a PCB edge. The edge mount configuration allows the connector to be easily slotted onto a PCB board; the maximum thickness of PCB that the connector can be used with is 0.8mm. The connector pin is directly soldered onto pads on the PCB. The connector is a standard SMA (F) Jack. The SMA connector is the most popular type connector for RF applications. Taoglas connectors are all RoHS compliant

Technical Specification
Name Value
Connector Style Straight
Connector Type SMA
Contact Termination PCB Edge
Shield Termination N
Impedance 50
Mounting Type SMD/SMT
Frequency - Max (GHz) 18
Number of Ports 1
Housing Color Gold
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
