TMJG27037A4NL – RJ45 ICM 1G Base-T 2×2 Ports

RJ45 connector with integrated magnetics 1G Base-T.
2×2 Ports with THT mount and LEDs.



  • 2×2 Configuration
  • 3 Wire + Transformer
  • Voltage/Current Drive
  • Shielded EMI Finger
  • Board guide
  • Industrial grade

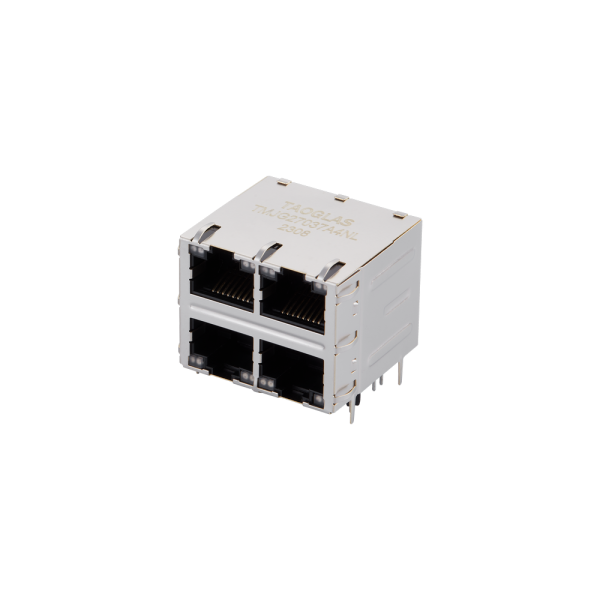

Image TMJG27037A4NL


TMJG27037A4NL – RJ45 ICM 1G Base-T 2×2 Ports


Right Angle (90 Degree) RJ45 Connector with Integrated Magnetics

Featuring a popular footprint and compatible package to industry RJ45 Integrated Connectors standards, the Taoglas TMJG27037A4NL is an RJ45 Integrated Connector 1G Base-T 2×2 Ports with shielded EMI Finger and Short Body design that offers extra space.

Typical Applications of Right Angle 1G Base-T RJ45 Connectors Include:

  • Industrial Automation
  • Hubs
  • Routers
  • Switches
  • Wireless Access Points

Taoglas Magnetics offer an extensive product line of RJ45 Integrated Connectors designed for commercial and industrial grade applications, supporting 10/100 Base-T (Atmos100 Series) and 1G Base-T (Atmos1000 series). These surface mount or through-hole components provide reliable performance and maintain signal integrity that meets IEEE 802.3 standards, and they are UL certified. The Power over Ethernet options are also available including PoE, PoE+ and PoE++.

The majority of Taoglas RJ45 ICMs are manufactured with fully automated winding, assembly & testing to ensure consistent performance, quality and reliability while ensuring cost competitiveness for its customers. These products are fully compliant with the REACH and RoHS directive, and compatible with all major PHY vendors.

For customized products or support with integration, contact your regional Taoglas customer support team for further information.

All Taoglas magnetic products are UL Certified.

Technical Specification
Name Value
Speed 1G Base-T
Turns Ratio -
Primary Secondary
Inductance 350µH
Configuration 2x2
Tab Direction Up and Down
PoE rating Non-Poe
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Shielding Shielded, EMI Finger
Mounting Angle Right Angle
Gold Plating Thickness 6µ"
Mounting Style THT
Length (mm) 28.4
Width (mm) 31.24
Height (mm) 25.79
