ABOUT THE SERIES
Taoglas Olympian Series
At Taoglas, we don’t just build antennas – we engineer solutions. The Olympian Series was born from real-world customer challenges, delivering rugged, compact, high-performance antennas for permanent installation. Available in three models – Olympian, Olympian II, and Olympian III – this series offers a range of configurations including 5G or LTE MIMO, GNSS, multiband GNSS, and Wi-Fi to meet diverse connectivity needs.
Designed to work seamlessly on both metal and plastic enclosures, the Olympian Series solves issues like GNSS instability and cable radiation in compact spaces. Each model features a vandal-resistant, IP67-rated housing that ensures durability without sacrificing performance. Whether you’re enabling smart infrastructure, telematics, or industrial IoT deployments, the Olympian Series is engineered to deliver reliable connectivity in even the harshest environments.
Why Choose Olympian Antennas?
- Built from real customer feedback: Designed to address common installation pain points like signal dropouts and surface compatibility.
- Compact, rugged, and versatile: IP67-rated, vandal-resistant housing works on metal and plastic enclosures without performance loss.
- Broad connectivity options: Supports 5G/LTE MIMO, GNSS, and Wi-Fi, enabling seamless integration across IoT and industrial applications.
Series Information
Key Specifications
| Antennas: | 5G/4G cellular – 600-6000 MHz |
| Wi-Fi® - 2.4/5.8/7.1 GHz | |
| GNSS – Multiband L1/L5 |
| Dimensions: | Height | Length | Width |
| Olympian III | 70 mm | 60 mm | 60 mm |
| Olympian II | 39 mm** | 50 mm | 50 mm |
| Olympian | 48 mm | 50 mm | 50 mm |
| Cables: | |
| Olympian III | TGC-1.5DS |
| Olympian II | RG-174 |
| Olympian | RG-178*** |
| Weight: | |
| Olympian III | 130 g |
| Olympian II | 100 g (G45 – 75g) |
| Olympian | 66 g (MA140 – 160 g) |
** MA147height is 63 mm
*** MA140 uses RG-174 cable
Product Configuration
Several configurations are available as standard, see below.
• MA183 - Olympian III 3-in-1 2x cellular MIMO, 1x Wi-Fi®
• MA182 - Olympian III 2-in-1 2x cellular MIMO
• MA181 - Olympian III 3-in-1 1x GNSS, 2x cellular MIMO
• MA147 - Olympian II 2-in-1 1x cellular, 1x Wi-Fi®
• MA145 - Olympian II 3-in-1 1x GNSS, 1x cellular, 1x Wi-Fi®
• G45 - Olympian II 1x cellular
• MA140 - Olympian 2-in-1 1x GNSS, 1x cellular
• G30 - Olympian 1x cellular

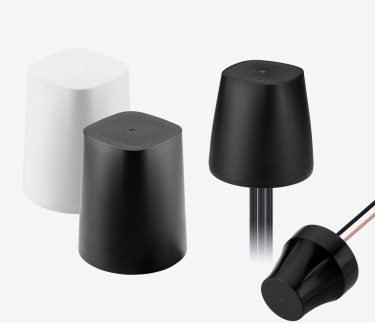

Both black and white enclosures are available for all Olympian III versions. Wall mounts are available for the Olympian, and Olympian II. Other configurations are available upon request, contact your local Taoglas customer service team for more information.
Integration
Proper installation of the Olympian series antennas is essential to maintain the waterproof integrity of the enclosure and to ensure optimal performance across all antenna elements.

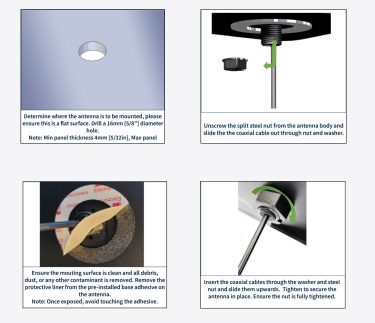

Typical Integration Steps:
1. Mounting Location
The Olympian antenna is secured via a 12 mm diameter threaded mounting stud. A 13.5 to 15 mm hole will need to be drilled in the enclosure.
2. Surface Preparation
Clean and dry the mounting surface thoroughly to ensure a secure seal. Route the cables through the hole.
3. Antenna Placement
Remove the 3M adhesive backing from the base of the antenna (only available with Olympian III models). Position the antenna in the desired orientation and press firmly into place.
4. Securing the Antenna
From inside the enclosure, slide the washer and nut over the cable bundle and tighten to secure the antenna firmly.
Features
• Three models in the series offering various combinations • GNSS, Wi-Fi®/Bluetooth®, cellular • Permanent M12 bolt mount • Compact, sleek, and robust design • IP67 rated vandal-resistant enclosure with O-Ring to prevent water ingress
Benefits
• Deliver consistent GNSS, Wi-Fi and 5G/4G MIMO performance • Work reliably on both metal and plastic surfaces/enclosures • Eliminate cable radiation issues seen with smaller antenna installations • Be compact, without compromising IP67 protection
Typical Applications
• Smart Metering • EV Chargers • Digital Signage • Transportation and Telematics • Vending machines
