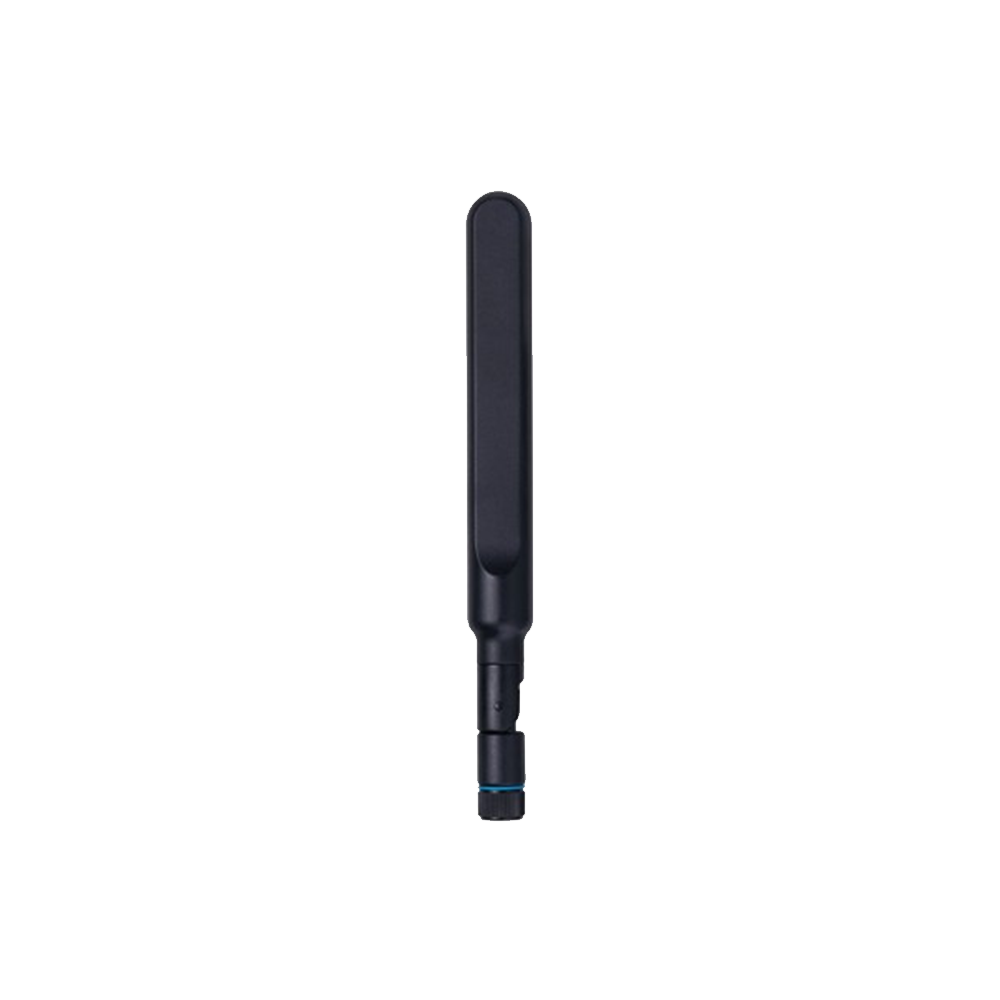

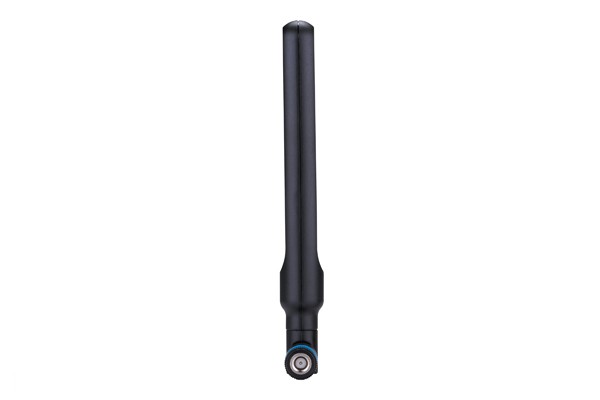

Triton TG.10R 4G/3G/2G Terminal Antenna with 10kOhm diagnostic Resistor

TG.10R.A.0113

Dipole Terminal Antenna
Hinged SMA(M) Connector
Length 168mm, Φ13mm
AntD© Shunt 10k Ohm Chip Resistor Inside
RoHS compliant
Dims: 168*18*13mm, Ø: 13mm

Image TG.10R.A.0113

TG.10R.A.0113

Triton TG.10R 4G/3G/2G Terminal Antenna with 10kOhm diagnostic Resistor

Overview

The TG.10R Triton Dipole Antenna with AntD© Resistor – is primarily designed for use with CDMA modules with assisted GPS. It does not require a ground-plane to connect to. It has a quality robust PUS housing for use with wireless terminals. The antenna has a SMA(M) connector. It can be used straight or hinged 90 degrees. The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI.

AntD© allows connected radio products using the latest cellular modules and recommended circuits from Telit and uBlox to perform diagnostics on the antenna. This includes detection that the proper antenna is connected and that the connection isn’t shorted or broken. Contact Taoglas engineering for examples on how to implement AntD© antenna diagnostics in your product.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 2.37
Length (mm) 18
Width (mm) 18
Height (mm) 168
Weight (g) 21
