TU.60.3H31 – UWB 3dBi Terminal Mount Antenna covering 3.5-8GHz


Frequency covered: 3.5-8GHz
Covering USA and European UWB Channels 2-7
Dipole Antenna – No Ground Plane Required
Rugged ABS, IP67 Rated Enclosure
N Type Male Connector
Dimensions: Length 123.5mm, Ø22.8mm
RoHS & Reach Compliant

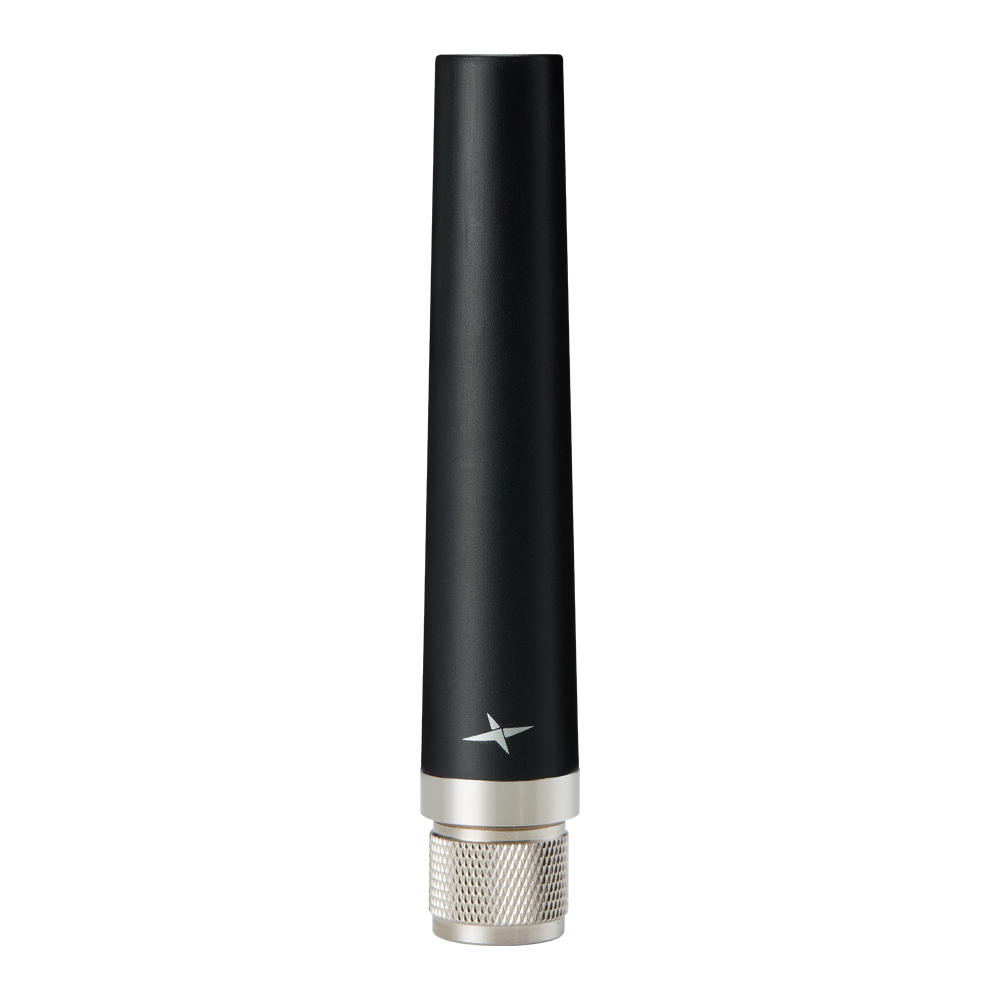

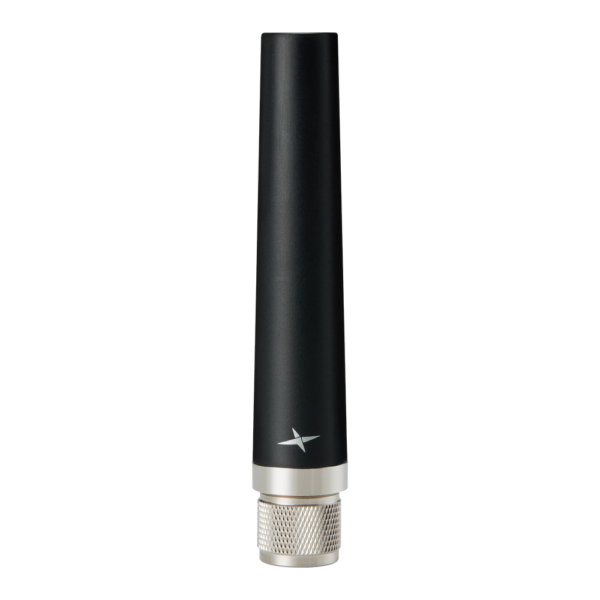

Image TU.60.3H31


TU.60.3H31 – UWB 3dBi Terminal Mount Antenna covering 3.5-8GHz


UWB Terminal Mount Antenna 3.5-8GHz

The Taoglas TU.60 is a unique dipole terminal ultra-wideband (known as UWB) antenna designed to cover all worldwide UWB frequencies between 3.5 and 8 GHz. With excellent efficiency and an omnidirectional radiation pattern with 3 dBi gain, it provides strong, homogeneous coverage in all directions from the sensor. The TU.60 also shows excellent fidelity factor numbers and low group delay variation to preserve maximum signal integrity.

The potential of UWB is enabling a wave of applications that use highly accurate, ultra-reliable location, and distance sensing to deliver new experiences and capabilities. It operates with low power for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances up to 250m with latency speeds as low as 1ms. The low power requirements of UWB results in the increased battery life of sensors and tags which in turn reduces overall operational costs. The TU.60 exhibits exceptional efficiencies of up to 91% on specific bands.

Typical Applications Include:
• Indoor position location and tracking applications
• Smart home device control and entertainment systems
• Keyless entry systems
• Precision surveying

The TU.60 is a powerful antenna packaged in a small IP67 rated enclosure that is manufactured from ABS which makes it an ideal ruggedized solution for both indoor and outdoor environments. It comes with an N-Type connector as standard for robust and easy installation. The connector can be customized subject to NRE.

The TU.60 is one of several Taoglas-developed antennas designed for seamless integration and compatibility with any UWB sensor module on the market. Contact your regional Taoglas customer support team for further information.

Technical Specification
Name Value
Antenna Type External Antennas, UWB
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Circular
Frequency Range 3000-10000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 6.5
Length (mm) 22.8
Width (mm) 22.8
Height (mm) 123.5
Weight (g) 52
