Unifier GGBLA.01 GPS/GLONASS/GALILEO/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm


Unifier 3.3dBi GPS/GLONASS/GALILEO/BeiDou Miniature Ceramic Loop Antenna
Low Profile
SMD Process Compatible
Dimensions: 3.2*1.6*0.5mm
RoHS and REACH Compliant

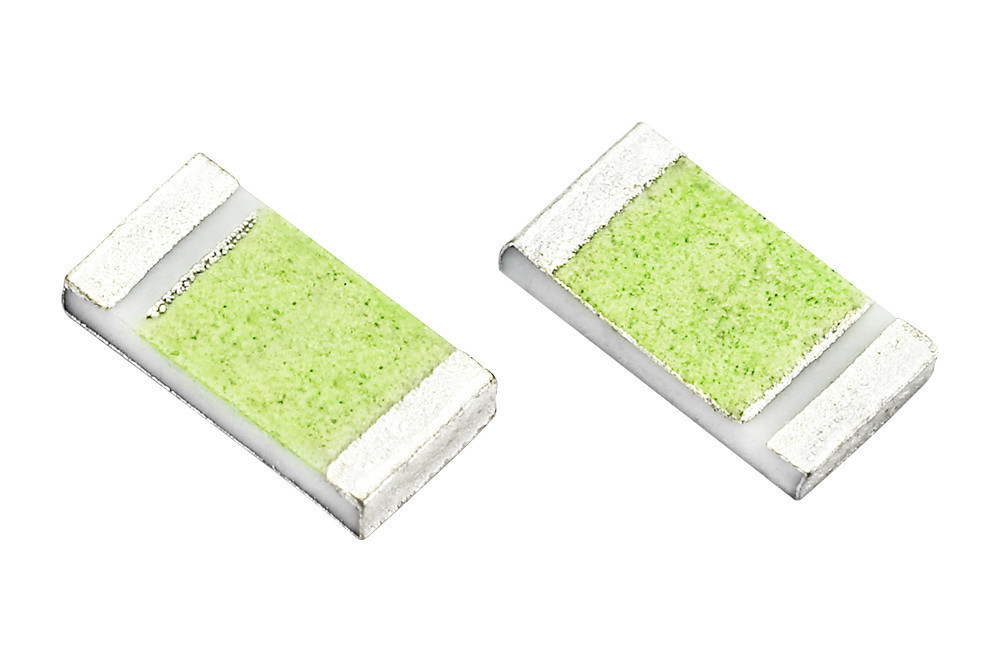

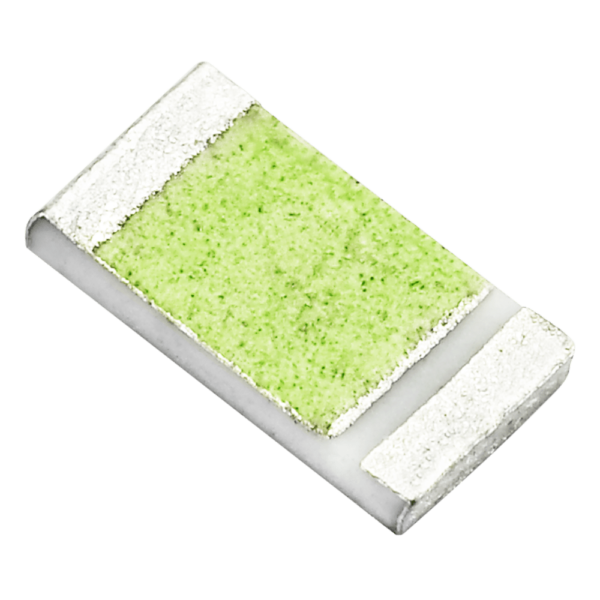

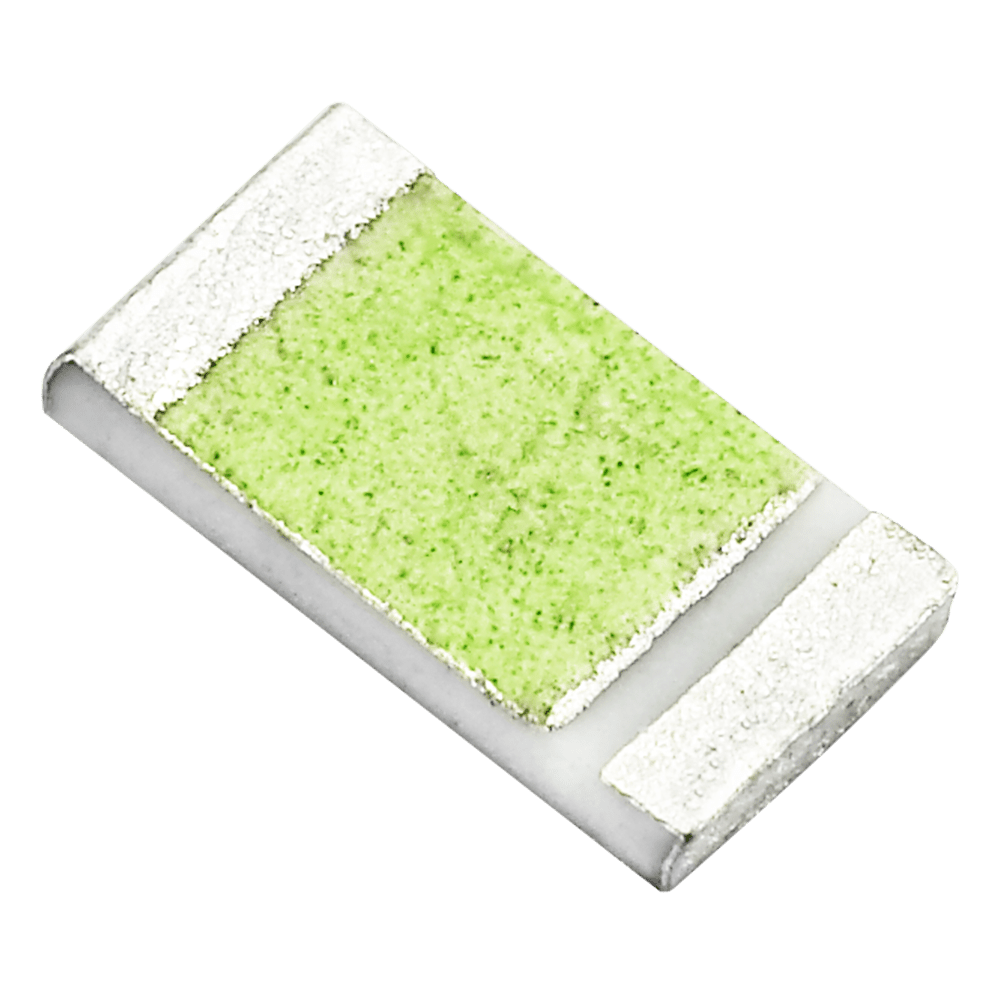

Image GGBLA.01.A


Unifier GGBLA.01 GPS/GLONASS/GALILEO/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm

Ceramic Miniature Loop Antenna Series

Taoglas have developed a unique ceramic miniature loop antenna series for GPS-GLONASS-GALILEO-BEIDOU applications. At 3.2*1.6*0.5mm, the Unifier GGBLA.01.A Loop antenna is a miniature edge mounted SMD antenna, designed for small space requirements. Typical applications are small sized automotive navigation or position tracking systems and hand-held devices when GNSS function is needed.

Omnidirectional Patch Antenna

The radiation pattern is more omnidirectional than traditional patch antennas. The Unifier antenna series-wide bandwidth allows high efficiency, stable reception on all three GPS, GLONASS and BeiDou bands from 1555MHz to 1602MHz. Efficiencies of 64% to 85% are achievable. Peak gain of 3.3dBi places this antenna gain performance within the range of a much larger 15mm to 18mm patch antennas.

Based on the loop effect this antenna works best when placed on the center of the edge of the board, but can still work better than traditional linear polarized chip antennas even when placed at corners as a substitute. The Unifier GGBLA.01.A is delivered on tape and reel and now allows M2M customers to use an omnidirectional antenna in devices where the orientation of the product is unknown. Like all small antennas, care must be taken to ensure the device ground-plane layout and antenna matching has been done correctly, Taoglas offers professional Gerber review, transmission line design, general integration support and final matching service of the GGBLA.01.A on your device board at our regional labs worldwide.

Contact your regional Taoglas sales office for immediate support.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Chip
Gain (Max) 3.3
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity Linear
Frequency Range 1559MHz - 1610MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Reel
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 3.2
Width (mm) 1.6
Height (mm) 0.5
Weight (g) 0.1
