WM.43.A.305111 – Cyclops 433MHz 0dBi Wall Mount Flexible Whip Antenna

WM.43.A.305111

ISM 433MHz Whip Antenna
Wall-Mount Bracket
More than 50% efficiency
Flexible Inner Steel Core Whip
IP65 Waterproof
SMA(M) ST connector standard
3m Low loss CFD-200 cable standard
Cable is hidden internally in the Bracket
RoHS & Reach Compliant

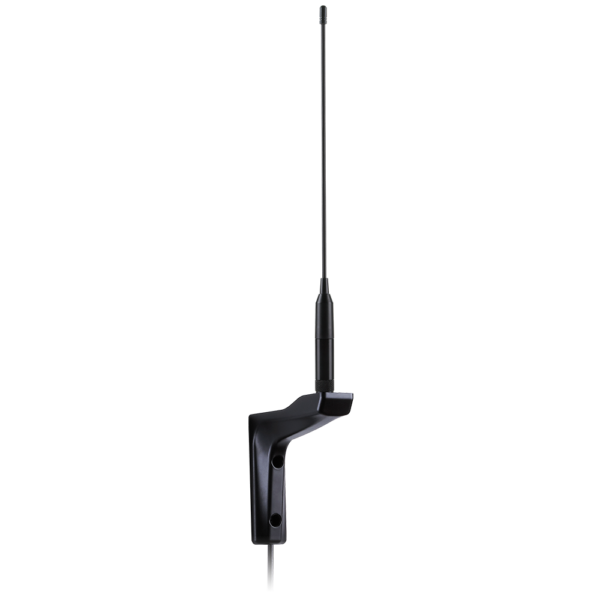

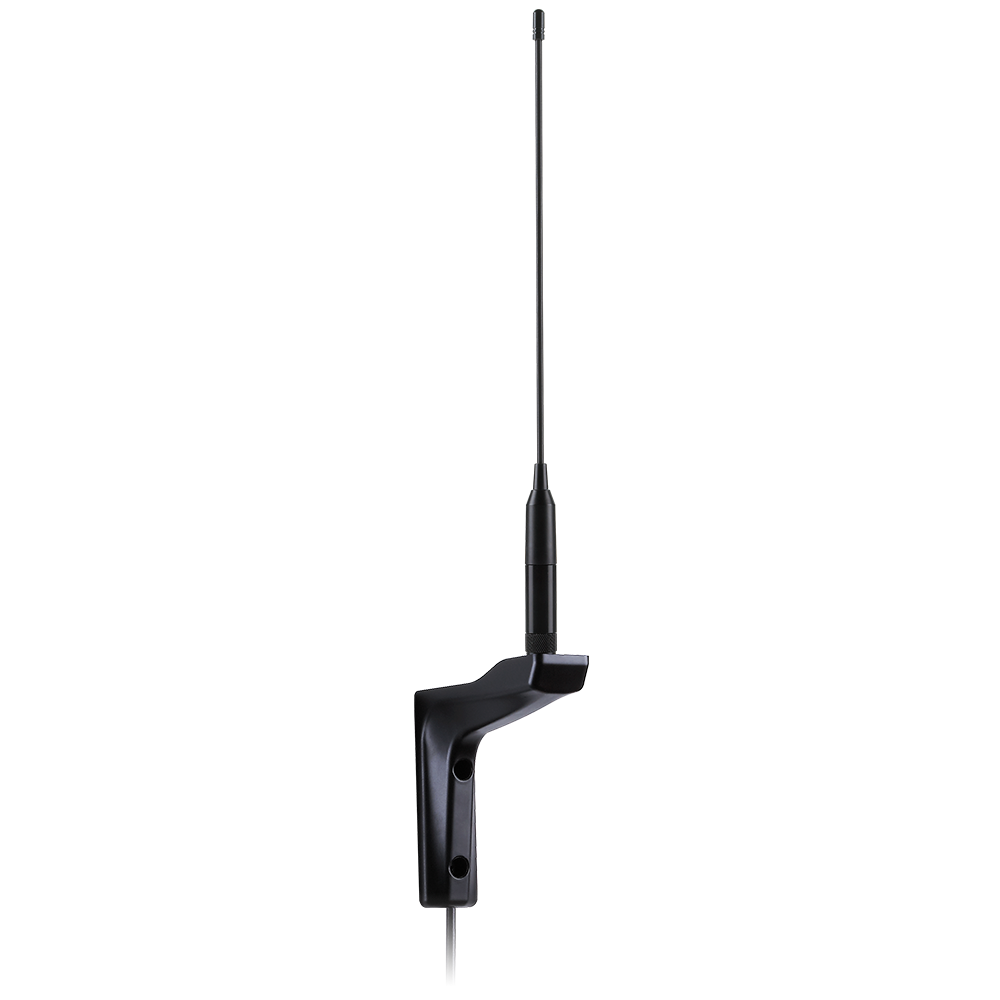

Image WM.43.A.305111

WM.43.A.305111

WM.43.A.305111 – Cyclops 433MHz 0dBi Wall Mount Flexible Whip Antenna

Overview

Cyclops 433MHz Wall Mount Flexible Whip Antenna

The WM.43 is a 0dBi wall mount flexible omnidirectional whip. This antenna is optimized for the 433 MHz ISM band. Common applications are wireless sensor monitoring, smart metering, wireless M-Bus metering, remote asset monitoring, and security systems. The radiation pattern is omnidirectional in the azimuth, allowing for large coverage range in typical indoor or outdoor installations.

Typical Applications include:
-Remote Monitoring
-Smart Metering
-Smart City

This antenna has more than 60% efficiency while fixed on the L-bracket. The whip is made up of a flexible inner steel core covered by TPU, so it is extremely resistant to collisions and maintaining its original shape and RF performance. The whip and the internal connection to the bracket is completely IP67 waterproof. The whip can be removed by unscrewing. The bracket allows complete concealment of the cable for a more secure integration and cleaner installation. The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism. The standard version comes with 3 metres of extremely low loss CFD-200 cable (0.3dB against 0.7dB for RG58) to allow for flexibility of placement.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 433MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 3.11
Length (mm) 16
Width (mm) 16
Height (mm) 324
Weight (g) 330
