WM.86.A.305111 – 2.5dBi Cyclops 868MHz Wall Mount Flexible Whip Antenna

WM.86.A.305111

ISM 868MHz Whip Antenna
Wall-Mount Bracket
Flexible Inner Steel Core Whip
2.5dBi Peak Gain
High Efficiency – Over 50%
IP65 Waterproof
SMA(M) ST connector
3m Low loss CFD-200 cable
The cable is hidden internally in the Bracket
RoHS & REACH Compliant

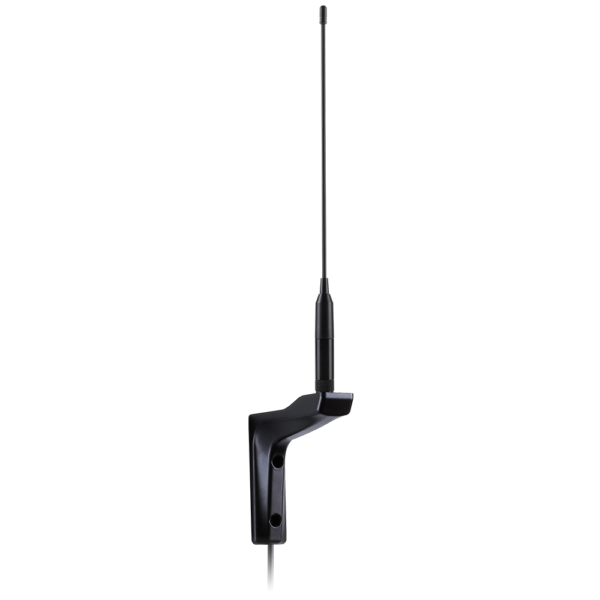

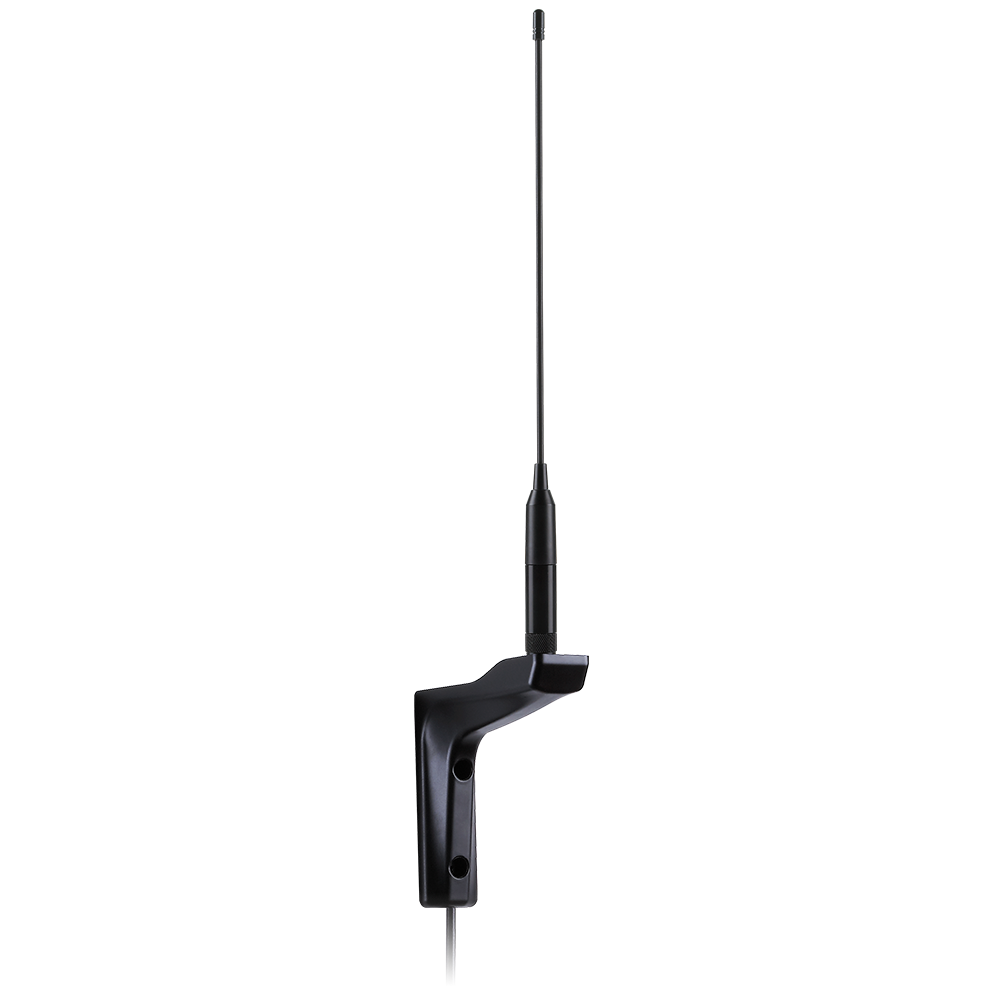

Image WM.86.A.305111

WM.86.A.305111

WM.86.A.305111 – 2.5dBi Cyclops 868MHz Wall Mount Flexible Whip Antenna

Overview

Cyclops 868MHz Wall Mount Flexible Whip Antenna

The WM.86 is a high efficiency(over 50%)868MHzflexible whip antenna with a screw mounted wall mount L bracket. The radiation pattern is omnidirectional in the azimuth, allowing for large coverage range in typical indoor or outdoor installations. Peak gain, average gain/efficiency are both optimized to provide extended coverage area in the azimuth (horizontal direction), while also maintaining an Omni-directional pattern forclose in reception/transmission.

Typical Applications include:
-Remote Monitoring
-Connected Enterprise
-Mesh Networks

This antenna provides high efficiency while fixed on the L-bracket. The whip is made up of a flexible inner steel core covered by TPU, so it is extremely resistant to collisions and maintaining its original shape and RF performance. The whip and the internal connection to the bracket is IP65 rated waterproof. The whip can be removed by unscrewing. The bracket allows complete concealment of the cable for a more secure integration and cleaner installation. The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism. The standard version comes with 3 metres of extremely low loss CFD-200 cable (0.3dB against 0.7dB for RG-58) to allow for flexibility of placement.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Broadly Linear
Frequency Range 860-880MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 0.5
Length (mm) 16
Width (mm) 16
Height (mm) 305
Weight (g) 330
