WS.03 – Hercules Low Profile Wi-Fi 6 Permanent Mount Antenna


Low Profile Permanent Mount Antenna
Covers 2.4/5.8GHz as well as Wi-Fi 6 Frequencies: 5.9-7.125GHz
UV and Vandal Resistant ABS Housing
IP65 Rated Enclosure
Dimensions: Ø49 x 29mm
Connector: RP-SMA Male
Cable: 3m of TGC-200
RoHS & Reach Compliant

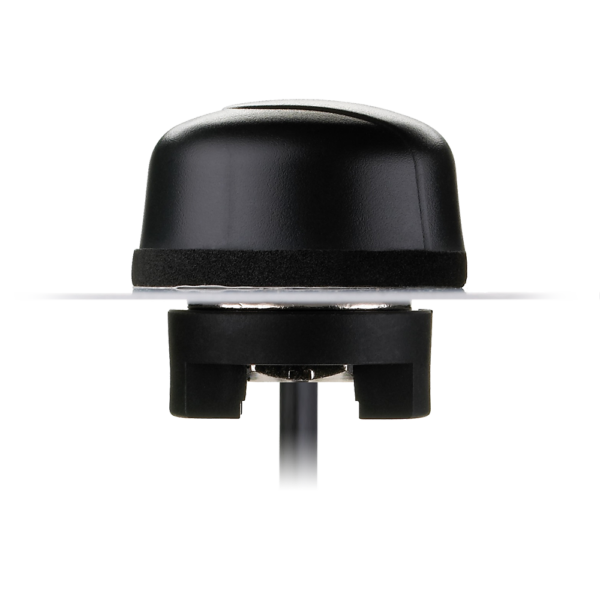

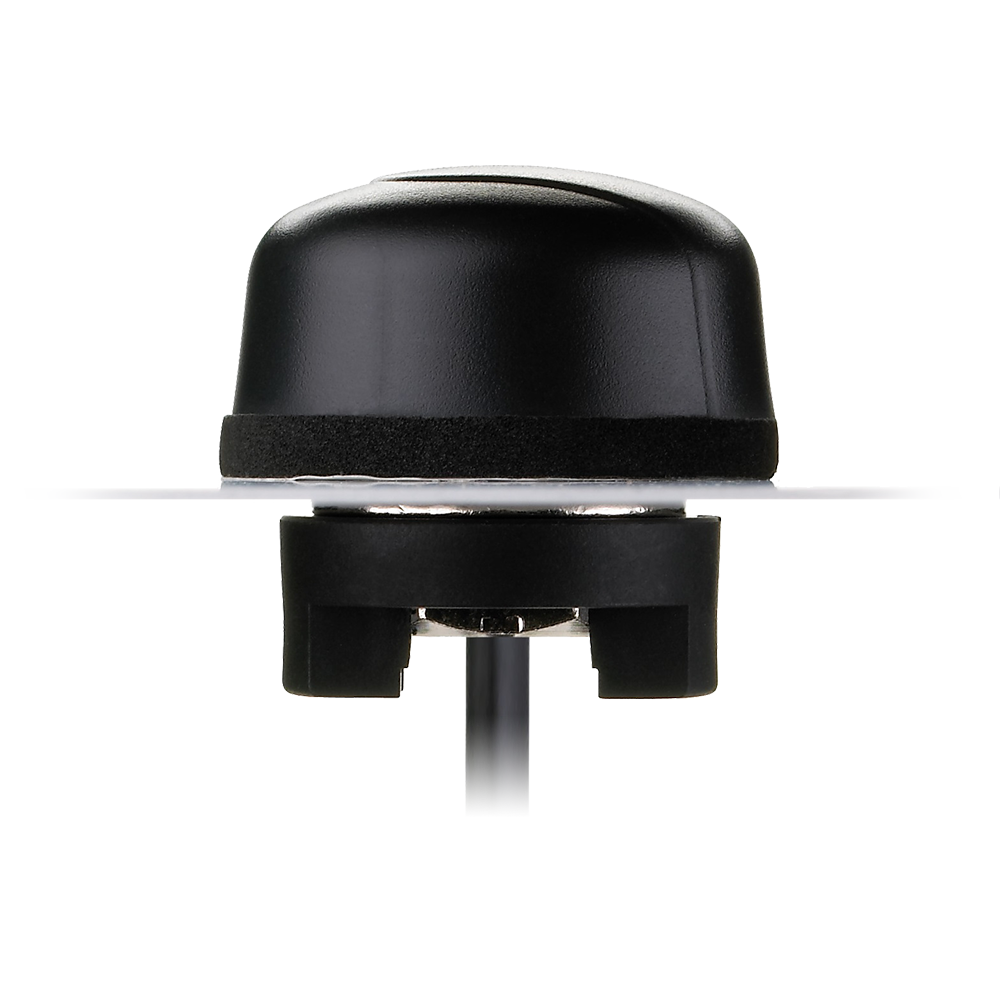

Image WS.03.B.305151


WS.03 – Hercules Low Profile Wi-Fi 6 Permanent Mount Antenna


Permanent Mount Wi-Fi 6 Antenna designed to cover the Full Wi-Fi Spectrum

The Hercules WS.03 is a high efficiency, high gain permanent mount antenna designed to cover all Wi-Fi bands including frequencies for Wi-Fi 6, up to 7.125GHz. It has omni-directional gain across both bands ensures constant reception and transmission making the WS.03 an ideal solution for varied Wi-Fi applications.

The Hercules has been designed for the most robust of use in challenging environments, with durable UV-resistant IP65 rated, ASA housing that is resistant to vandalism and with heavy duty work with extra thick thread for secure mounting.

At only 29mm high, with a diameter of 49mm, it is a covert

Typical Applications Include:
– Remote Monitoring
– Gateways and Routers
– HD Video Streaming
– Smart Cities

Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

The cable and connectors are fully customizable, for further information please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type RP-SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 2.4 / 5.8 / 7.125GHz
Connector Polarity Reverse
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP65
RoHS Yes
Gain (Max) 4.93
Wi-Fi Bands 2.4/5.8/7.125GHz
Length (mm) 49
Width (mm) 49
Height (mm) 29
Weight (g) 130
