Colosseum X – XAHP.50 Active Multi-Band GNSS External Antenna

XAHP.50.A.301111

Bands Covered:
• GPS/QZSS (L1/L2)
• GPS/QZSS/IRNSS (L5)
• QZSS (L6)
• Galileo (E1/E5a/E5b,E6)
• GLONASS (G1/G2/G3)
• BeiDou (B1/B2a/B2b/B3)
Excellent out-of-band rejection
Permanent mount, robust IP67 rated enclosure
Cable: 3m RG-174, Connector: SMA(M) Straight
Dimensions: Ø94 x 57mm
RoHS & Reach Compliant

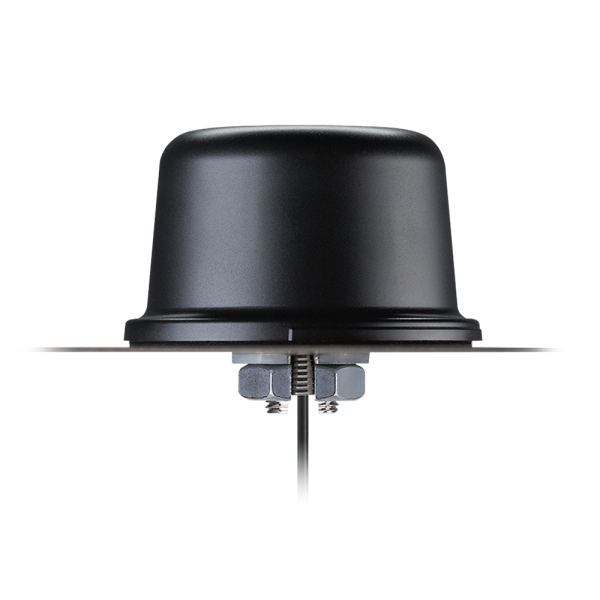

Image XAHP.50.A.301111

XAHP.50.A.301111

Colosseum X – XAHP.50 Active Multi-Band GNSS External Antenna

Overview

Active Multi-Band GNSS External Antenna

The Taoglas Colosseum X XAHP.50 is an active multi-band GNSS antenna has been carefully designed to work well on the full GNSS spectrum including GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, QZSS L6, NAVIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS). This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments. The XAHP.50 has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability.

The LNA used in the XAHP.50 ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals. The robust, vandal resistant, permanent mount IP67 rated ASA enclosure is just 57mm in height and designed for ease of installation. It can be mounted on any surface; however, performance can be affected when mounted on metal surfaces.

Typical Applications Include:
• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Inventory Management & Container tracking
• Telematics & Asset Tracking
• Timing Accuracy Synchronization

The XAHP is the latest external addition to an ongoing product road map of high precision antennas by Taoglas. For RTK applications when used on the base and/or the rover, the XAHP.50 can achieve genuine cm-level accuracy.

Cable and connectors are customizable. Please contact your regional Taoglas customer support team for further information.

Video
Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 1160 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 28
GNSS Type Active GNSS
GNSS Bands L1/L2/L5/L6
Length (mm) 94
Width (mm) 94
Height (mm) 56.5
Weight (g) 395
