DSGP.1575.12 12*12*4mm GPS L1 & GALILEO E1 Ceramic Patch

DSGP.1575.12.4.A.02

2.73 dBi Peak Gain for GPS/GALILEO Band
Dims: 12*12*4mm
SMD Direct Mount Ceramic Patch Antenna
Automotive IATF16949 Approved
RoHS and REACH compliant

Image DSGP.1575.12.4.A.02

DSGP.1575.12.4.A.02

DSGP.1575.12 12*12*4mm GPS L1 & GALILEO E1 Ceramic Patch

Overview

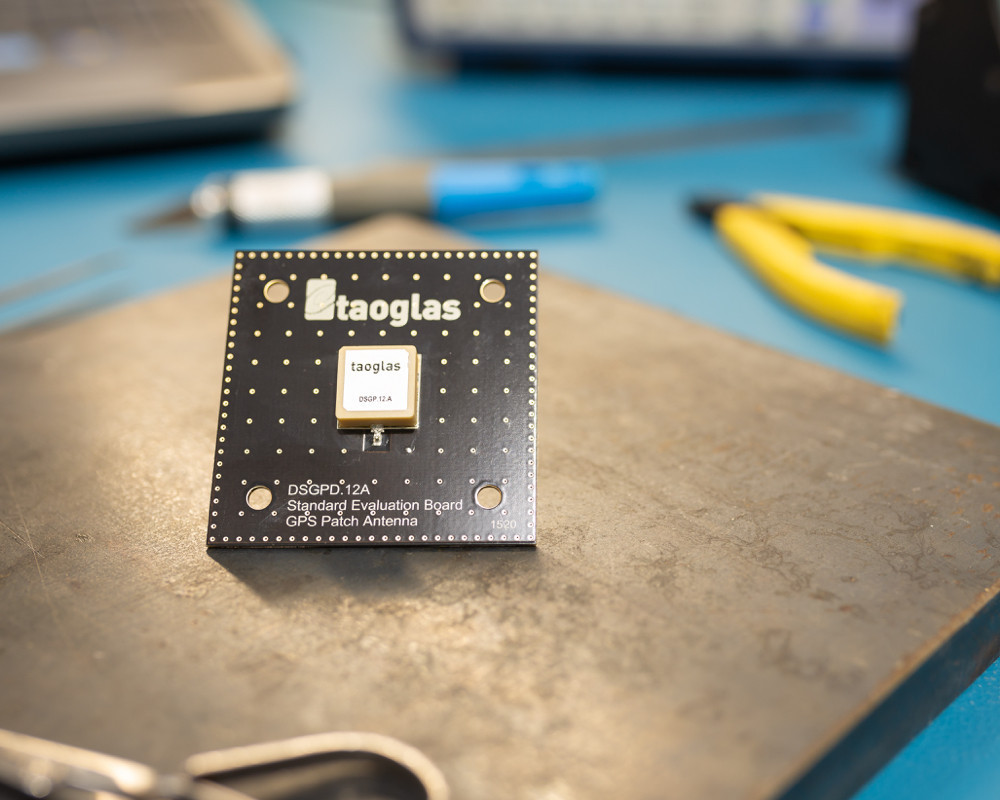

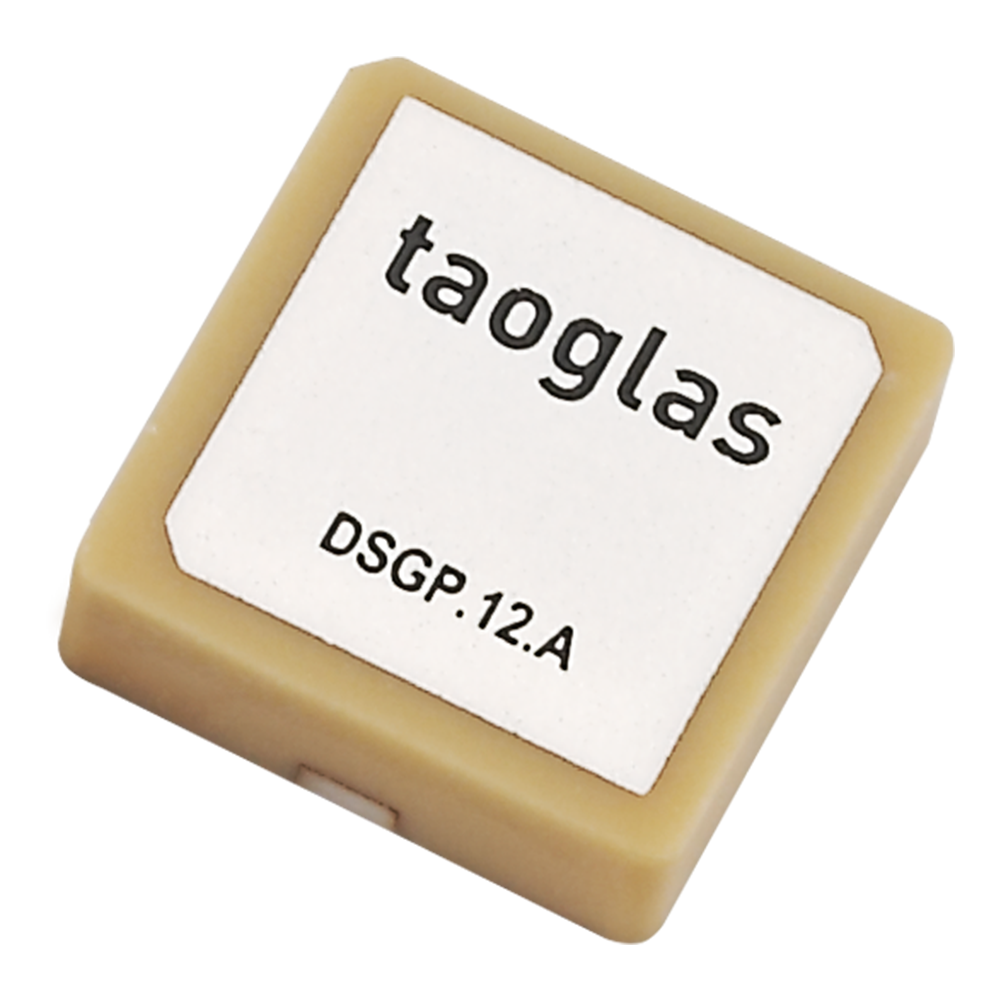

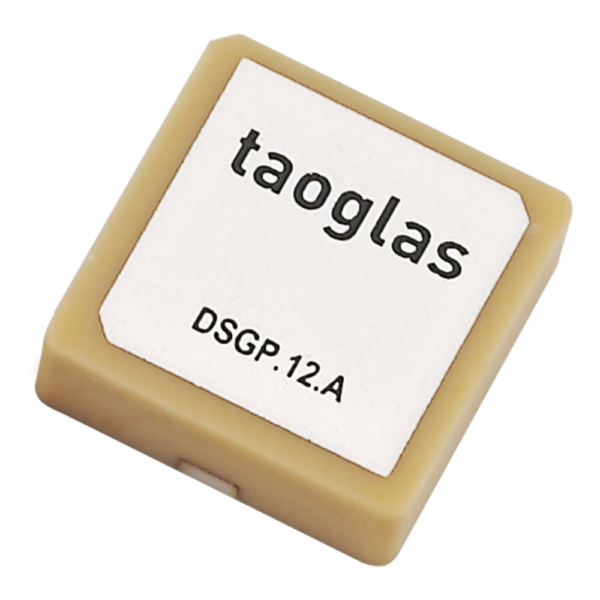

The DSGP.1575.12.4.A.02 is a ceramic GPS L1 / GALILEO E1 passive patch antenna. 12mm square and with a height of just 4mm, this antenna is perfect for applications in compact telematics devices, vehicle tracking/fleet management systems, wearables and navigation devices. The antenna has been tuned on a 50*50mm ground plane, working at 1575.42MHz with a 2.73dBi gain. The ceramic patch is mounted via SMT process, suitable for high volume low-cost assembly. The antenna is manufactured and tested in a TS16949 first tier automotive approved facility. Small antennas should ideally be custom-tuned for the device environment, Taoglas offers this service subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 2.73
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) N/A
Packaging Reel
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 12
Width (mm) 12
Height (mm) 4
Weight (g) 3.3
