900-940MHz IP67 Terminal Antenna

TI.96.A113

Covering 915MHz ISM Bands
IP67 Waterproof Enclosure
Dimensions: Ø12.7 x 203mm
Connector: SMA(M)
RoHS & Reach Compliant

Image TI.96.A113

TI.96.A113

900-940MHz IP67 Terminal Antenna

Overview

900-940MHz IP67 Terminal Antenna

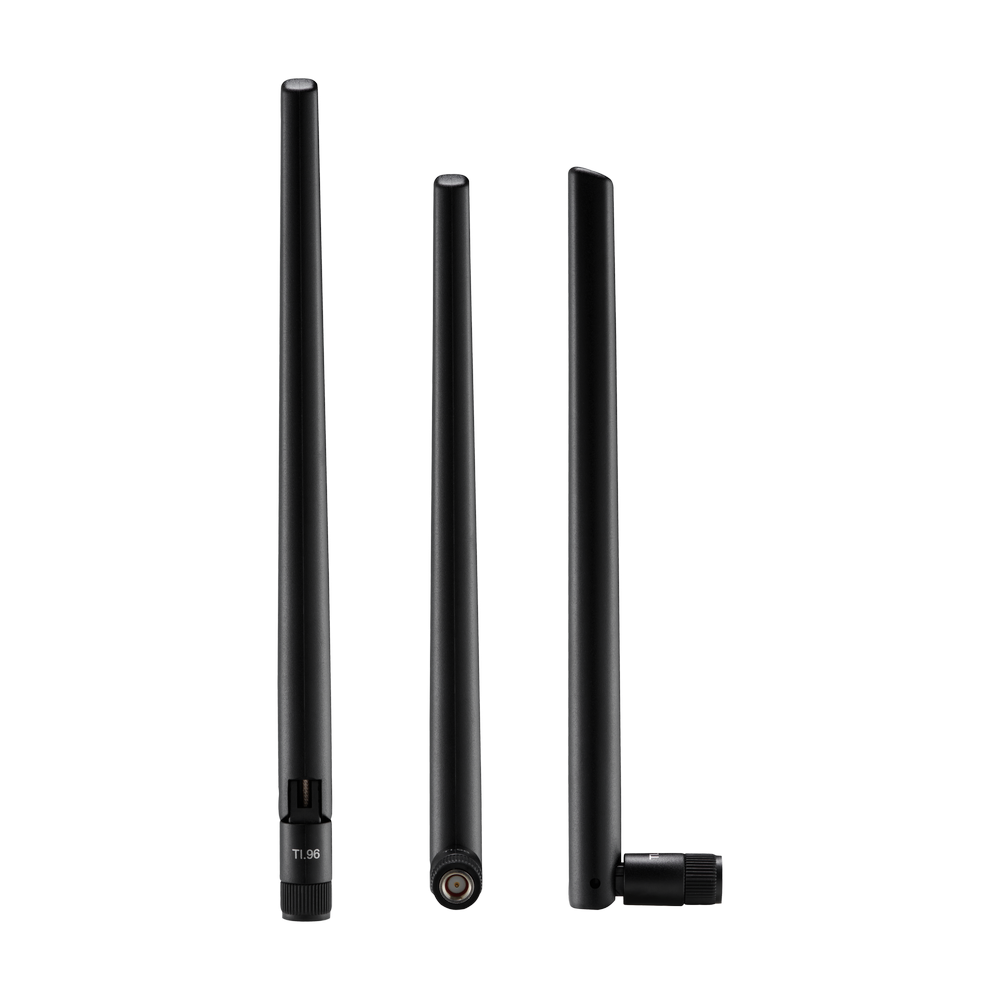

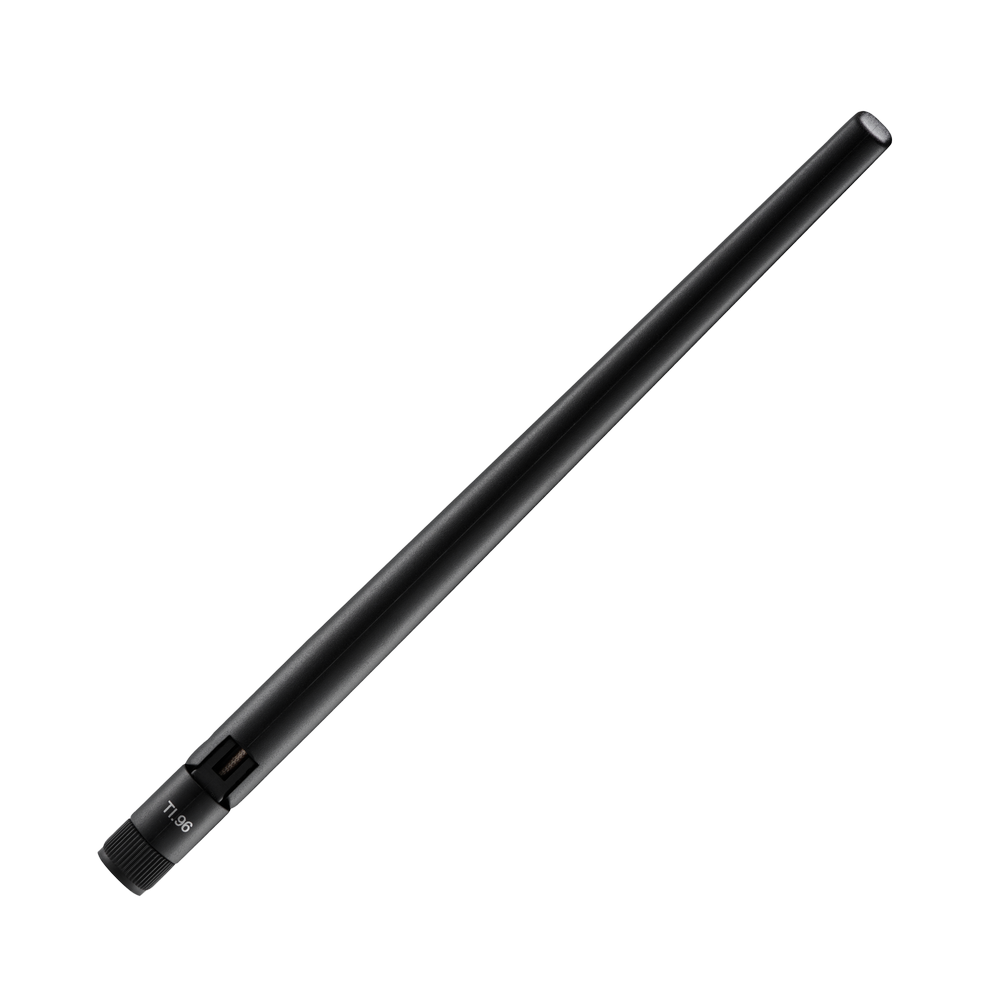

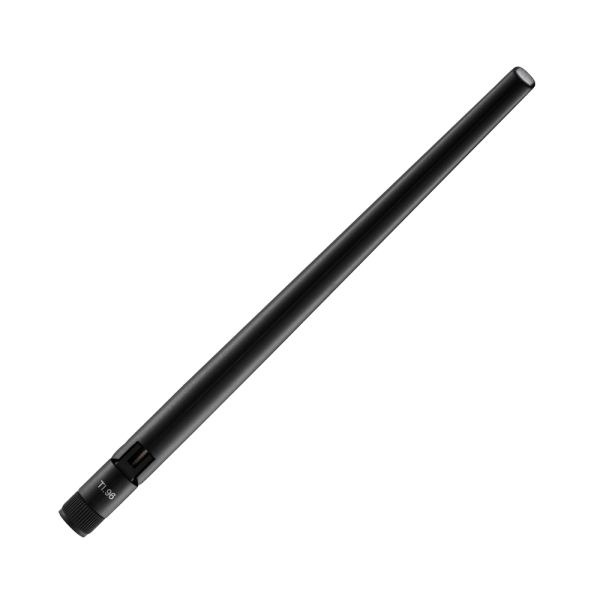

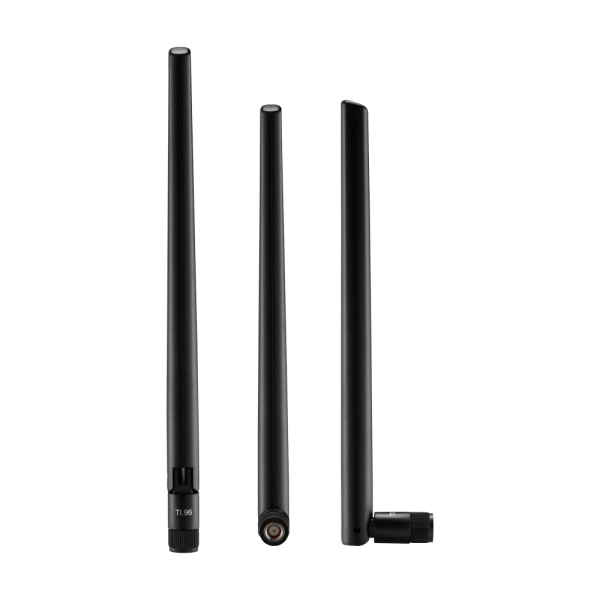

The TI.96.A113 is a high performance 915MHz Terminal mount dipole antenna, it is 203mm tall and 13mm in diameter and can be mounted straight or right angled due to its hinged SMA(M) connector which comes as standard. This antenna performs very well in free space, making it an ideal solution in areas where there may be no ground plane.

The TI.96’s IP67 Rating allows it to be used in areas where conventional Terminal mount antennas can’t be used, it can be used outdoors or indoors without the fear of water ingress.

Typical Applications include:

• Smart Metering
• Remote Monitoring
• Industrial IoT
• Connected Enterprise

The TI.96 is manufactured using TPEE which makes it very lightweight at just 22.5g. The swivel and hinge mechanism allows the antenna to be orientated in different directions which helps to avoid other antennas or objects. The antenna connector type can be customizable, please contact your regional Taoglas customer support team for installation guidelines or additional support to integrate and test this antenna’s performance in your device.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Polarity Linear
Frequency Range 900 - 930MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3.11
Length (mm) 203
Width (mm) 13
Height (mm) 13
Weight (g) 22.5
