ABOUT THE SERIES

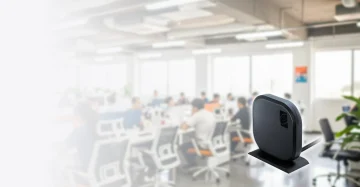

Taoglas Gemini Series
The Gemini Antenna Series is a family of high‑performance 2x cellular MIMO antennas designed to deliver reliable, high‑efficiency connectivity for 4G and 5G networks worldwide. Featuring compact industrial enclosures, excellent isolation between antenna elements, and flexible installation options, Gemini antennas are ideal for routers, access points, and connected devices operating in demanding indoor and outdoor environments.
Covering global cellular frequency bands, the Gemini series supports consistent throughput, improved link reliability, and enhanced network performance across a wide range of IoT, transportation, and industrial applications.
Why Choose Gemini Antennas?
- High‑Performance MIMO Across Global Cellular Bands: Integrated 2x MIMO antennas offer high isolation and low ECC to maximize throughput and reliability across worldwide 5G/4G networks.
- Flexible, Deployment‑Ready Antenna Design: Multiple mounting options (desktop, wall, and magnetic) combined with a compact enclosure simplify installation across a wide range of indoor and outdoor locations.
- Rugged Construction with Consistent RF Performance: Weather‑resistant IP‑rated housings and low‑loss cables ensure stable, high‑efficiency connectivity even in harsh environments or with longer cable runs.
Series Information
Key Specifications
| Antennas: | G/4G cellular – 600-6000 MHz |
| 4G/3G/2G cellular – 700-3000 MHz |
| Dimensions: | Height | Length | Width |
| 164 mm | 164 mm | 36.5 mm | |
| 6.46” | 6.46” | 1.44” |
Integration
The Gemini series antennas have a total of 3 mounting options. Typical Integration Steps: 1. Desktop Stand Slide the supplied stand into the bottom of the antenna housing, as shown in the supplied documentation. Ensure the cable is correctly positioned before fully engaging the stand. 2. Magnetic Mount The stand incorporates eight disc‑shaped magnets, providing a magnetic pull force of 11.24 kgF·cm. Install the stand following the same procedure as described for the Desktop Stand. 3. Wall Mount a. Mark the location of the first mounting hole. b. Mark a second hole 60 mm directly below the first. c. Drill two 6 mm diameter holes to a depth of 30 mm. d. Insert the supplied wall‑mount studs into the holes. e. Screw the wall‑mount screws into the studs, leaving a 2.5 mm gap between the screw head and the wall. f. Hook the back of the Gemini antenna onto the two screws using the mounting slots on the rear of the housing. More installation detail available in the Datasheet
Features
• Cellular MIMO antenna architecture • Multiple mounting options: Magnetic, Wall Mount, and Desk mount • High-efficiency antenna • Rugged, compact enclosure
Benefits
• Faster, more reliable cellular connectivity • Strong performance in weak or challenging signal environments • Simple, hassle‑free installation • Dependable indoor and outdoor operation • Future‑ready support for evolving cellular networks
Typical Applications
• Cellular routers • HD video streaming over cellular • Digital Signage • Intelligent Transportation Systems (ITS) • Smart City deployments
