915MHz ISM Band Terminal Antenna

TI.93.A111

Low-profile Terminal Antenna
902-928MHz Band Operation
IP67 Waterproof Rated
Dimensions: Ø8.9mm x 21mm
Connector: SMA(M) Straight
RoHS & Reach Compliant

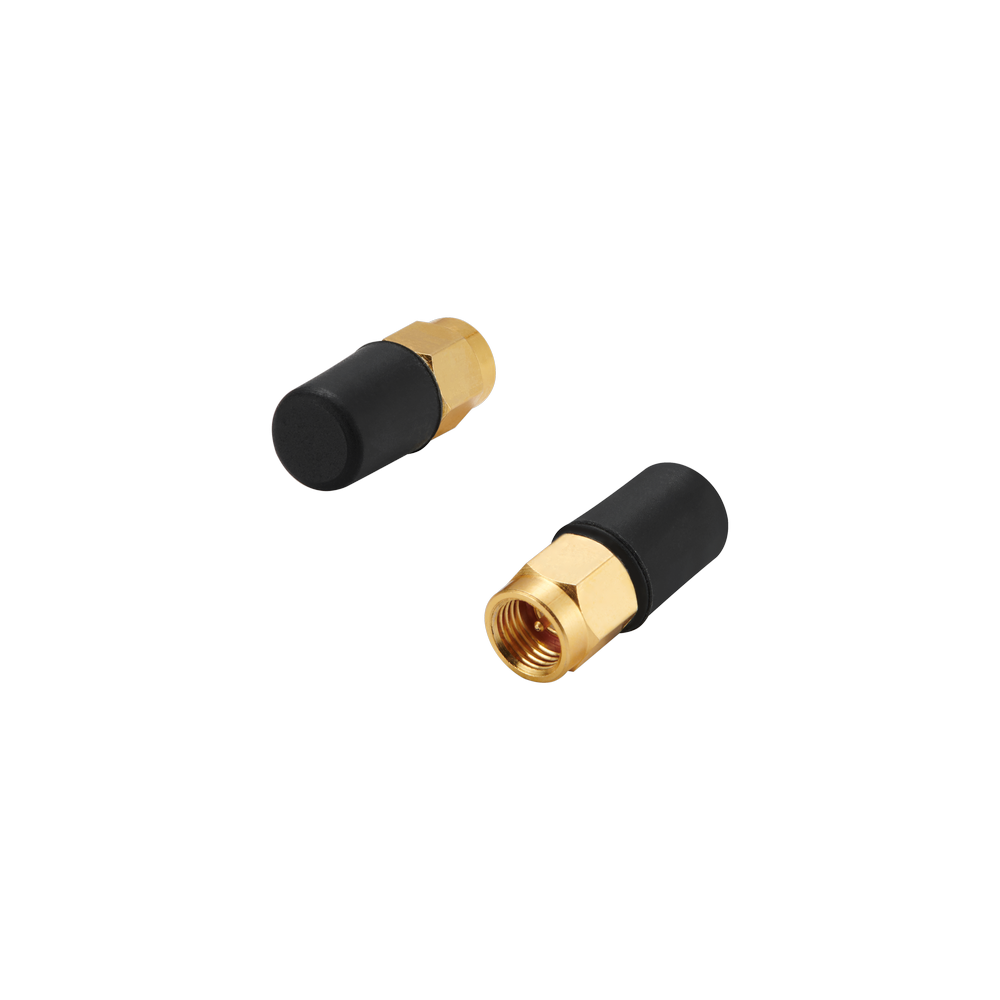

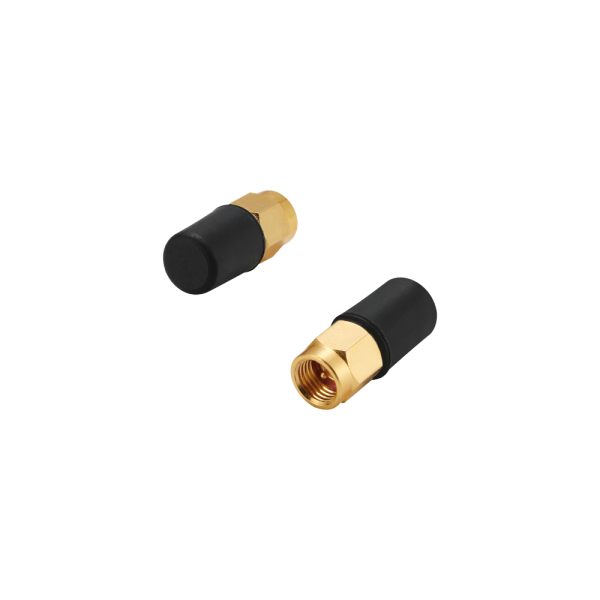

Image TI.93.A111

TI.93.A111

915MHz ISM Band Terminal Antenna

Overview

Small factor form, high performance terminal mount antenna 915MHz

The TI.93 is one of a range of super small form factor, lightweight, IP67 rated terminal mount antennas from Taoglas. It is ideal for wireless applications operating on ISM or LoRa bands covering 902-928MHz. Its robust silicone enclosure is engineered to perform in the most challenging of external environments when connecting IoT devices to smart grid and smart monitoring applications.

With its IP67 rating, the TI.93 can withstand dust, dirt, and even complete submersion in water, making it the perfect choice for any IoT application that demands both reliable connectivity and extreme durability. Whether you’re connecting sensors for remote agricultural, monitoring equipment in industrial settings, or building the infrastructure for smart cities, the TI.93 is a great solution.

If you are looking for an antenna that’s small, tough, and versatile, look no further than the TI.93. Contact your regional Taoglas Customer Services Team for more information or to discuss your project.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Polarity Linear
Frequency Range 902-928MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging Tray, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.06
Length (mm) 8.9
Width (mm) 8.9
Height (mm) 21
Weight (g) 3.3
