AA.175 – Magma X IP67 GPS L1/L2 GLONASS Magnetic Mount Antenna


GPS L1/L2 & GLONASS L1 Band Operation
Magnetic Mount
Dimensions: 53*50*17mm
Excellent Out-Of-Band Rejection
Low Noise Figure & Low Axial Ratio
Cable: 3m of RG-174
Connector: SMA(M)
IP67 Waterproof Rating
RoHS & Reach Compliant

Image AA.175.301111

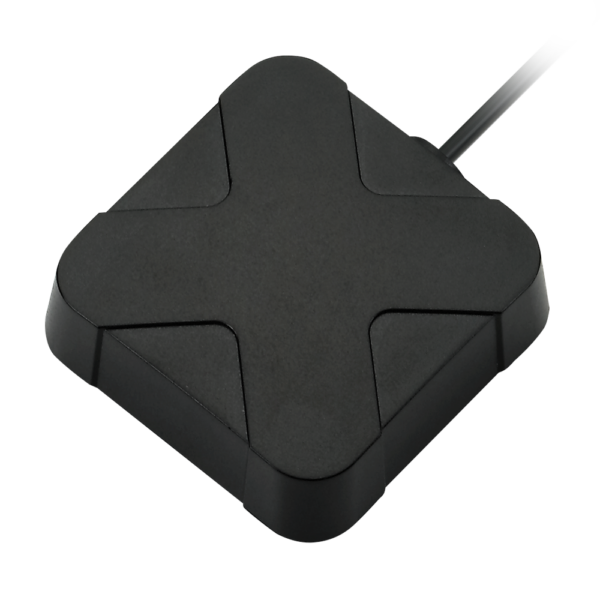

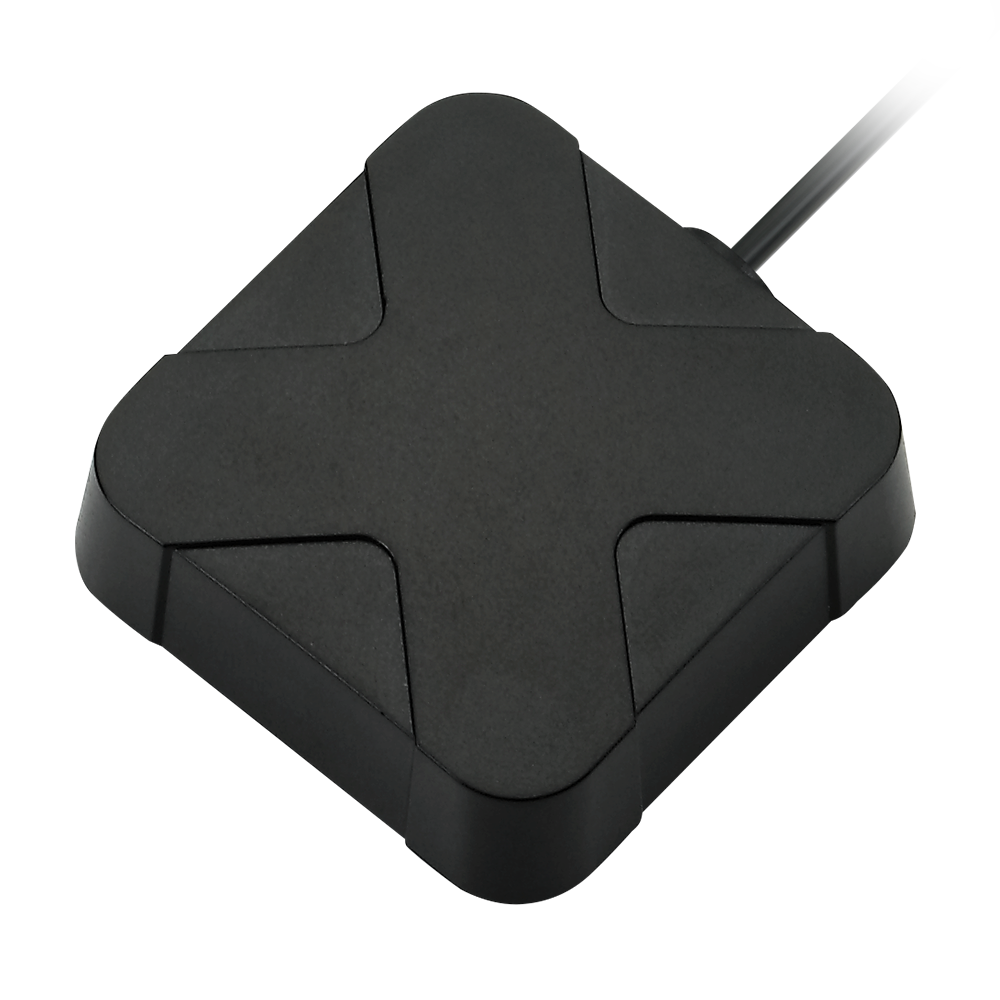

AA.175 – Magma X IP67 GPS L1/L2 GLONASS Magnetic Mount Antenna

GPS L1/L2 & GLONASS Magnetic Mount Antenna

The Taoglas Magma X AA.175, with Taoglas Sure Technology, is an embedded, active stacked patch, GPS antenna supporting both L1 and L2 bands. It is a high performance, economical solution for the highest accuracy centimetre-level tracking applications.

Typical applications include:
  • UAVs and Robotics
  • Transportation
  • Autonomous Vehicle
  • Marine
  • RTK
  • Agriculture
  • Navigation

This compact antenna exhibits excellent radiation patterns on both L1 and L2 bands and with a low noise figure to preserve signal quality helps minimize time to first fix. It also features excellent out-of-band rejection to prevent out-of-band signals from overdriving or damaging its LNAs.The AA.175features very tight Phase Centre Offset (PSO) at just ±2cm at the L1 Band and ±5cm at the L2. The precision of the antenna phase centre directly affects the accuracy of GNSS positioning systems and can ensure that the accuracy of the receiver really is cm level. This antenna has been tuned and tested on a 70 x70 mm ground plane, working at GPS L1(1575.42MHz), GPS L2(1227.6MHz) and GLONASSL1(1602MHz) with a 2 stage LNA ensuring good signal strength. It can operate with an input voltage ranging from 1.8 to 5 volts.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1559 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Carton
IP Rating IP67
RoHS Yes
Gain (Max) 28
GNSS Type Active GNSS
GNSS Bands L1/L2
Length (mm) 52.4
Width (mm) 49.8
Height (mm) 17.1
Weight (g) 98
