ADFGP.50A – Embedded Active GNSS Dual Stacked Patch Antenna, I-PEX MHF® I (U.FL)


Embedded Dual-Pin Patch for Lowest Axial Ratio
Covering Bands:
•Galileo (E1/E5a/E5b)
•BeiDou (B1/B2a/B2b)
Positional Accuracy of 76cm achievable, Positional Accuracy of 1.4cm achievable with RTK
Cable: 100mm of 1.37mm
Connector: I-PEX MHF® I (U.FL comp)
Dimensions: 50 x 50 x 16.8 mm
RoHS & Reach Compliant

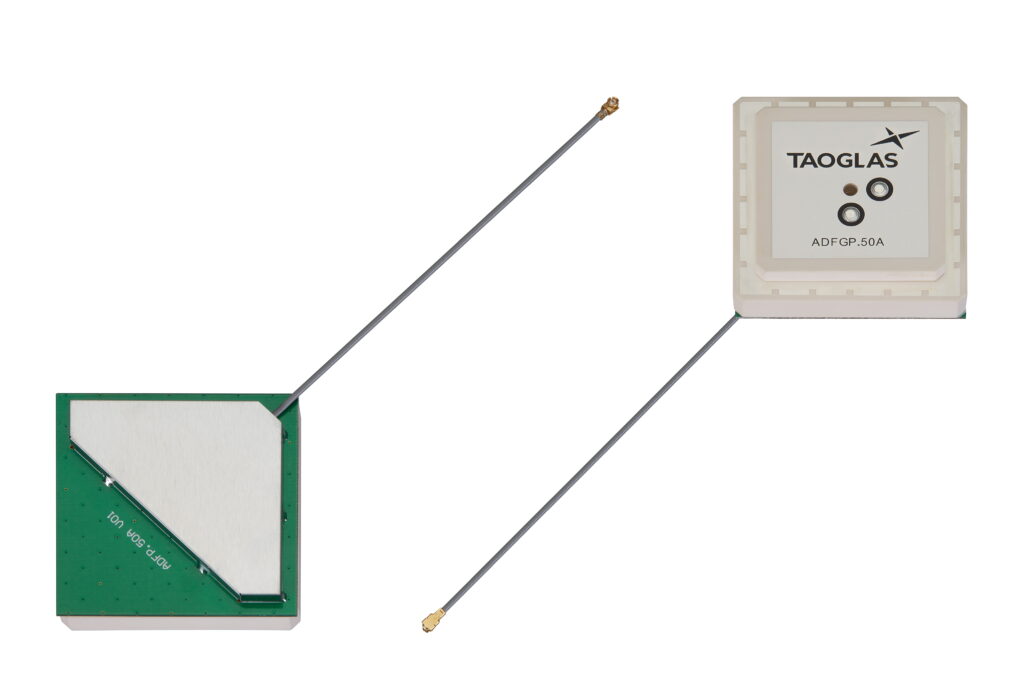

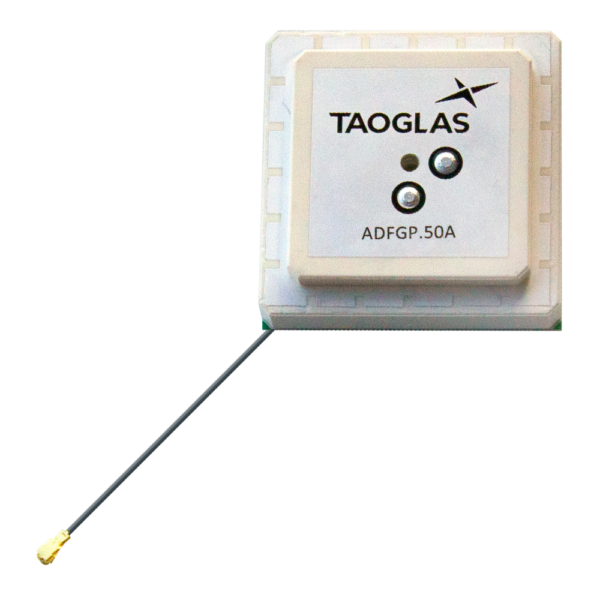

Image ADFGP.50A.07.0100C


ADFGP.50A – Embedded Active GNSS Dual Stacked Patch Antenna, I-PEX MHF® I (U.FL)


Embedded Active GNSS Dual Stacked Patch Antenna

The ADFGP.50A, with Taoglas Sure Technology, is an active dual patch, dual feed antenna for GPS L1/L2/L5, GLONASS, Galileo and BeiDou. It consists of two stacked patches, 50 and 40mm in width and at just 16.8mm thick. It has been tuned and tested on a 50*50mm ground plane specifically for GPS L1: 1575.42MHz, L2: 1227.6MHz and L5: 1176.45MHz as well as the GLONASS, Galileo and BeiDou bands shown in datasheet.

Each patch element has dual feed to ensure low axial ratio and should be used in conjunction with a hybrid coupler. The antenna exhibits excellent gain and good radiation pattern stability leading to a reliable GPS fix in areas of weaker signal strength.

The ADFGP.50A includes an LNA and front-end SAW filter to reduce out of band noise, such as from nearby cellular transceivers. It offers better protection from nearby radiated power surges and greatly reduces the probability of damaging your GNSS receiver from nearby transmissions.

Typical applications include:
• UAVs and Robotics
• Transportation
• Autonomous Vehicles
• Agriculture
• Navigation

The ADFGP.50A is connected via an IPEX MHFI® connector and works well without modifications in most environments, however, it can be tuned and optimized for different ground planes and enclosures if required. It is manufactured and tested in a TS16949 first tier automotive approved facility.

Custom antenna modifications are subject to possible NRE and minimum order quantity. For further information or support to test and integrate Taoglas Sure technology please contact your regional Taoglas customer support team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 24.2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1160MHz - 1610MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging Carton
GNSS Type Active GNSS
GNSS Bands L1/L2/L5
Length (mm) 50
Width (mm) 50
Height (mm) 16.8
Weight (g) 95.5
