SMD Mount Receptacle Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL, UMC

RECE.20279.001E.01

Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL, UMC
Mating Height: 3mm Max
Supplied on Tape & Reel 5000pcs per reel
Dimensions: 3 x 3 x 1.25 mm
Diameter: 2mm
RoHS & Reach Compliant

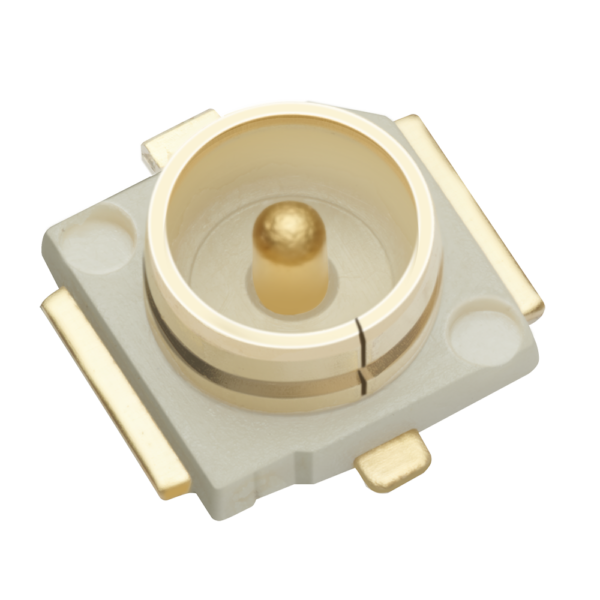

Image RECE.20279.001E.01

RECE.20279.001E.01

SMD Mount Receptacle Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL, UMC

Overview

SMD Mount Receptacle Compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL, UMC

Part of the Taoglas SMD Mount Receptacle the RECE.20279.001E.01 is a 3-pad type wire-to-board SMD receptacle that is ultra-small, lightweight and low profile, 2.5mm max. With an operational frequency range of DC to 6 GHz the RECE.20279.001E.01 is gold plated to provide superior performance and allow for ease of mounting with the male RF connector.

Packaged on tape and reel, this receptacle is designed to be placed with automatic “pick and place” equipment for ease of assembly.

The RECE.20279.001E.01 acts as a 50 Ohm transmission line to connect the micro-miniature RF connector to the printed circuit board. It is fully compatible with I-PEX MHFI, I-PEX MHFII, I-PEX MHFHT, Hirose U.FL and all other available U.FL compatible connectors.

Applicable Technologies:
RECE.20279.001E.01 receptacles are commonly integrated into cellular, GPS and wireless LAN modules.

For further information, please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Connector Style Straight
Connector Type IPEX MHFI (U.FL)
Contact Termination PCB
Shield Termination F
Impedance 50
Mounting Type SMD/SMT
Frequency - Max (GHz) 10
Number of Ports 1
Housing Color Gold
Center Contact Material Copper Alloy
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
