Apex TG.30 5G/4G White Terminal Antenna Hinged SMA(M)

TG.30.8113W

Apex – Wideband 5G/4G LTE Antenna for Cellular modules
Typical 70%+ Efficiency and 3dBi+ Peak Gain
Dipole Swivel Terminal Antenna
NO GROUND PLANE REQUIRED
Hinged 90° termination with SMA(M) Connector
Dimensions Straight: 186*49mm
Dimensions R/A: 163mm*49mm
FirstNet Ready
CE Certified for RoHS Compliance

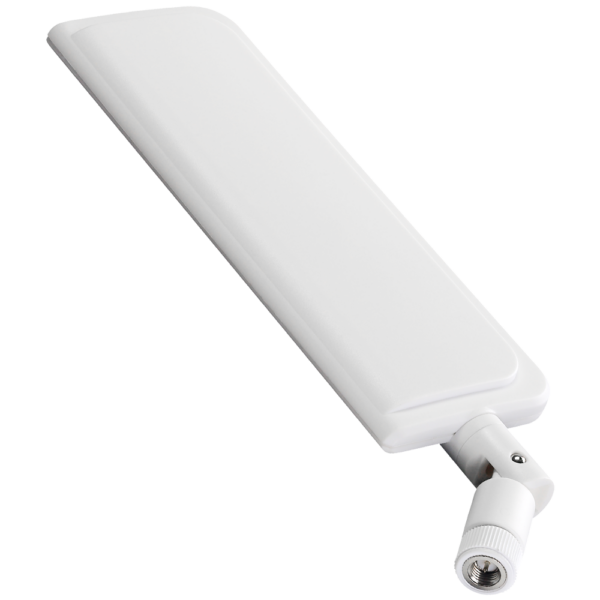

Image TG.30.8113W

TG.30.8113W

Apex TG.30 5G/4G White Terminal Antenna Hinged SMA(M)

Overview

The Apex TG.30 is an omnidirectional 5G/4G LTE antenna. This hinged connector, dipole LTE Antenna is primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain in order to deliver best-in-class throughput. Ideal for all major worldwide cellular bands, it is perfect for access points, terminals, and routers. The antenna is ground plane independent with an SMA(M) connector and swivel mechanism that allows the antenna to be rotated. The Apex is backward compatible with 3G/2G cellular applications such as GSM, LTE, UMTS, Wi-Fi, and even GPS bands for Assisted GPS and/or E911 applications. With very high efficiency on all global cellular bands, it is an ideal solution for any device requiring reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint.

The Apex TG.30 has a robust, UV-resistant housing that has been designed so the TG.30 can be used in challenging of environments. The swivel hinge mechanism allows the antenna itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems for when other TG.30 antennas are used on the same device.

This patented antenna is available in both white and black versions, and it is also available with straight and right-angle connectors. For more information, contact your regional Taoglas customer support teams.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Hinged
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) None
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain 2
Length (mm) 49
Width (mm) 10
Height (mm) 186
Weight (g) 5.5
