Barracuda – 600MHz – 8GHz Wideband 5G/4G/Wi-Fi (including Wi-Fi 6) Omnidirectional 7dBi Wall/Pole Mount Antenna

OMB.6960.B07F21

Covers all 5G sub 6GHz and 4G LTE bands, 600MHz-8GHz
Also covers Wi-Fi Including Wi-Fi 6/Extended Wi-Fi Frequencies
High efficiency, omnidirectional coverage
Up to 7dBi Peak Gain
IP67 Rated Enclosure
Wind resistant up to 200km/h
Connector: N-Type Female
Radome Dimensions: Ø26 x 300mm
Bracket Dimensions: 60 x 40 x 65mm
RoHS & Reach Compliant

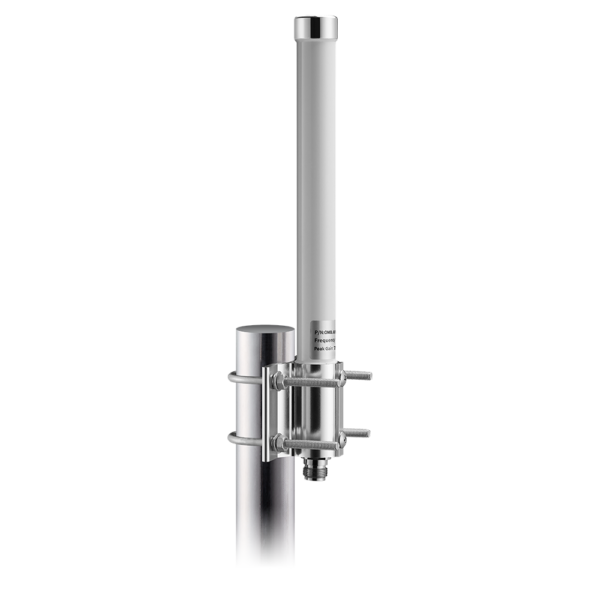

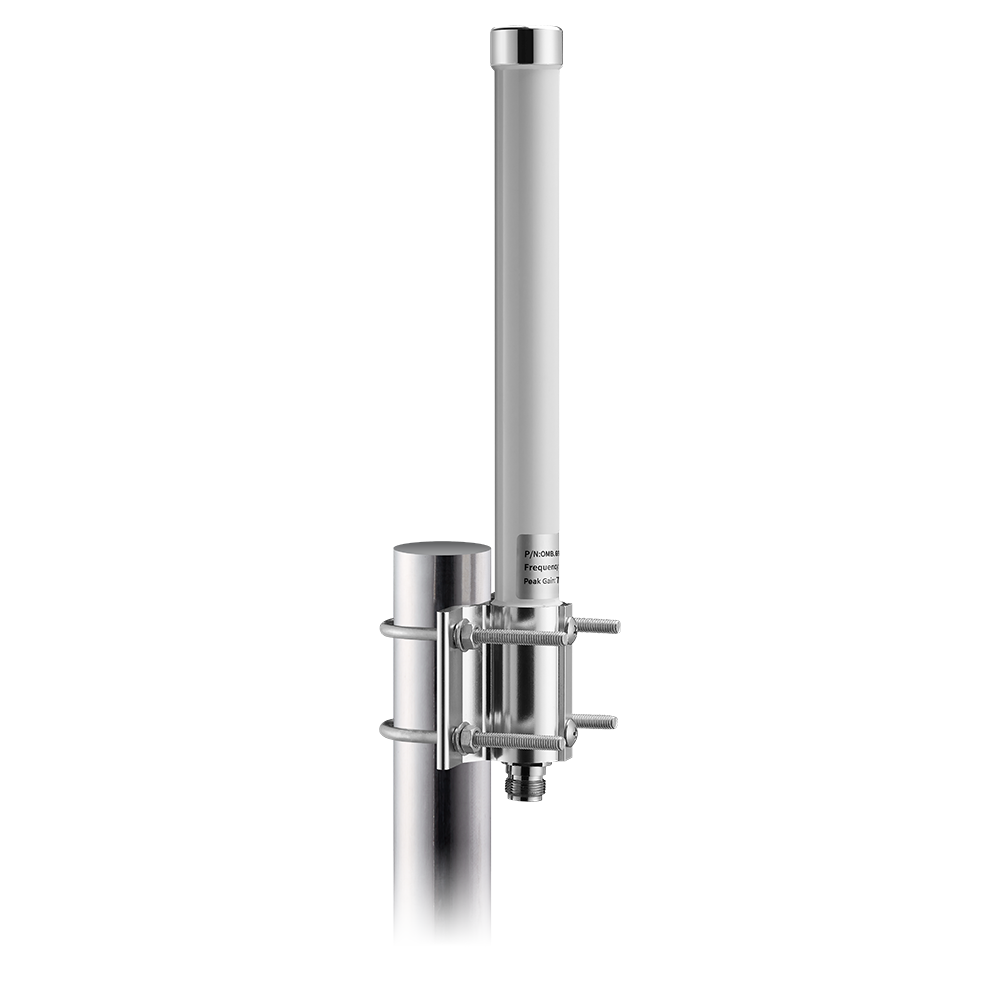

Image OMB.6960.B07F21

OMB.6960.B07F21

Barracuda – 600MHz – 8GHz Wideband 5G/4G/Wi-Fi (including Wi-Fi 6) Omnidirectional 7dBi Wall/Pole Mount Antenna

Overview

600MHz – 8GHz Wideband 5G/4G/Wi-Fi (including Wi-Fi 6) Omnidirectional 7dBi Wall/Pole Mount Antenna

The Taoglas Barracuda OMB.6960.B07F21 is a 5G/4G outdoor antenna, operating between 600MHz and 8GHz, covering all worldwide sub 6GHz 5G and 4G LTE bands and also the above 6GHz Extended Wi-Fi/Wi-Fi 6 Frequencies. The OMB.6960 has excellent efficiency and gain at the 3.4-4.2GHz bands used for both C-band and CBRS frequency applications.

With up to 7 dBi peak gain, the collinear dipole array antenna provides omnidirectional coverage with great efficiency. The omnidirectional radiation pattern is uniform in the azimuth providing long distance coverage, thus minimizing the number of nodes needed for a radio network.

Typical Applications Include:
– Remote Monitoring
– Security
– Public Safety

The UV resistant, IP67 rated fiberglass housing enables this OMB series antenna to be used in harsh environments, making it more robust, vandal resistant and safer than traditional whip antennas. With a compact overall dimension of 340mm in height and 70mm wide, an integrated bracket allows it to be mounted conveniently and unobtrusively on a wall or pole. Connectivity is made via the rugged, industry standard, N-Type Female connector.

Covering all worldwide sub 6GHz 5G and LTE bands, the OMB.6960 it is perfect for setting up cellular mesh networks and suitable applications including remote asset monitoring and connected enterprise solutions. For further information or customized solutions, contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type N Type
Cable Type None
Connector Body Style Straight
Polarity Vertical
Frequency Range 600-8000MHz
Connector Polarity Normal
Cable Length (mm) None
Packaging Tube, Carbon
VSWR 0
IP Rating IP67
RoHS Yes
Gain 11.4
Length (mm) 28
Width (mm) 28
Height (mm) 300
Weight (g) 300
