Omni-Directional Radiation Pattern
Collinear
8dBi Peak Gain
Robust Design for all Weather Operation
Length 553mm
Weight 380g
IP65 Waterproof
N-Type Female Connector
Wall/Pole Mount Bracket Included
RoHS Compliant

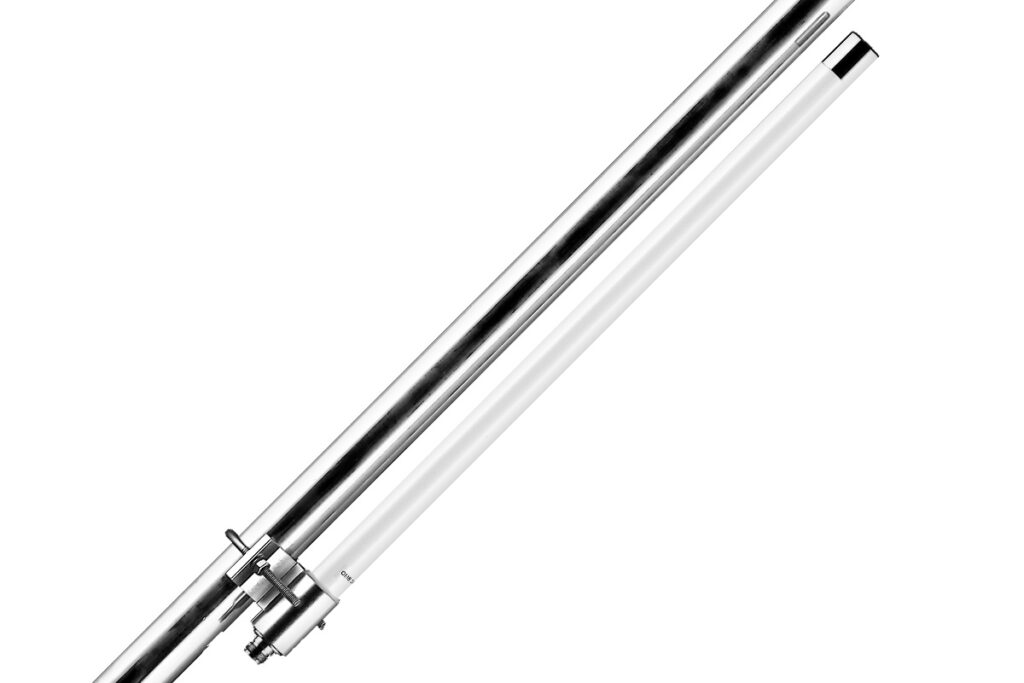

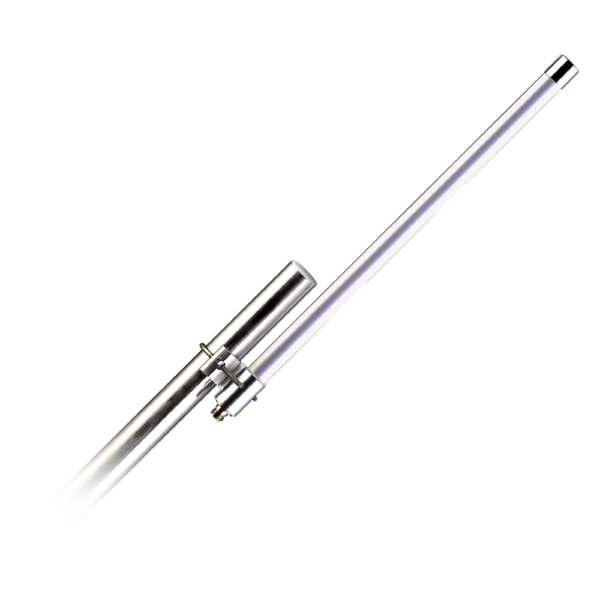

Barracuda OMB.242 2.4GHz Omnidirectional Outdoor Antenna
OMB.242.08F21
OMB.242.08F21
Barracuda OMB.242 2.4GHz Omnidirectional Outdoor Antenna
Overview
This antenna is professionally designed with the highest industrial quality. The products have good water resistance. Great care has been taken in the manufacture and assembly of the internal copper elements so they can bear a high input power.
Typical Applications
- 2.4 – 2.5 GHz ISM Band
- IEEE 802.11b, 802.11g, 802.11n Wireless LAN
- Directional and multipoint applications
- Bluetooth®
- Public Wireless Hotspot
- Wi-Fi®, RFID
- Wireless Video Systems
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Wi-Fi®/Bluetooth® |
| Wi-Fi Bands | 2.4GHz |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 70 |
| Width (mm) | 50 |
| Height (mm) | 553 |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 2.4GHz |
| Connector Polarity | Normal |
| VSWR | 2 |
| Weight (g) | 380 |
| RoHS | Yes |
| Gain (Max) | 6.1 |
