Bolt A.93 High Gain GPS / GLONASS / GALILEO / BeiDou Permanent Mount Timing Antenna

A.93.A.101111

28 dB LNA Gain
Rejection 80 dB Between 10 – 1400 MHz
60 dB Between 1820 – 3500 MHz
Ceramic Patch Antenna Element
Permanent Mount, IP67 Waterproof Rated Enclosure
Wide Input voltage +1.9V to +12V
Lightning Induced Surge Protection IEC 61000-4-5 (Class 4)
Cable: 1m RG-174
Connector: SMA(M)
RoHS & Reach Compliant

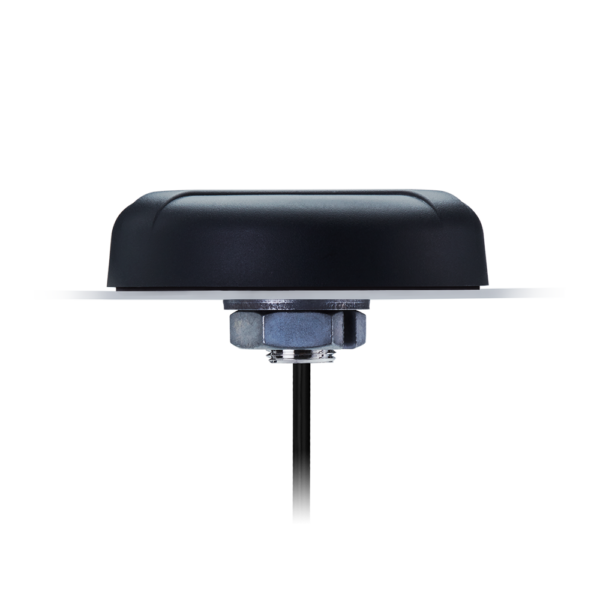

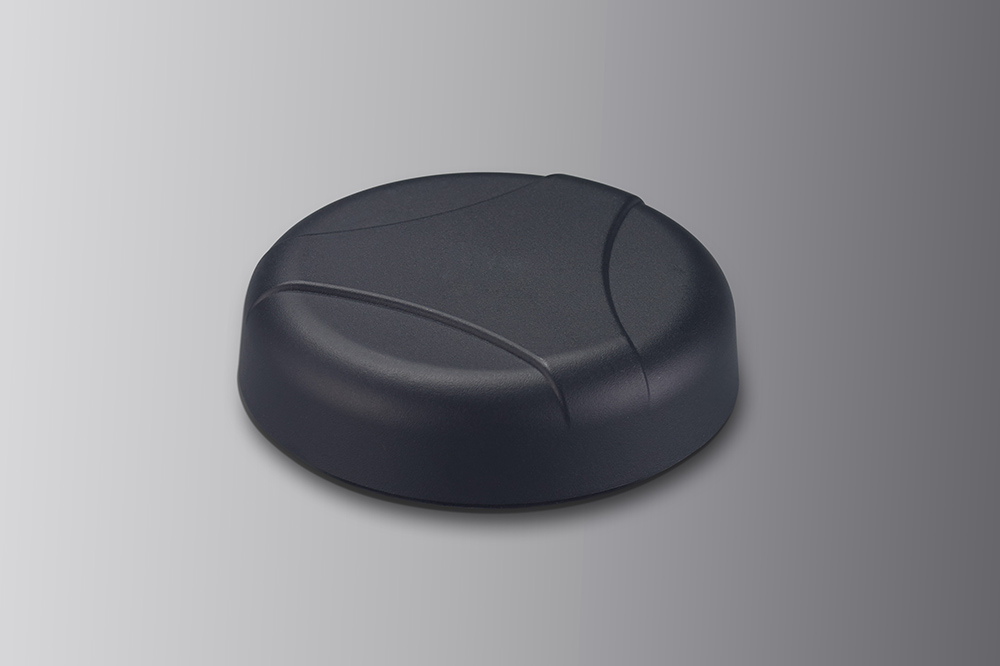

Image A.93.A.101111

A.93.A.101111

Bolt A.93 High Gain GPS / GLONASS / GALILEO / BeiDou Permanent Mount Timing Antenna

Overview
High-Gain, High-Rejection Active GPS Timing Antenna with Integrated Lightning Induced Surge Protection

The Bolt A.93.A is a best in class high rejection timing antenna featuring high gain, excellent out-of-band rejection and integrated protection against lightning-induced surges. It comes in a compact external permanent mount enclosure that is IP67 rated and UV resistant. The A.93.A has greater than 28 dB LNA gain and excellent out-of-band rejection, characteristics that make it ideal for GPS/GLONASS/BeiDou timing applications where the antenna will be placed near transmitters, such as cellular, Wi-Fi, Bluetooth, etc.

The integrated filters feature outstanding rejection across all non-GNSS frequencies to prevent overdriving or damaging the GNSS receiver from nearby transmitters. At the commonly used LTE frequencies between 700MHz-1000MHz, the A.93 provides greater than 80 dB of rejection and between 1820MHz-3500MHz, it has greater than 60 dB of rejection.

Even with the superb out of band rejection, the A.93 maintains a very low noise figure of less than 2.2 dB. This low noise figure minimizes overall signal quality degradation typically caused by losses in transmission lines. The A.93 includes integrated protection against lightning-induced surges (IEC 61000-4-5, Class 4), thus removing the need for expensive external solutions.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42-1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 28
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 94.3
Width (mm) 94.3
Height (mm) 25.4
Weight (g) 233
