CC.001 SMD C-Clip Connector

CC.001

SMD C-Clip Connector with 1mm Working Height
Board-to-Antenna Application
SMD Footprint 3.2*1.7 mm
Nominal Working Height 1mm
RoHS and REACH Compliant

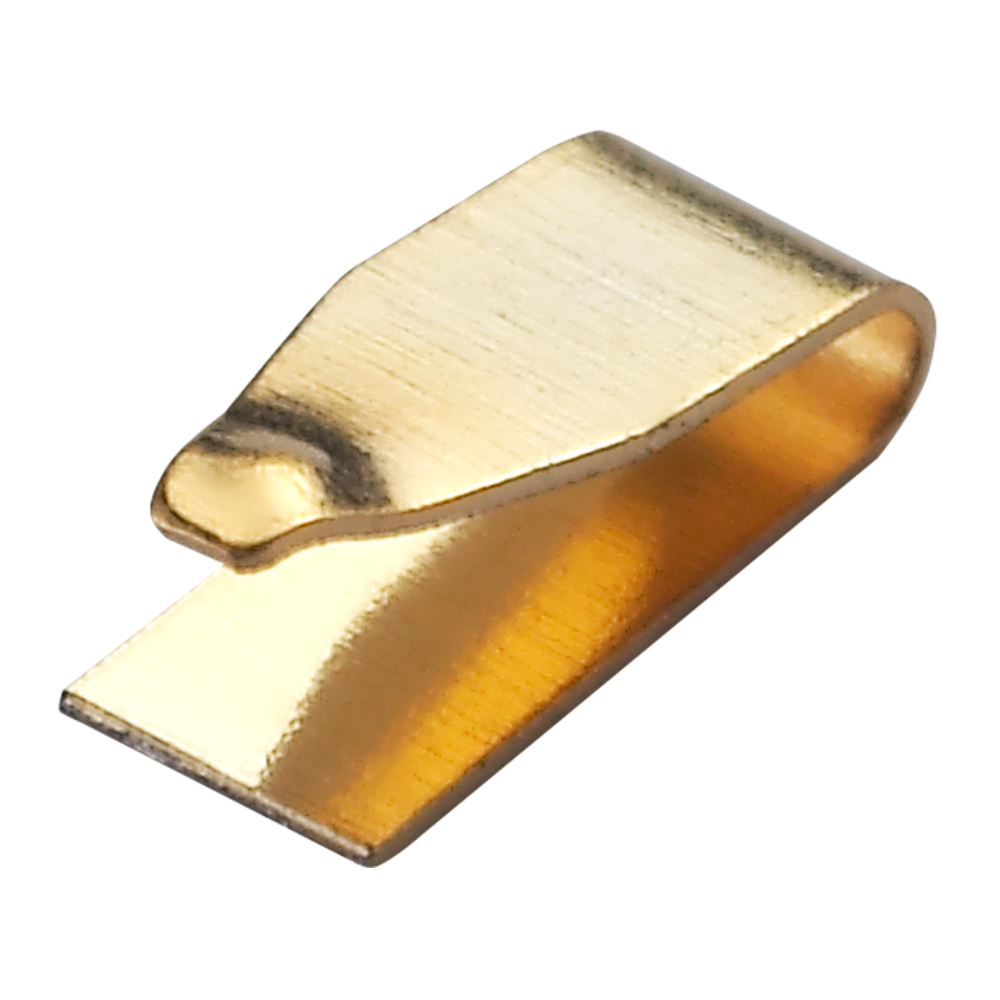

Image CC.001

CC.001

CC.001 SMD C-Clip Connector

Overview

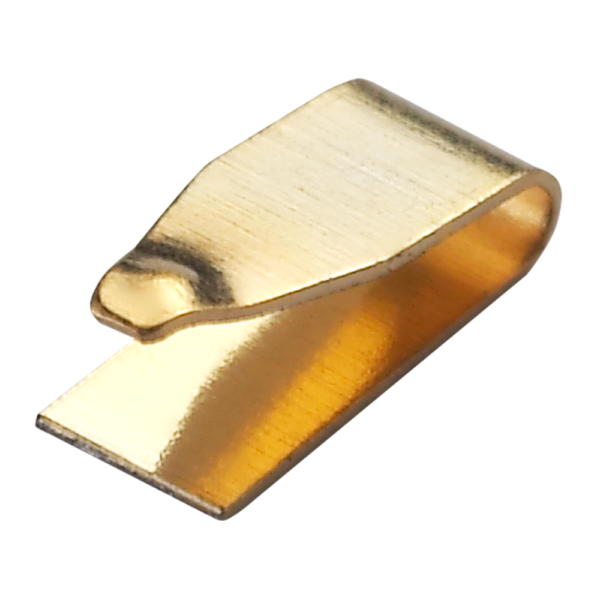

The Taoglas CC.001 C-Clip connector is designed to be SMT mounted on a PCB as a contact bridge to antenna pads. This allows the PCB or Flex PCB antenna to be connected to the system via the C-Clip, eliminating the need for cables and coaxial RF connectors. The spring contact provides for a positive electrical connection. Working height of the CC.001 is 1.0mm. The recommended footprint dimension is 3.2*1.7mm.

Technical Specification
Name Value
Connector Style Straight
Connector Type Contact Clip
Contact Termination PCB
Shield Termination N
Impedance 50
Mounting Type SMD/SMT
Frequency - Max (GHz) 8GHz
Number of Ports 1
Housing Color Gold
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
