Cyclops WM.80.B 169MHz 0dBi Wall Mount Flexible Whip


Cyclops Wall Mount Flexible Whip Monopole
Peak Gain on all Bands 0dBi with Bracket
Wide-band High Efficiency 40% with Bracket
Flexible Inner Steel Core Whip
Completely IP67, Robust Structure, Aesthetic
Cable is hidden Internally
Whip Height 278mm

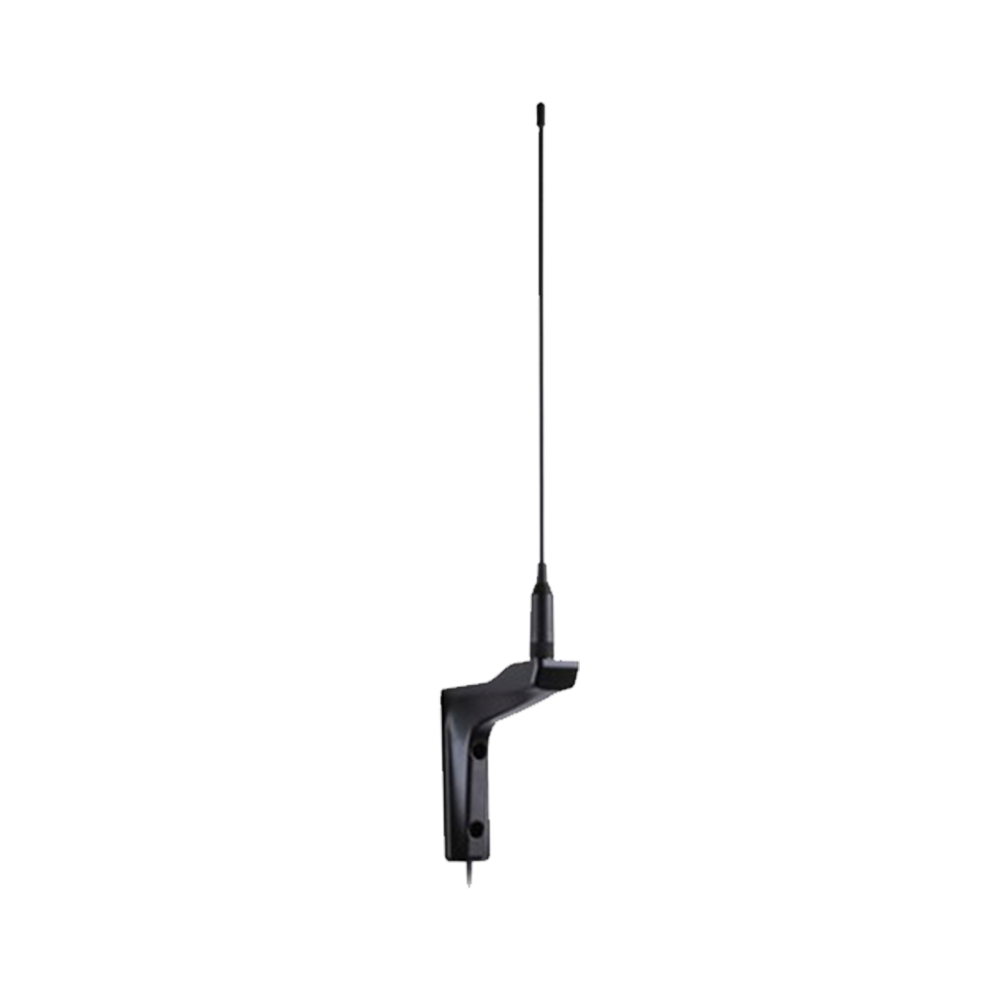

Image WM.80.B.305111


Cyclops WM.80.B 169MHz 0dBi Wall Mount Flexible Whip


Cyclops WM.80.B

The WM.80 is a 0dBi 169MHz ISM band 1/4 wavelength monopole flexible whip antenna with omni- directional pattern optimized in the azimuth for wide coverage range in typical 169 MHz applications such as Wireless M-Bus metering. It also finds its usage in remote asset monitoring  applications, alarms, paging systems and private mobile radio services.

This antenna delivers wider coverage areas and more reliable connections for professional customers in the automotive, industrial industries. The whip is made up of a flexible inner steel core covered by TPU so extremely resistant to collisions and maintaining its original shape and RF performance.

The bracket allows complete concealment of the cable for a more secure integration and cleaner installation. The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism. The standard version comes with 3 metres extremely low loss CFD-200 cable (0.3dB against 0.7dB for RG58) to allow for flexibility of placement. The cable and connector can be completely customized, the whip itself can also be changed for different frequency bands or gain requirements.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 169MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP65
RoHS Yes
Gain (Max) 2.28
Length (mm) 16
Width (mm) 16
Height (mm) 278
Weight (g) 330
