Discone One – 5G/4G – 400-6000MHz Wideband Omnidirectional Antenna

DCN.01.035111

High efficiency antenna covering 400-6000MHz
Covers all worldwide cellular 5G/4G Cat-M/ LTE-M and NB-IoT bands

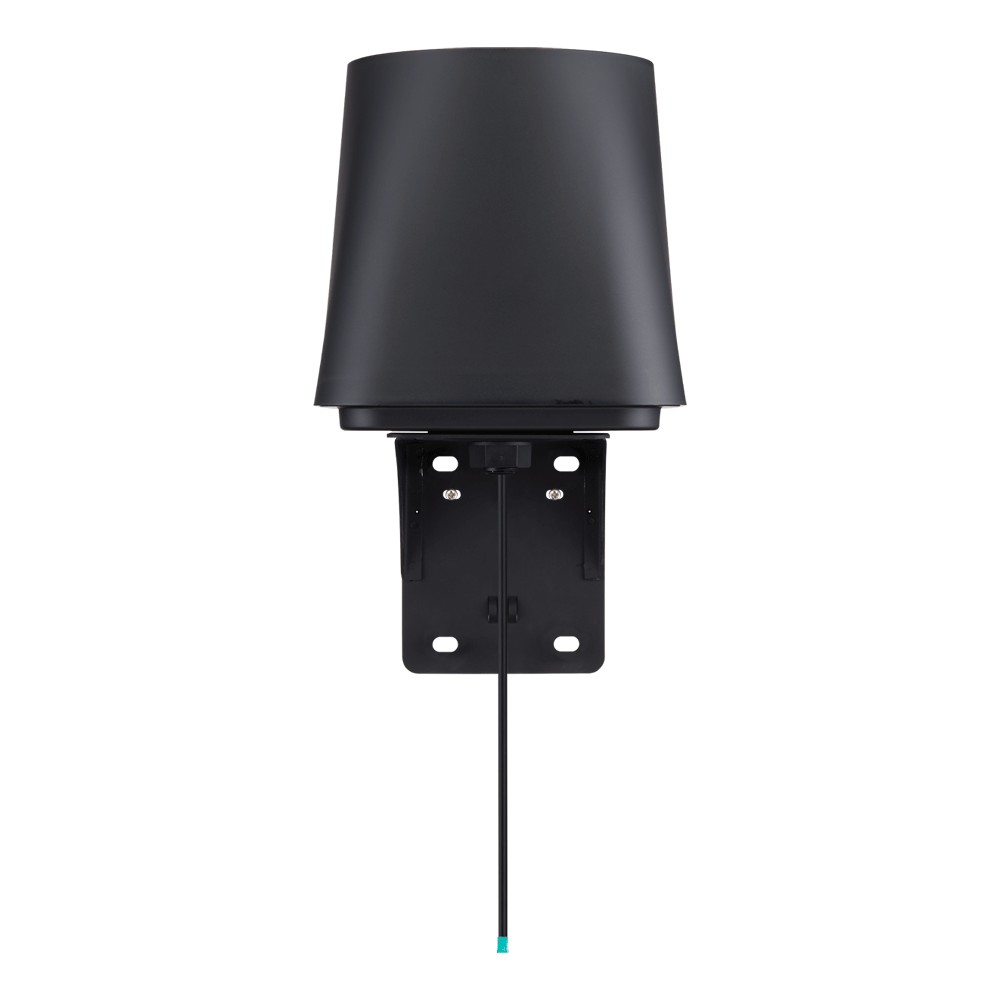

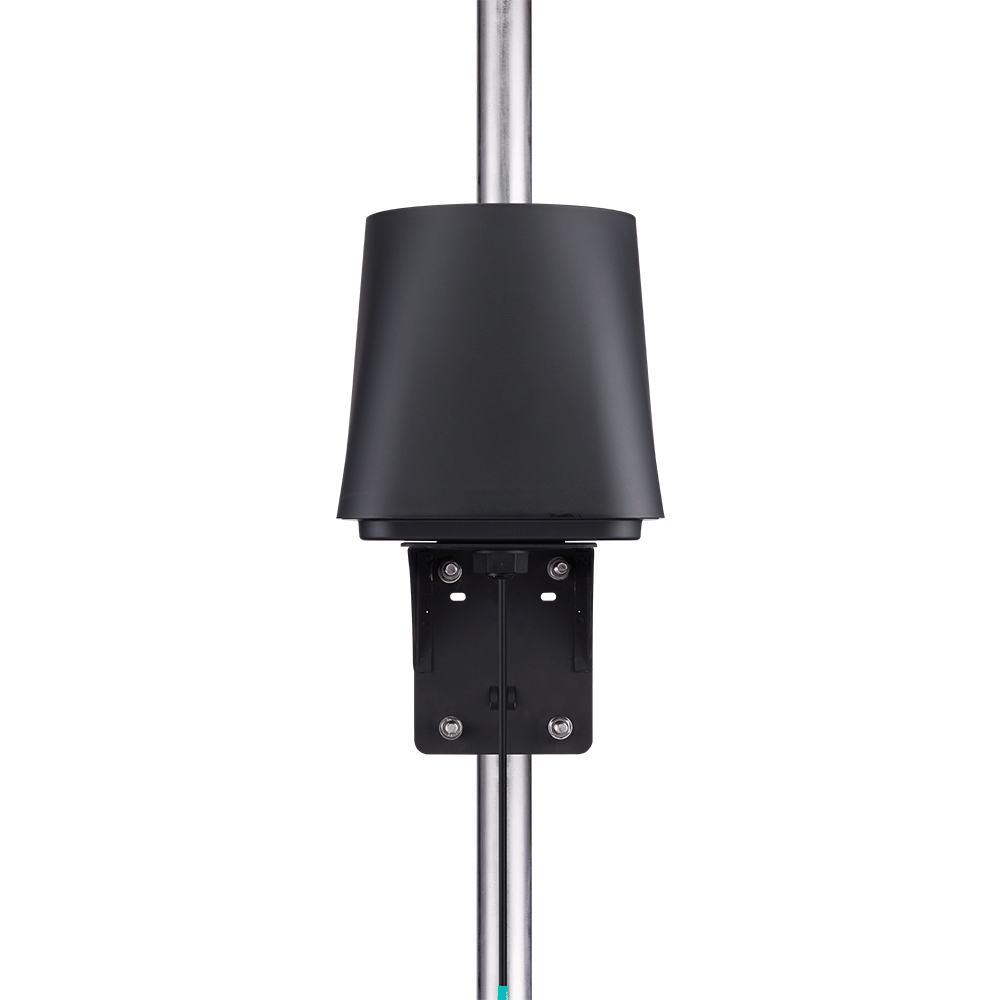

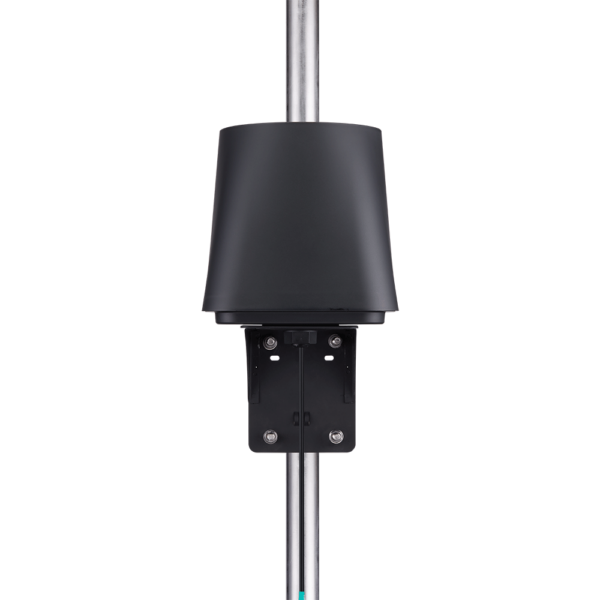

Permanent / Wall / Pole mount antenna
IP67 rated waterproof enclosure
Cable: 300mm TGC-200
Connector: SMA(M)ST
Dimensions: 200*200*203mm
RoHS and Reach Compliant

Image DCN.01.035111

DCN.01.035111

Discone One – 5G/4G – 400-6000MHz Wideband Omnidirectional Antenna

Overview

The Taoglas Discone One is a wideband 400-6000MHz, omnidirectional Discone antenna

The Taoglas Discone One DCN.01 is a wideband, omnidirectional antenna that has been expertly engineered to cover all worldwide 5G and 4G bands, including all sub-6GHz deployments across the 400MHz to 6000MHz spectrum. It is designed primarily for use with 5G/4G modules and devices that require high efficiency – the Discone One boasts over 50% across the entire spectrum. With a high peak gain of up to 6.6dBi, it delivers best-in-class throughput on all major cellular bands worldwide.

It is innovatively designed to deliver reliability on new, dedicated mission-critical communications bands between 400-500 MHz. Additionally, it covers extended 4G, band 71, and all 5G NR Sub 6GHz bands while also covering 3G/2G bands to allow for fallback when 5G/4G isn’t available – keeping applications and devices connected when it’s most needed.

Typical applications include:

– Mission Critical Smart Grid Applications
– Remote Asset and Pipeline Monitoring
– Next Generation OEM Automotive Connectivity
– First Responder and Emergency Services
– Military and Defense Applications

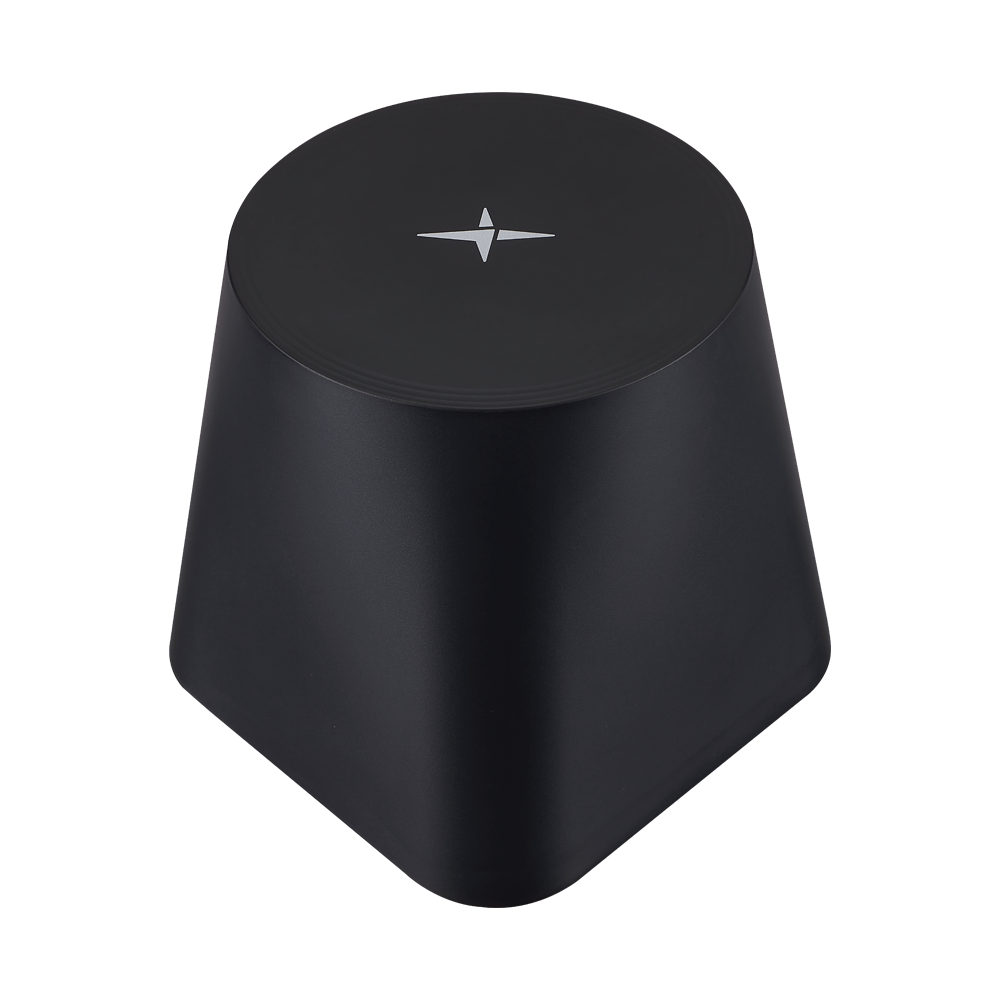

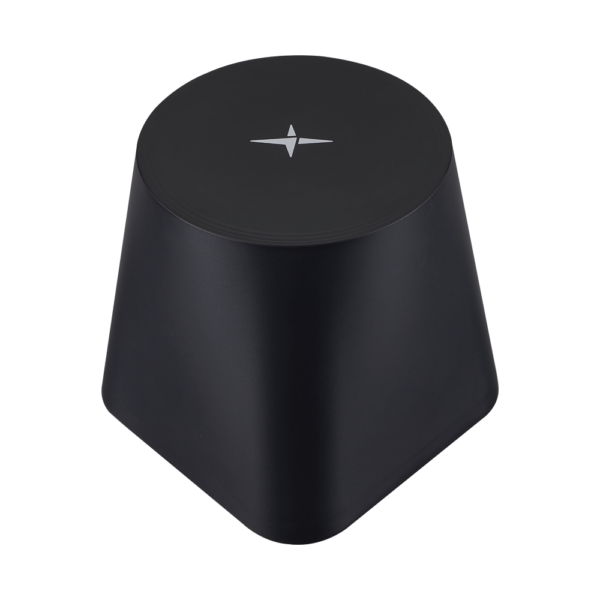

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 400-6000MHz, the Discone One is a fantastic solution for wideband cellular applications.

5G applications demand high-speed data uplink and downlink. High efficiency and high gain antennas are necessary to achieve the required signal-to-noise ratio and throughput required to solve these challenges. Low-loss TGC-200 cable is used to keep efficiency high over long cable lengths. The cable length and connector types are customizable. Contact your regional Taoglas customer support team for more information.

Video
Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 400-6000MHz
Connector Polarity None
Cable Length (mm) 300
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.4
Length (mm) 200
Width (mm) 200
Height (mm) 203
Weight (g) 550
