FKDMIG – Dual FAKRA Code I Beige Plug for CFD-200/TGC-200 Cable

FKDMIG

Optimized for automated manufacturing
Full Series of colours available
RF performance up to 6GHz
Primary and Secondary Locks
Tulip contact/ anti-stubbing
Housing inner ring / anti-scooping
Fully compliant with USCAR requirements
RoHS and REACH Compliant

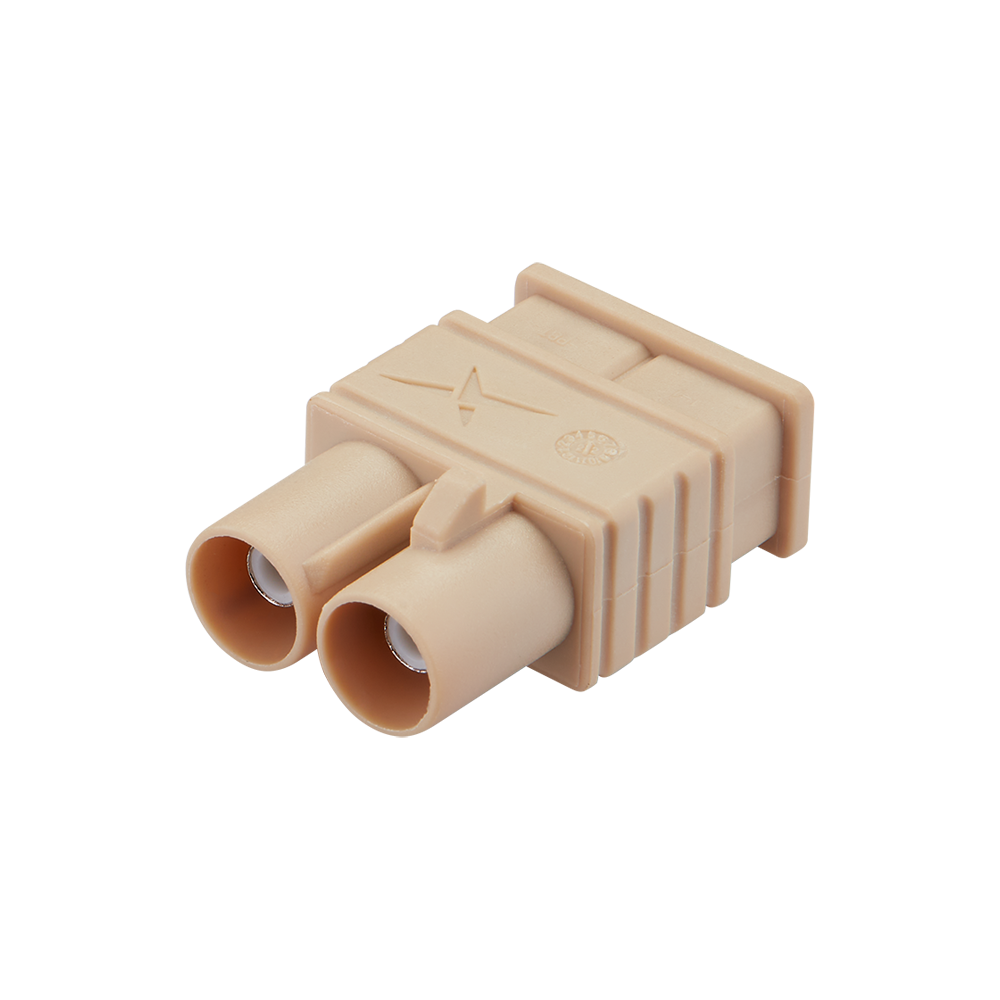

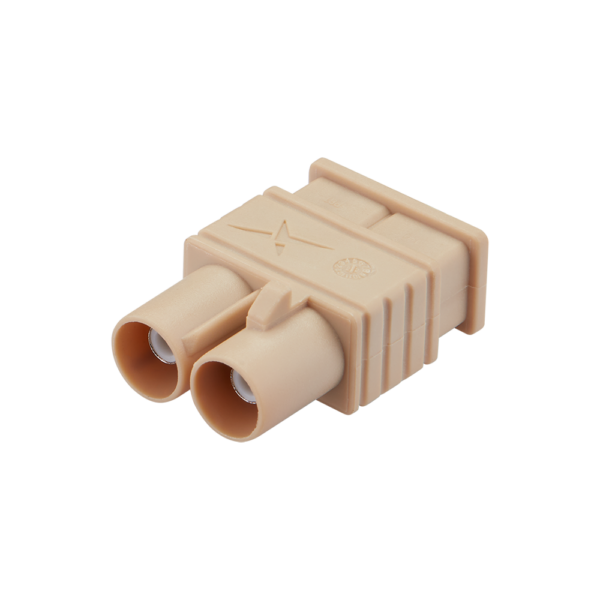

Image FKDMIG

FKDMIG

FKDMIG – Dual FAKRA Code I Beige Plug for CFD-200/TGC-200 Cable

Overview

Dual FAKRA Code I Beige Plug for CFD-200/TGC-200 Cable

Taoglas is a leading provider of advanced technology for a smarter world. Our solutions include advanced components and technologies and help OEMs, enterprises, and communities to resolve the complexities of bringing digital transformation solutions to market quickly and cost-effectively.

Focused on best-in-class, high-performance antenna and RF design with advanced positioning, imaging, audio and artificial intelligence technologies, Taoglas understands the importance of high-performance connections.

Taoglas Dual FAKRA connectors utilize a metal SMB connector embedded within a plastic enclosure that is colour-coded and keyed for easy identification and assembly. They have been designed with swivel-style housing for ease of installation. They are designed for high-volume production, automated harness assembly and provide superior performance.

They are manufactured with the highest precision and are thoroughly tested to meet USCAR-2 and USCAR-17 standards. All Taoglas connectors are RoHS & REACH compliant. The Dual FAKRA Code I Beige connector is typically used for Wi-Fi connections and is available in both Jack and Plug and for multiple cable diameters.

Technical Specification
Name Value
Connector Style Straight
Connector Type FAKRA CODE I Beige
Contact Termination Cable
Shield Termination M
Impedance 50
Mounting Type Cable Mount
Cable Group TGC-200
Frequency - Max (GHz) 6
Number of Ports 2
Housing Color Beige
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
