Evaluation Board for 25*25*4mm WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna


Evaluation Board for Passive 2.4/5.8GHz Ceramic Patch Antenna
2400~2500MHz Peak Gain 6dBi
5150~5850MHz Peak Gain 8dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimensions: 70*70mm
Patent Pending

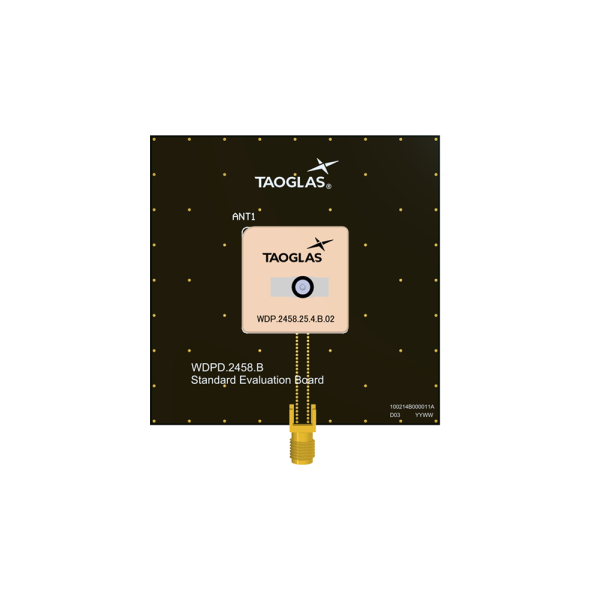

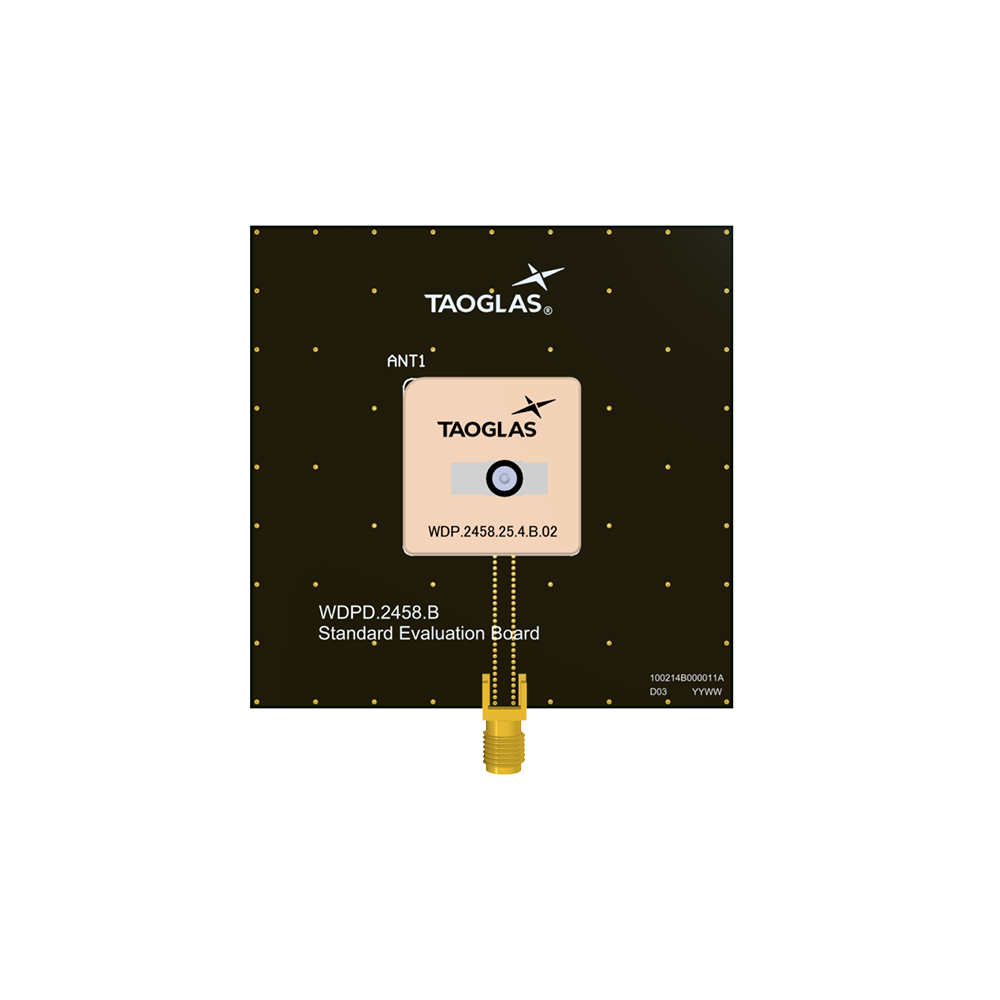

Image WDPD.2458.B


Evaluation Board for 25*25*4mm WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna


Evaluation Board for WDP.2458.25.4.B.02 2.4/5.8GHz Ceramic Patch Antenna

This unique patent-pending high gain, high efficiency embedded ceramic patch antenna is designed for professional Wi-Fi dual-band IEEE 802.11 applications. It is mounted via pin and double-sided adhesive. The passive patch offers stable high gain response from 4 dBi to 6dBi on the 2.4GHz band and from 5dBi to 8dBi on the 5 ~6 GHz band. Efficiency values are impressive also across the bands with on average 60%+. The WDP.25’s high gain, high-efficiency performance is the perfect solution for directional dual-band WiFi application which need long-range but which want to use small compact embedded antennas. The much higher gain and efficiency of the WDP.25 over smaller less efficient more omni-directional chip antennas (these typically have no more than 2dBi gain, 30% efficiencies) means it can deliver a much longer range over a wide sector.

Typical applications

  • Access Points
  • Tablets
  • High definition high throughput video streaming routers
  • High data MIMO bandwidth routers
  • Automotive
  • Home and industrial in-wall WiFi automation
  • Drones/Quad-copters
  • UAV
  • Long range
  • WiFi remote control applications

The WDP patch antenna has two distinct linear polarizations, on the 2.4 and 5GHz bands, increasing isolation between bands. Custom tuned versions for different ground-planes and housing environments can be made subject to a minimum order quantity. Contact your regional Taoglas office for support to integrate and test this antenna performance in your device.
