Evaluation Board for Accura UWB UWC.01 6-8GHz Ultra Wideband SMD Chip Antenna

UWCD.01

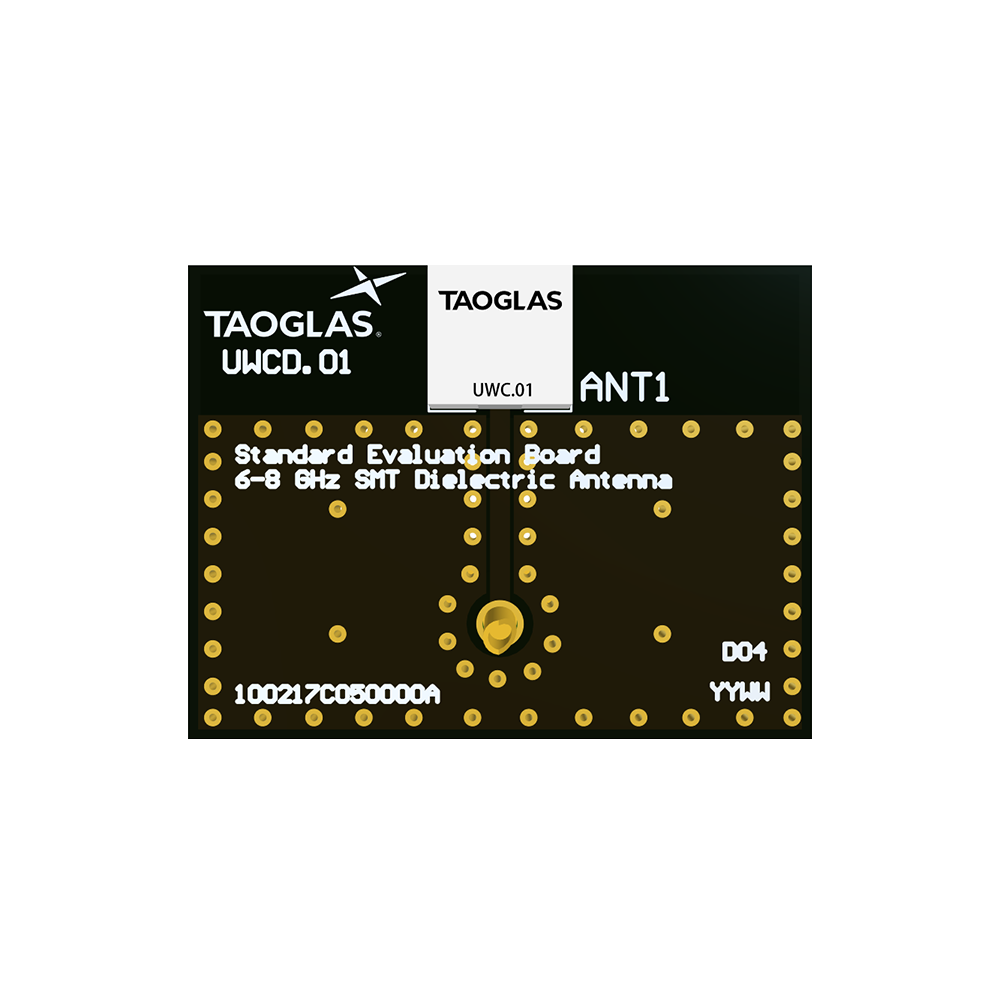

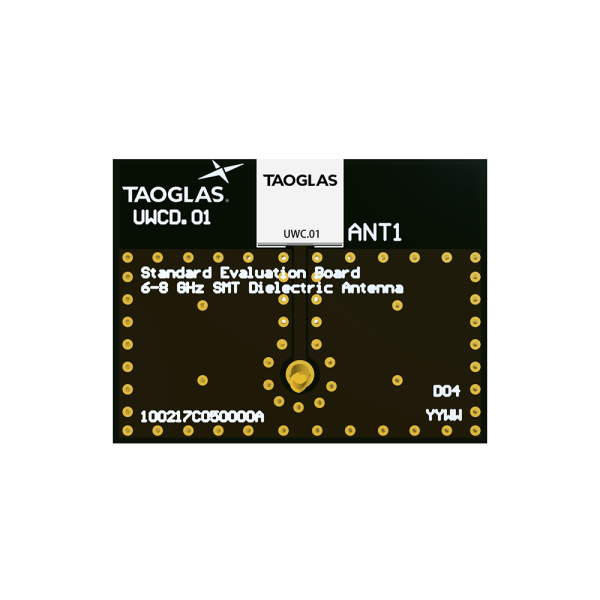

Evaluation Board for SMD Chip UWB Antenna
For European and USA UWB Applications
In Channels 5-7
Frequency: 6.0-8GHz
Evaluation Board Dimensions: 25*19mm
RoHS and REACH Compliant

Image UWCD.01

UWCD.01

Evaluation Board for Accura UWB UWC.01 6-8GHz Ultra Wideband SMD Chip Antenna

Overview

Evaluation Board for Accura UWB UWC.01 6-8GHz SMD Chip Antenna

The UWC.01 chip antenna, at 5.5*5.5*2 mm, is a small form factor Ultra-Wideband (UWB) antenna with high efficiencies across the pulsed UWB communications operational bands. It is mounted to a PCB via standard SMT reflow process. It enables designers to use only one antenna that covers all common UWB commercial bands, namely bands, 5, 6 and 7 simultaneously. The UWC.01 antenna is a durable ceramic antenna that has a peak gain of 4dBi, an efficiency of more than 50% across the bands and is designed to be mounted directly onto a PCB. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product.

Like all such antennas, care should be taken to mount the antenna at least 3mm from metal components or surfaces, and ideally 5mm for best Radiation efficiency. Minimum recommended ground plane size is 25 mm x 13 mm, and antenna to ground clearance is fixed to 0.3 mm and should not be changed (please see section 7. Application Note). Ultra-Wideband (also known as UWB) is a low power digital wireless technology for transmitting large amounts of digital data over a wide spectrum of frequency bands typically spanning more than 500MHz with very low power for short distances. The low power requirements of UWB mean increased battery life of sensors and tags leading to a reduction in overall operational costs.

Taoglas has developed various innovative and new-to-market flexible embedded UWB antennas designed for seamless integration on plastics and using highly flexible micro-coaxial cable mounting while achieving high performance where space is limited. Taoglas UWB antennas have been designed for use with the recently launched Decawave ScenSor DW1000 module and are also compatible with any other UWB sensor modules on the market.
