Evaluation Board for CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna

CGGBPD.35.B

Evaluation Board for Passive GPS/GLONASS/GALILEO/BeiDou Patch Antenna
BeiDou 1561MHz / GPS-GALILEO 1575MHz / GLONASS 1602MHz
Gain BeiDou 4.0dBi / GPS-GALILEO 3.0dBi / GLONASS 4.5dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimensions: 70*70mm

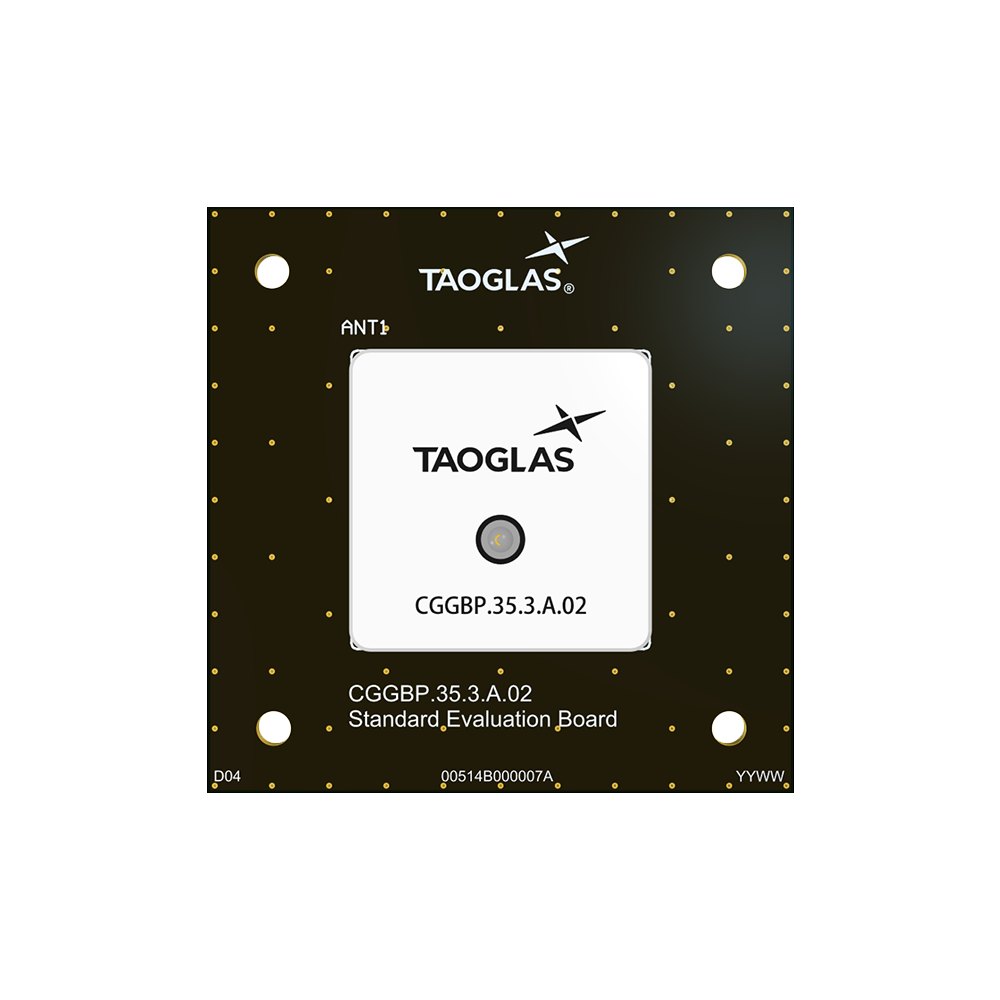

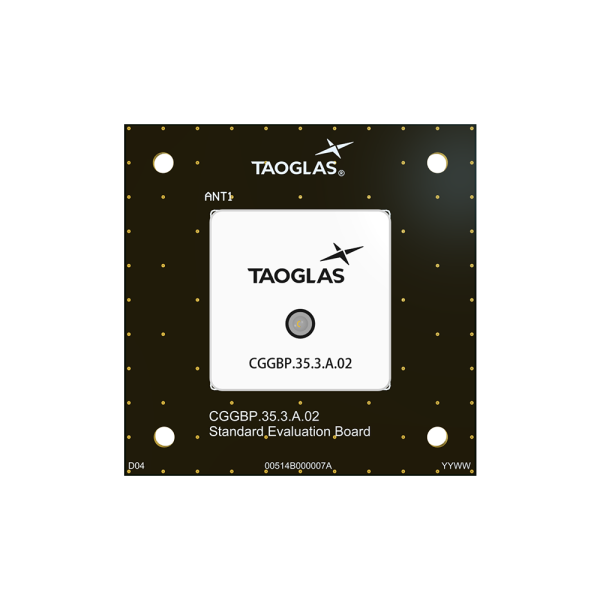

Image CGGBPD.35.B

CGGBPD.35.B

Evaluation Board for CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna

Overview

Evaluation Board for CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna

This CGGBP.35 35mm*35mm embedded ceramic GPS/GLONASS/GALILEO/BeiDou patch antenna has a wide band of operation, leading to excellent gain and radiation pattern stability on all three GNSS system bands. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix.

The patch is mounted via pin and double-sided adhesive. While the antenna will work very well in most device environments (Note cannot be covered with metal enclosure), tuning and further optimization of this antenna to different ground-planes and enclosures can be done if required, also including a pin length change. These changes would be subject to possible NRE and a minimum order quantity. Contact your local Taoglas sales office for more details.
