AGGBP.SL.35A – GPS/GLONASS/Galileo/BeiDou 35mm Active Patch with SAW/LNA, I-PEX MHF® I (U.FL)

AGGBP.SL.35A.07.0060A

Full GPS-GLONASS-GALILEO-BeiDou Coverage
14.5 dB One-Stage LNA
Ceramic Patch Element
Front-End SAW Filter to Reduce Out of Band Interference
Wide Input voltage +1.8V to +5V
60mm ø1.13 I-PEX MHF® I (U.FL comp)
RoHS & REACH Compliant

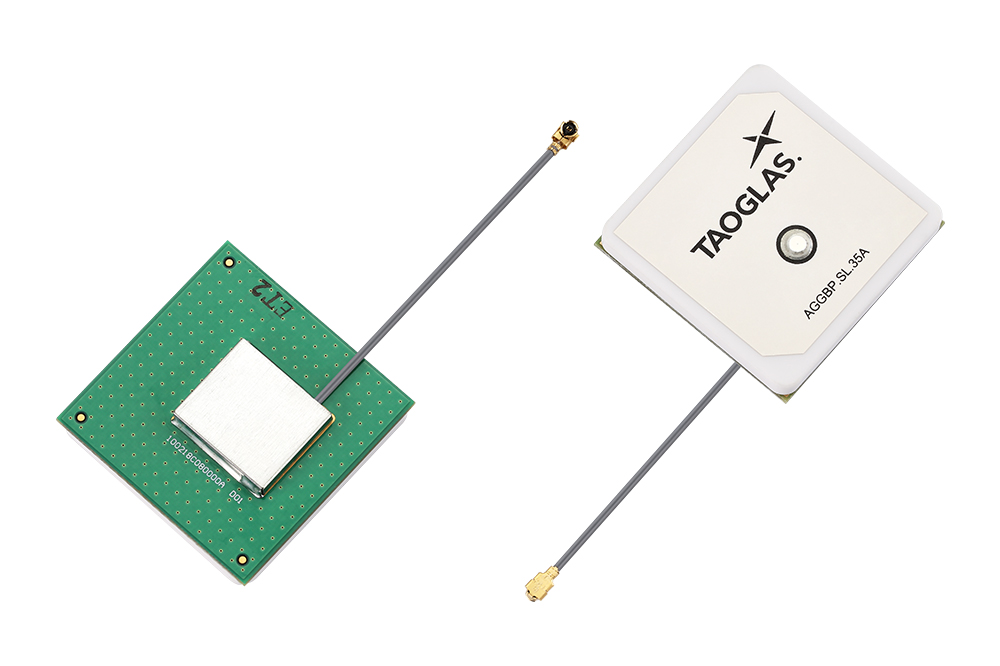

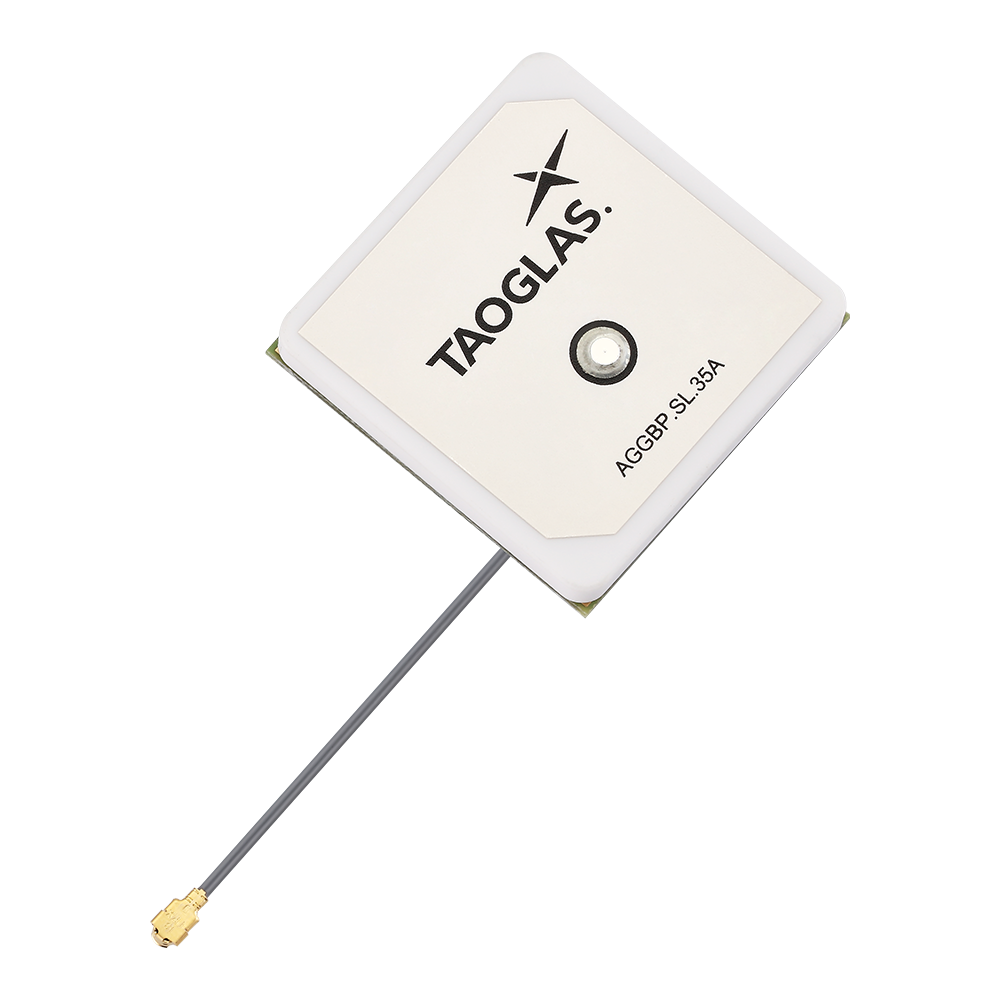

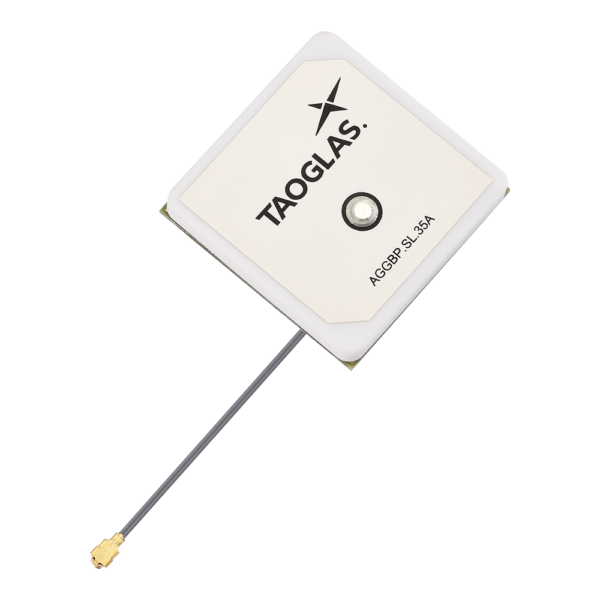

Image AGGBP.SL.35A.07.0060A

AGGBP.SL.35A.07.0060A

AGGBP.SL.35A – GPS/GLONASS/Galileo/BeiDou 35mm Active Patch with SAW/LNA, I-PEX MHF® I (U.FL)

Overview
GPS/GLONASS/Galileo/BeiDou 35mm Active Patch with SAW/LNA

The Taoglas AGGBP.SL.35A.07.0060A is an internal GPS/GLONASS/GALILEO/BeiDou active patch antenna with 14.5 dB LNA gain and very good out-of-band rejection. These characteristics make the AGGBP.SL.35A ideal for applications where the antenna will be placed near transmitters, such as cellular, Wi-Fi, Bluetooth, etc. within your enclosure.

Typical Applications include:
  • Navigation
  • Transportation
  • Asset Tracking

The front-end SAW filter features very good rejection across all non-GNSS frequencies to prevent overdriving or damaging your GPS receiver from nearby transmitters. At the commonly used LTE frequencies between 700MHz-850MHz, the AGGBP.SL.35A features greater than 35dB of rejection. Between 1700MHz-1910MHz, the AGGBP.SL.35A features greater than 19 dB of rejection. If even higher rejection is required for your application, please refer to the Taoglas AGGBP.SLS.35A active patch antenna.

Even with the very good out of band rejection, the AGGBP.SL.35A maintains a very low noise figure of 1.9 dB at 1575.42MHz. This low noise figure minimizes the overall signal degradation typically caused by losses in transmission lines.

For further optimization to customer-specific device environments, custom-tuned patch antennas can be supplied for a MOQ. For more details please contact your regional Taoglas Customer Support team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 15
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1559MHz - 1610MHz
Connector Polarity Normal
Cable Length (mm) 60
Packaging Carton
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 35
Width (mm) 35
Height (mm) 8.1
Weight (g) 21
